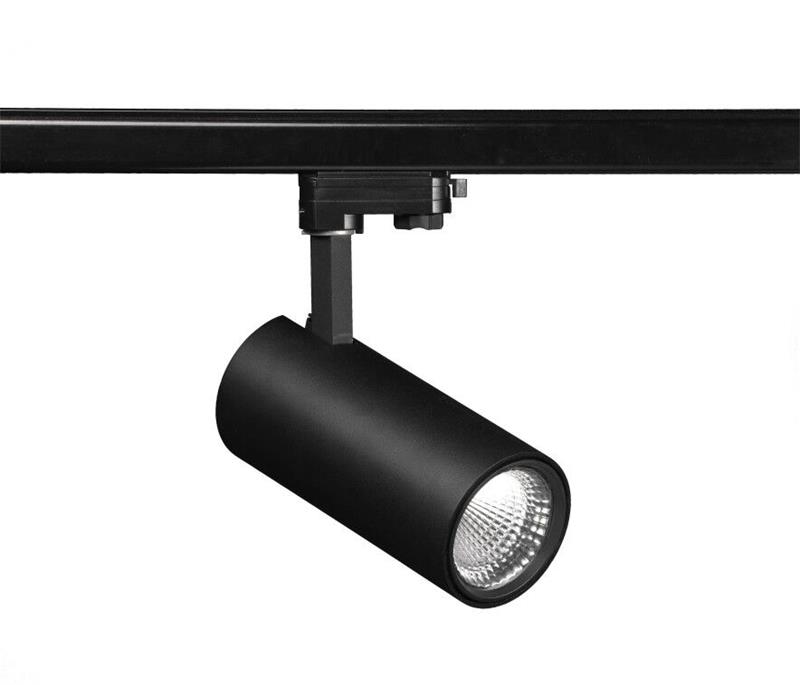

Bluetooth mesh dimmable cct adjustable led track lighting
- General Information
- Feature
- Installation
- Download
General Information
| Power | 30W |
| Housing Material | Die-casting Aluminum |
| Housing Color | Black/White |

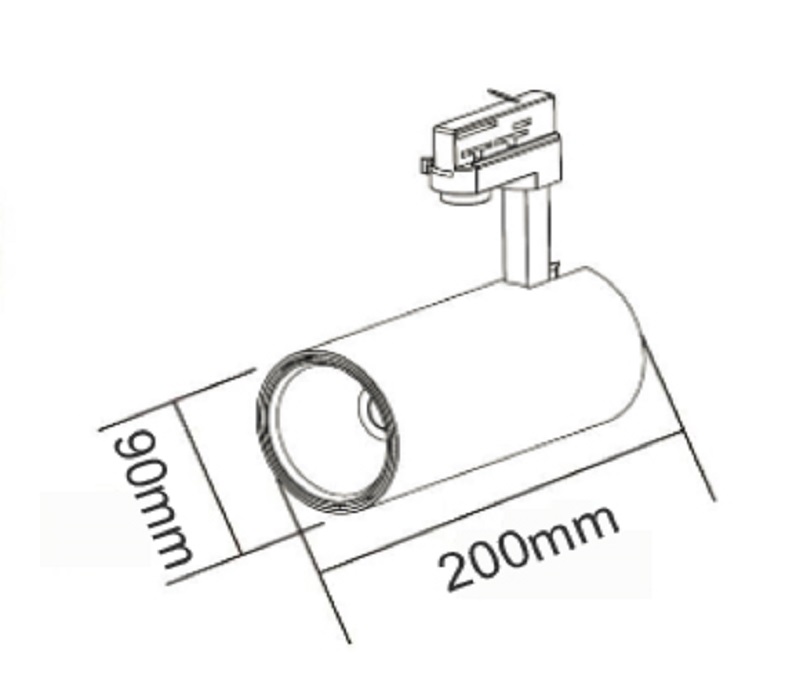

| Housing Size | 90x200mm |
| CCT | 2700-5700k tunable |
| Driver Brand | Dadou |
| Beam Angle | 15/24/38/60° Reflector |
| UGR | 19 |
| Warranty | 5years |
| Track Adapter | 2/3/4wires |
| IP Classs | IP20 |
| Qty/Cartons | 12PCS/CTN GW16Kg |
| Carton Size | 41*41*31cm |
Lighting Feature
| power | CCT | CRI | SDCM | Luminous Flux |
| 30W | 3000K | Ra>80 | <3 | 2400LM(80lm/w) |
| Ra>90 | <3 | 2160lm(72m/w) | ||
| Ra>97 | <3 | 1950lm(65lm/w) | ||
| 4000K | Ra>80 | <3 | 2970LM(99lm/w) | |
| Ra>90 | <3 | 2520lm(84lm/w) | ||
| Ra>97 | <3 | 2130lm(71lm/w) |
Operating and Electrical
| Power | 30W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | Bluetooth mesh |
Decription
We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.
APP control has the function of intelligent networking control, remote control power switch, with a variety of modes of action, lighting effect adjustment and other functions.
Mutiple dimming ways for Tunable white led track light
Tunable white track light used CRI>90 led chip and flicker free driver, the color of light is very uniform, comfortable and healthy, the control ways have RF/DMX512/BLE....., customer can adjust the beam angle and the color by arbitrary switching.
The figure of temperature rise
Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led juncton temperature is 150℃
LIGHT LM21&LM80
