20w led track lighting fixture flicker free
Full Product Code:PS-TL-20/25W-X16A80- General Information
- Feature
- Installation
- Download
Decription
20W led track light flicker free is powerstar popular model, max 150lm/w with Citizen/luminus/Cree chip.5years warranty for osram/philips/tridonic driver,powerstar led track lighting fixture all have good CRI85/90/97. Beam angle 15/24/38/60degree used for shopping mall,supermarket/musem/office/clothes store. the UGR<19 LED track lighting kits give soft light to protect eyes.
General Information
| Power | 20/25W |
| Housing Material | Die-Casting Aluminum |

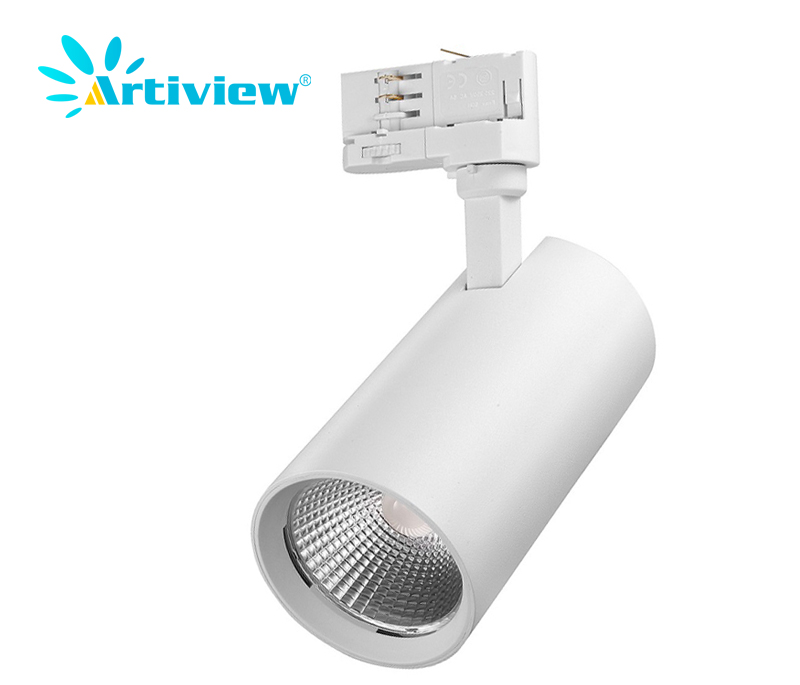

| Housing Color | Black 9011/White 9016 |

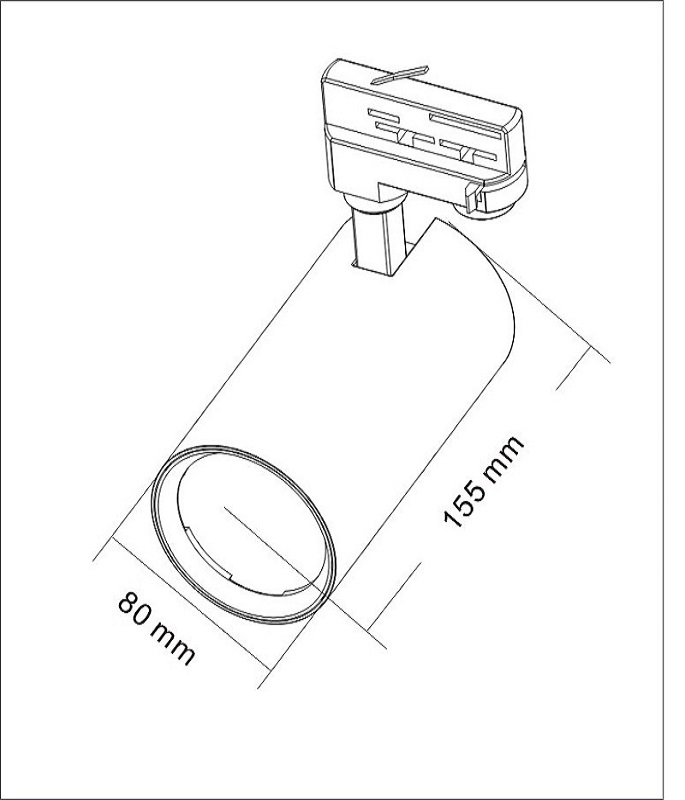

| Housing Size | 80*155mm |
| LIGHT Source Brand | Epistar/Cree /Citizen/Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Osram/Philips/Tridonic/Archi |
| Beam Angle | 15/24/38° Reflector |
| UGR | 15 |
| Warranty | 5years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 12.5Pcs/CTN GW10Kg |
| Carton Size | 46*28*27cm |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 20/25W | 3000K | Ra>80 | <3 | 122lm/w |
| Ra>90 | <3 | 104lm/w | ||
| 4000K | Ra>80 | <3 | 125lm/w | |
| Ra>90 | <3 | 106lm/w |
Operating and Electrical
| Power | 20/25W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
l Using high end led cob citizen /luminus chip .high lumen output ,up to 110lm/w
l High-end spotlight with internal driver, Die-casting aluminum housing with convective holes for better heat dissipation
l Various beam angle 15°, 24°, 38°，60°, for option with uniform light distribution
l ugr less than 15,Anti glare lighting solutions
l 20w 25w lighting fixture , apply in all commercial lighting project
l Spot lighting has Comeptitive price,we can win together .

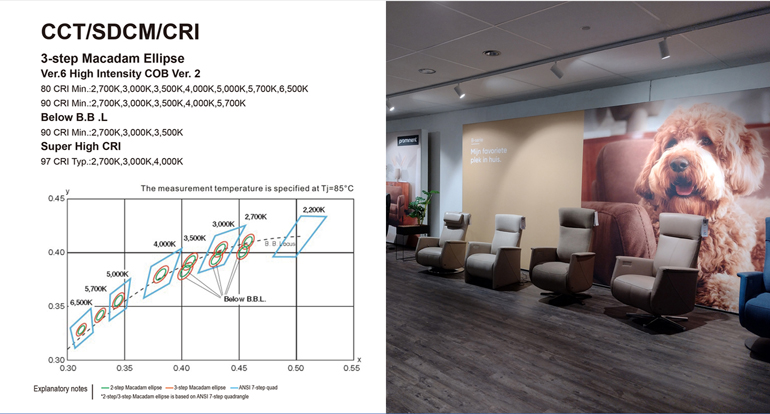

20w track spot lights adopt professional LED light source, Color tolerance is controlled within 3 McAdam steps, below BBL, So that the lighting effect can increase customers' desire to buy . Lighting CCT Range from 2700k to 6500k ,CRI have 80/90/97Ra three options .In different lighting project ,Powerstar lighting will provide different recommend solutions for you .

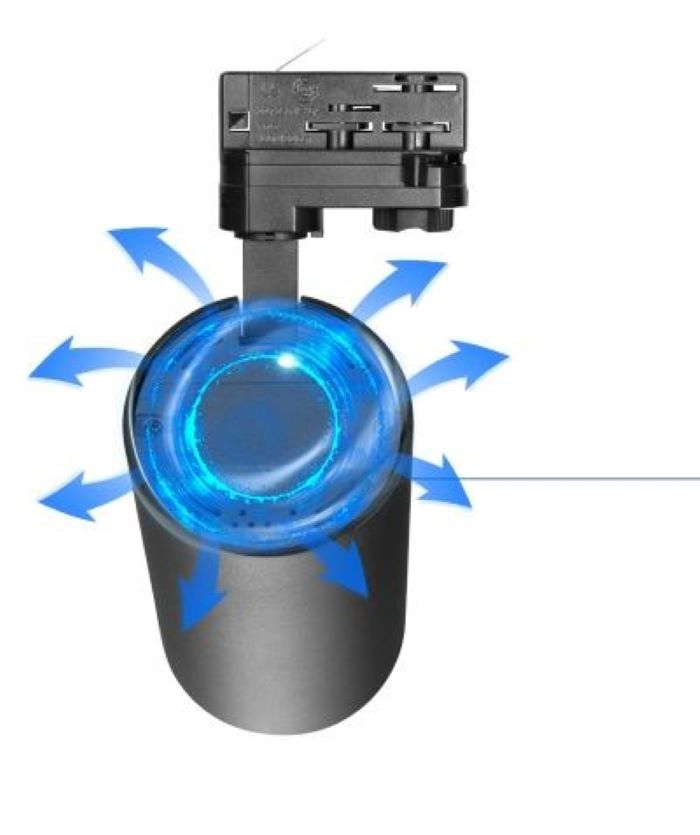

20w spot lighting fixture using high end aircraft aluminum material, Track lighting bulb has convection design with good heat dissipation , Our lighting housing fixture IP class is IP40. It means it can dust prevention.This spot lamp normally applied in commercial indoor area .So IP 40 is enough .Besides spot lighting housing color using RAL Color which is international spray painting color standards ,black is RAL 9011 ,White is 9016.

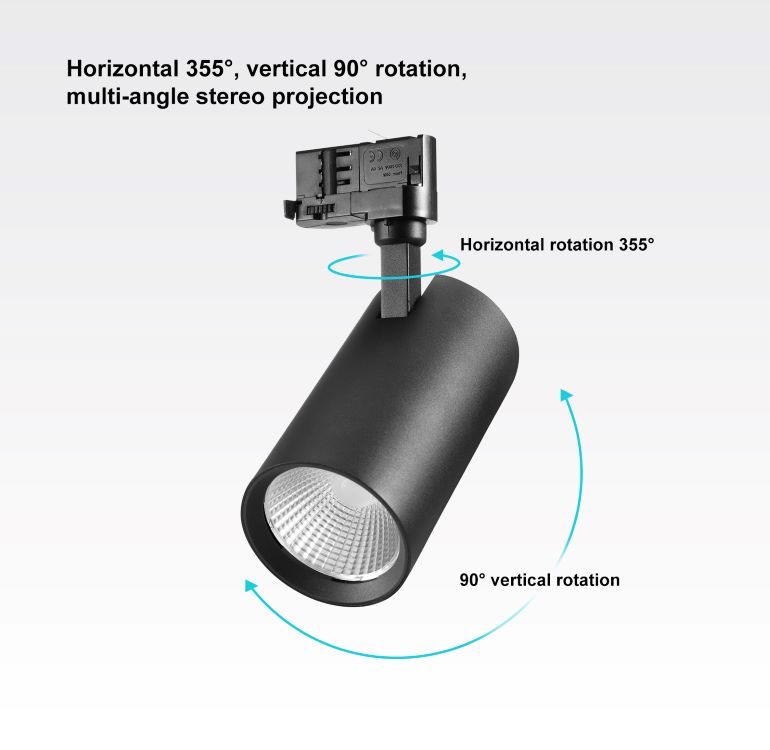

Lighting bulb can adjust ,Horizontal 355°and vertical 90° rotation, multi-angle to control .you can focus on your object in any direction .lighting is easily to handle .you just need to adjust correct direction before installation .
Powerstar lighting supplier very attach our spot light qulity control .we provide 5 year warranty for all my lighting solutions .we do many professional test for our lamp .for example IES ,LDT ,Integrating sphere,and specially we do temperature test, which many lighting factory dont do it .
