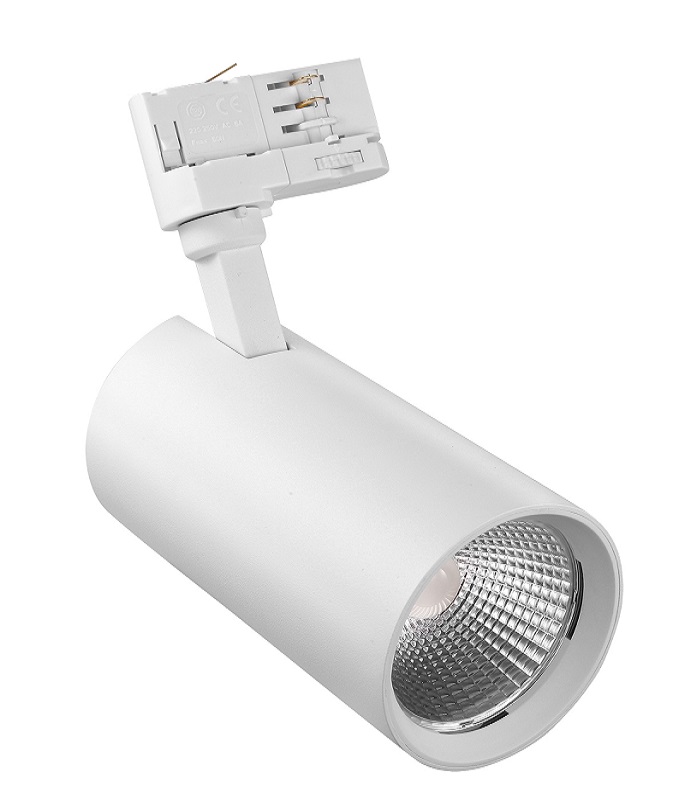

25w led track lighting fixtures
Full Product Code:PS-TL-25W-X16A80- General Information
- Feature

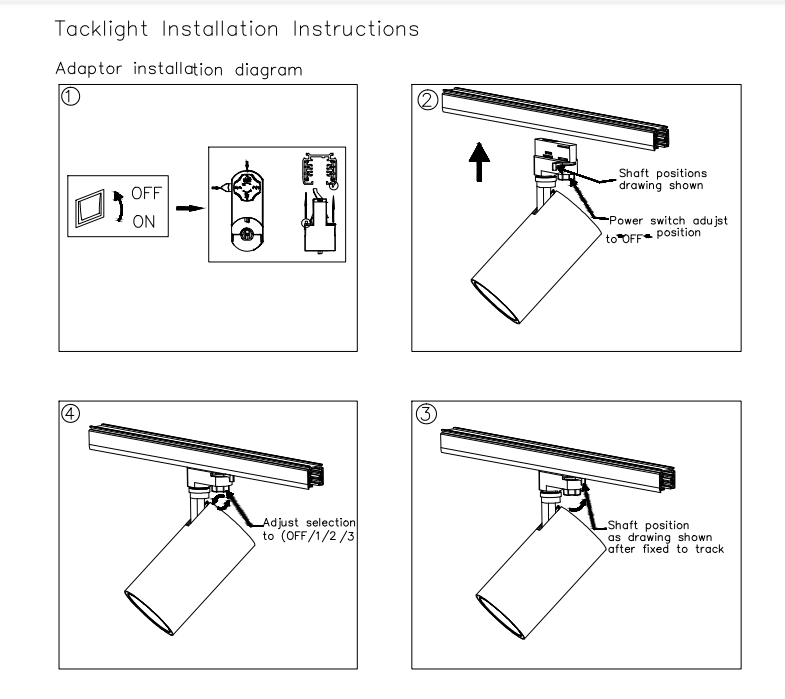

- Installation
- Download
Decription
Powerstar 25w led track light can reach 3000lm actually test 120lm/w light efficient, high output 25w led track light can save energy than normal 35w led track light cob. 25w led track light cob use 98% light reflectivity.use world class chip such as citizen/luminus. good quality driver like osram/philips/tridonic 5years warranty .25w track led lighting has stock 20000pcs, so lead time 5-7days .
General Information
| Power | 25W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |

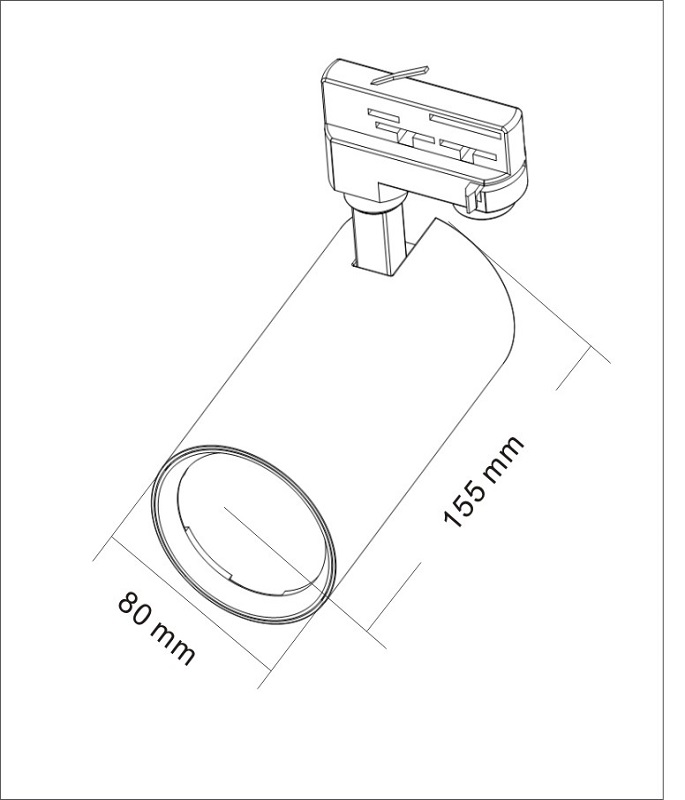

| Housing Size | 80*155mm |
| LIGHT Source Brand | Citizen/Luminus/Cree COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Osram/Philips/Tridonic/Archi |
| Beam Angle | 15/24/38° Reflector |
| UGR | 15 |
| Warranty | 5 years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 15Pcs/CTN GW14Kg |
| Carton Size | 46*28*27cm |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 25W | 3000K | Ra>80 | <3 | 2250lm(120lm/w) |
| Ra>90 | <3 | 2000lm(110lm/w) | ||
| 4000K | Ra>80 | <3 | 2325lm(123lm/w) | |
| Ra>90 | <3 | 2075lm(113lm/w) |
Operating and Electrical
| Power | 25W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |

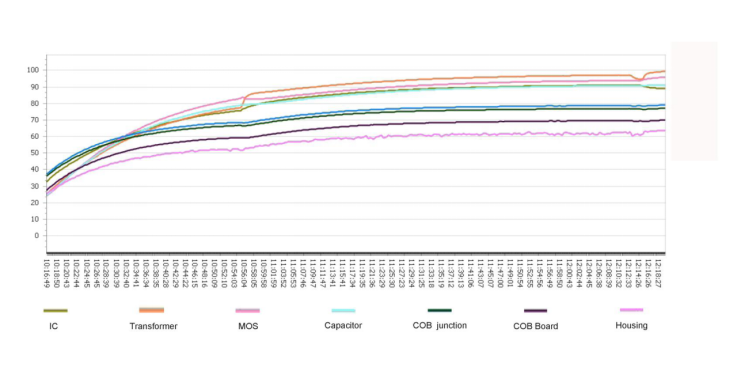

Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature is 150℃
LM21&LM80
