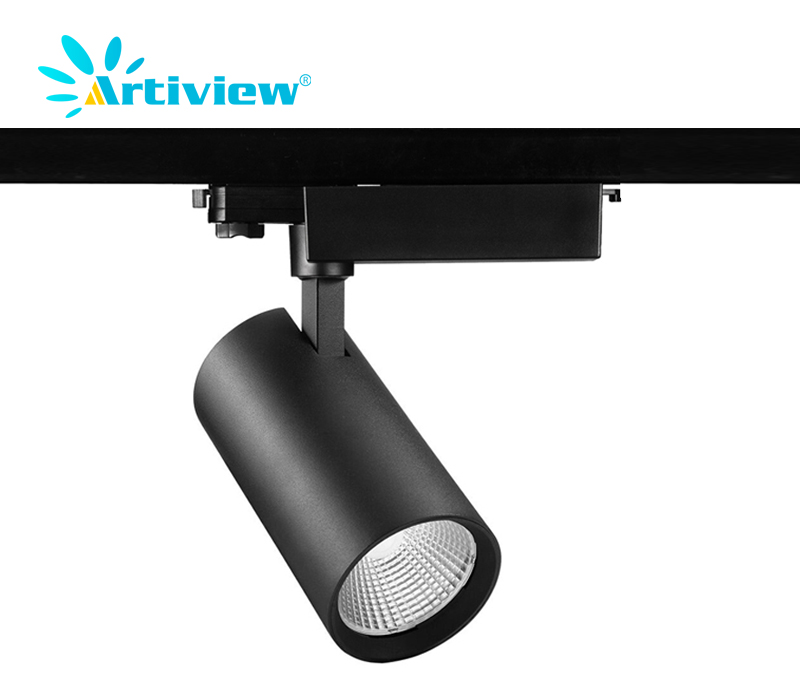

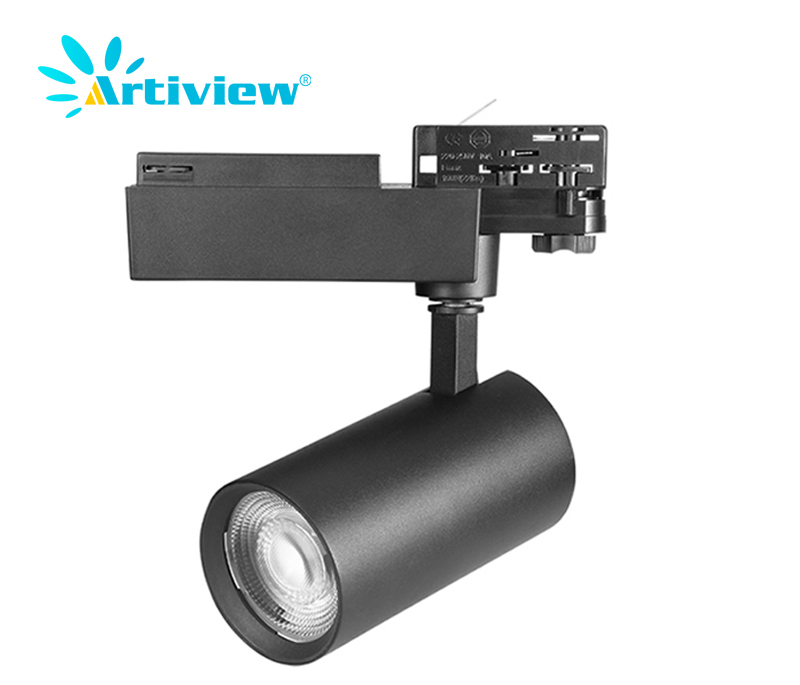

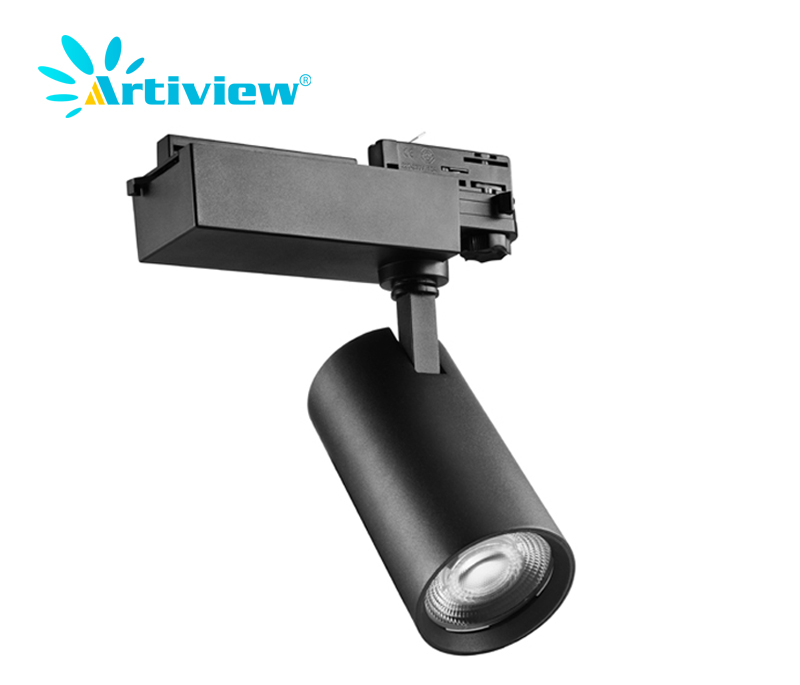

LED new spotlight cob european tracklight

Full Product Code:PS-TL-30W/35W-X16B80
  • General Information
  • Feature
  • Installation
  • Download

Description

We are led tracklight supplier. We have 8 years professional expenriences in led industry. We has foucsed on researching the tracklight for three years . This hot sale type has high performance in foreign country. Our tracklight factory located in shenzhen .We set the sales and produce and research in one company. So our tracklight factory can save more cost. We can provide the professional serives and good tracklight product. Our factory has traclight in stock. Sample will develivery in 3days. And bulk goods will need one week.



General Information


Power 30W/35W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack(9011)/White(9016)
Housing Size80x155mm
Light Source BrandCitizen/Cree/Luminus COB
CCT2700/3000/3500/4000/5000/5700K
Driver BrandTridonic/Osram/Philips/Boke
Beam Angle15/24/38/60° Reflector or Lens
UGR15
Warranty5 years
Track Adapter 2/3/4wires
IP ClasssIP20
Qty/Cartons16Pcs/CTN GW18.9Kg
Carton Size47*47*55cm


Lighting Feature

Power   CCTCRISDCMLuminous Flux
30W/35W3000KCRI>80<3103lm/w
CRI>90<398lm/w
4000KCRI>80<3103lm/w
CRI>90<398lm/w


Operating and Electrical


Power 30W/35W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
DimmableTriac



COB LED Track Light Features

1. Thicker ADC12 aluminum material.

2. External driver design, fast heat dissipation.

3.Citizen/Luminus/Cree/Bridgelux chip, brighter and saving electricity.

4. SDCM<3, UGR<19, uniform and comfort lighting color.

5. 5 years warranty with TUV/SAA/CE/ROHS/CB/C-tick certificates.


LED new spotlight cob european tracklight

4-layer Powder Coating Technology

Excellent Baking Paint Process

The aluminium housing of the lamp body has been powder coated in 4 layers and then baked with a baking paint process, where the aluminium housing is sprayed with several layers of paint and baked at a high temperature to set the shape. The surface paint has a good colour rendering and prevents corrosion and rusting of the lamp housing, taking into account durability and aesthetics. The surface of this lamp is very substantially improved the abrasion resistance of the shell, the lamp body is not easy to wear, longer use.

LED new spotlight cob european tracklight

Aluminium Turbine Heat Sink

Breathing Air Holes for Efficient Heat Dissipation

Using international standard ADC12 die-cast aluminium shell, the thickness of the aluminium is twice as thick as the market model, the interior uses turbo breathing vents super heat sink, which allows the heat generated inside the lamp body to be fully excluded to the outside air, the heat is quickly replaced to achieve the effect of rapid heat dissipation, thus effectively reducing safety hazards, reducing light decay and increasing the service life of the track light.


LED new spotlight cob european tracklight


Branded COB Original Chip, Brighter and more Power Saving.

With CITIZEN brand LED chips, the luminous efficiency can reach 100-180lm/W, high transmittance and luminous efficiency of the lamp beads, energy saving more than 60%. The light is soft and even, bright and comfortable, anti-glare, there is no dazzling aperture when the light is lit, where the light comes is the focus, focusing on the beauty of a healthy and comfortable commercial lighting environment.













The COB LED Track light present bright spatial brightness in the whole place, to make the customers into the mall have a bright and comfortable feeling, the key lighting, establish the modeling of the display goods, express the structure, texture and color of the display products to form a stronger contrast with the surrounding environment, good lighting effect will make the exhibits look more shiny, the color is more attractive, widely used in various shopping malls and supermarkets lighting.


LED new spotlight cob european tracklight
