30w 35w track light spot light
Full Product Code:PS-TL-30W/35W-X16I93H- General Information
- Feature

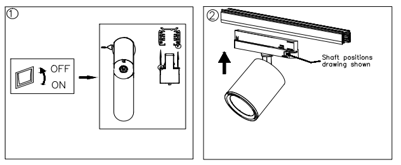

- Installation
- Download
Description:
powerstar I93 is powerstar commercial led track lighting systems, with power 20/25/30/35w.the track lighting led lights has good lighting performance like CRI90/97, SDCM<3.also light efficient max 150lm/w, especially 30w track light spot light much popular,used in clothes shop,big shippping mall, supermarket.
General Information
| Power | 30W/35W |
| Housing Material | Die-casting Aluminum |
| Housing Color | Black(9011)/White(9016) |
| Housing Size | 93*115*135mm |
| Light Source Brand | Citizen/Luminus/Cree COB |
| CCT | 2700/3000/3500/4000/5000/5700K |
| Driver Brand | Allooking /Global /Powergear |
| Standard Beam Angle | 15/24/38/60° (90% reflectivity ) |
| High Efficency Angle | 20/30/45/60° (98% reflectivity) |
| UGR | 19 |
| Warranty | 5years |
| Track adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 16PCS/CTN GW18.9Kg |
| Carton Size | 47*47*55cm |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 30W/35W | 3000K | Ra>80 | <3 | 125lm/w |
| Ra>90 | <3 | 115lm/w | ||
| 4000K | Ra>80 | <3 | 130lm/w | |
| CRI>90 | <3 | 125lm/w |
Operating and Electrical
| Power | 30W/35W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
The figure of temperature rise
Temperature
The testing is operated at 25℃
The lifetime of capacitor,minimum of 8000 hours if operated at 105,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature 150℃
LIGHT LM21&LM80
