2020 super design 40w ledil lens led track linear light

Full Product Code:PS-TTL-40WL45
  • General Information
  • test
  • Installation
  • Download

General Information

Power 40W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011 ) / White (9016)

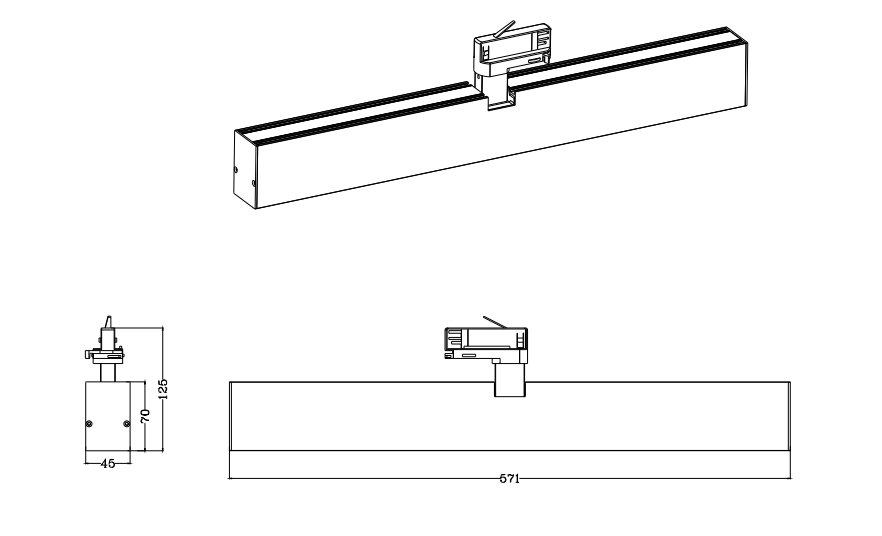

Housing Size45*571*66mm
Light SourceSMD3030
Light Source BrandPhilips/Osram
CCT2700/3000/3500/4000/5000/5700K
Driver BrandTridonic/Osram/Philips/Lifud/Boke
Optics TypeLens
Beam Angle60/90
UGR19
Warranty5years
Track Adapter 2/3/4/6wires
IP ClasssIP20


Lighting Feature

PowerCCT (Nom)Color Rendering IndexSDCMNOM Luminous Flux (Efficient )Light Decay (10000hs)
40W3000KCRI>80<34560Lm(114m/w)<3%
CRI>90<33920Lm(98lm/w)<3%
CRI>97<33480lm(87lm/w)<3%
4000KCRI>80<34680LM(117lm/w)<3%
CRI>90<33960lm(99lm/w)<3%
CRI>97<33600lm(90Lm/w)<3%


Operating and Electrical

Power 40W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS


Decription

Super quality 40w led track linear light for clothing store, library, shopping mall, supermarket. CRI80/90/97track linear light can meet different guests requires. Our track linear light choose famous brand Ledil lens and we can provide five years warranty. What's more we pass the CE/RHOS certification. Our products have been well received by many customers and are often used in engineering projects. Besides, our factory covers an area of 2000 square meters and we can produce ten million per mounth.

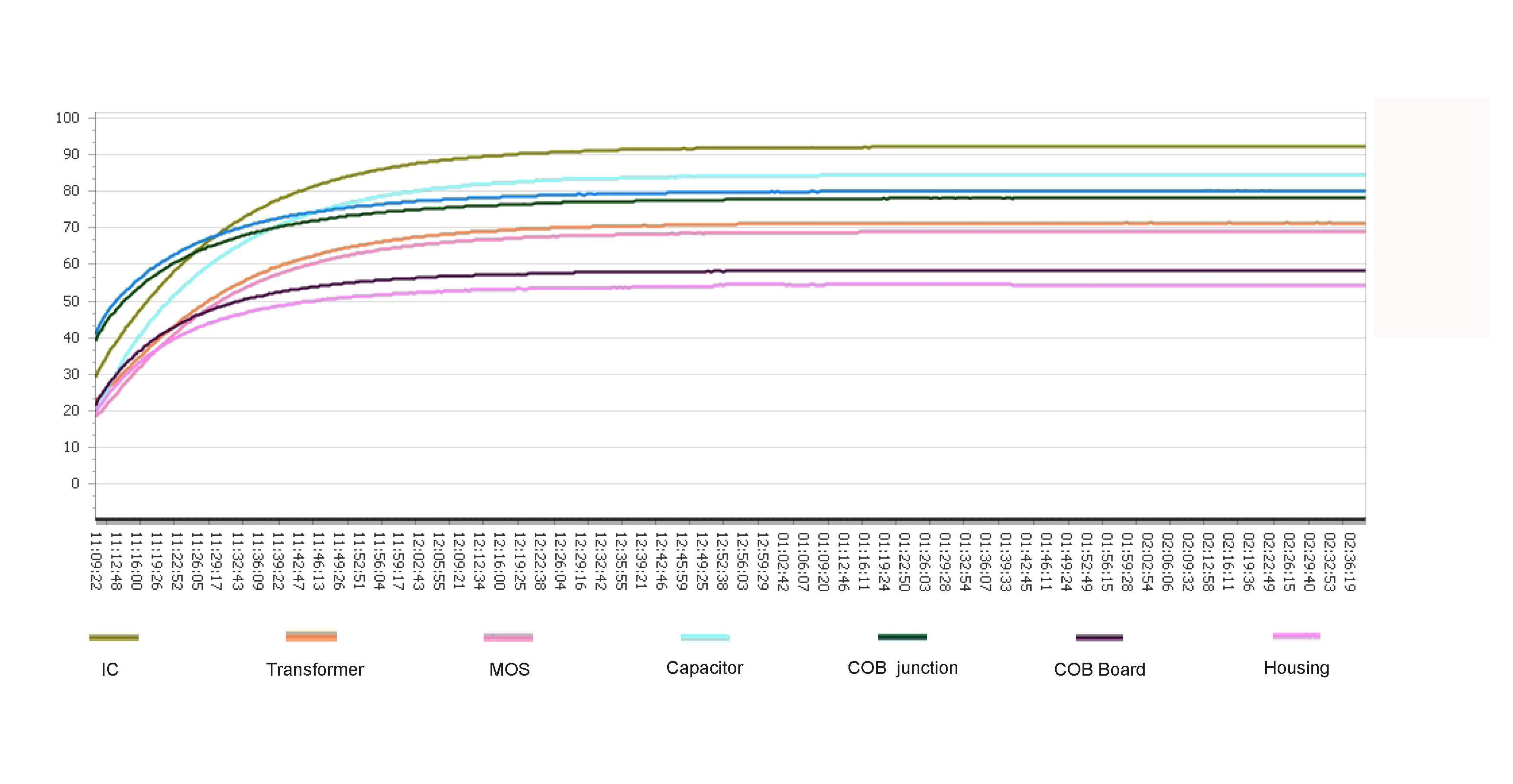

Temperature Test


7w track light living room warm white ra97

Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the  temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led junction temperature is 150℃

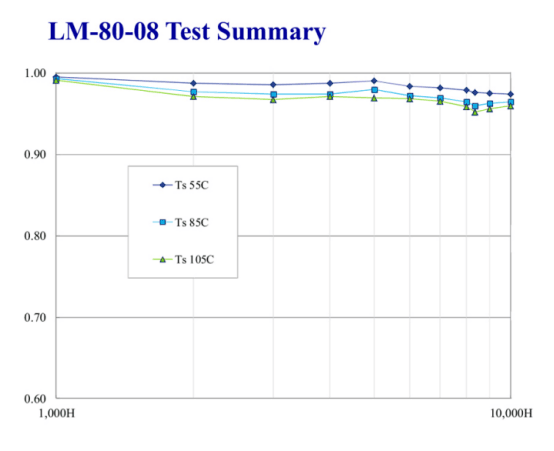

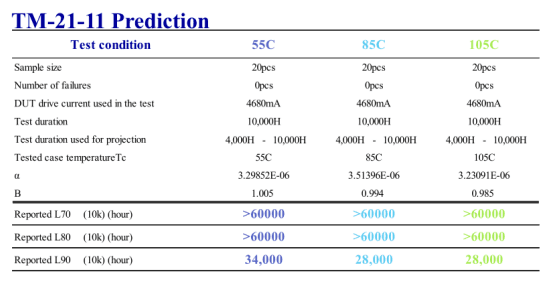

LIGHT LM21&LM80

7w track light living room warm white ra977w track light living room warm white ra97
