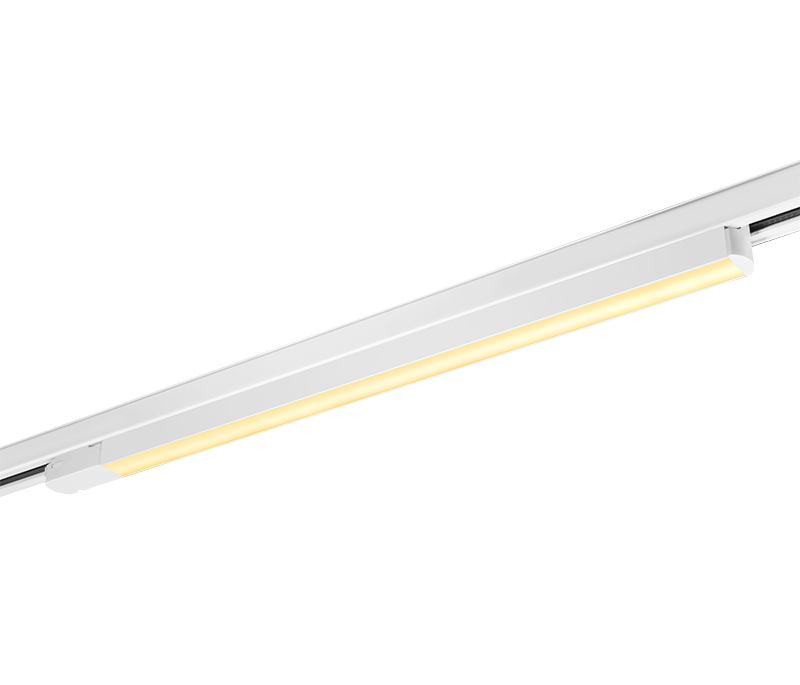

UGR<19 20W white color linear light
Full Product Code:PS-TTL-20WL31- General Information
- Feature

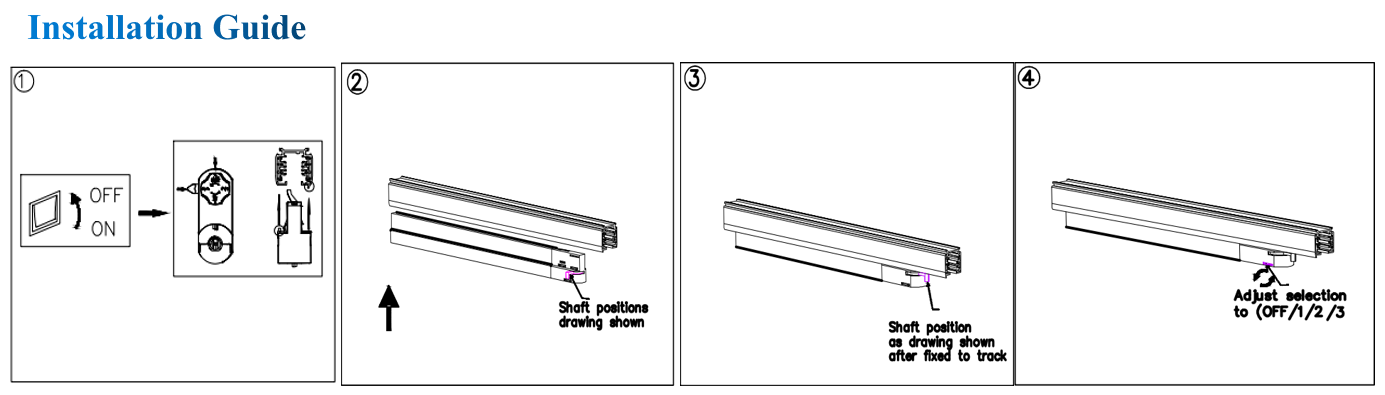

- Installation
- Download
Decription
2020 Simple Design Utility Convenience 20W track linear light for shopping mall/market/office lighting, anti-glare design UGR<19. Three options to choose, CRI80/90/97track linear light can meet different guests requires. What's more, we pass the CE/RHOS certification. Our products get high evaluation by many customers and are often used in some projects. Besides, our factory covers an area of 2000 square meters.
General Information
| Power | 20W |
| Housing material | Die-casting Aluminum |
| housing Color | Black (9011) / White (9016) |
| Housing size | W31*L690*H48mm |
| Light source | SMD2835 |
| CCT | 2700/3000/3500/4000/5000/6000k |
| Driver Brand | AGT |
| Beam angle | 120° Diffuser |
| UGR | 19 |
| Warranty | 3years |
| Installation method | 3/4wires |
| IP Classs | IP20 |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 20W | 3000K | Ra>80 | <3 | 1780Lm(89lm/w) |
| Ra>90 | <3 | 1580Lm(79lm/w) | ||
| 4000K | Ra>80 | <3 | 1940Lm(97lm/w) | |
| Ra>90 | <3 | 1660Lm(83lm/w) |
Operating and Electrical
| Power | 20W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |

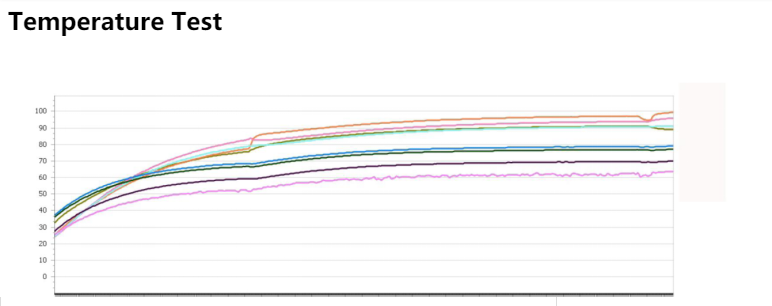

Temperature
- The testing is operated at 25℃
- The lifetime of capacitol ,minimum of 8000 hours if operatd at 105℃,will be doubled whenever the temperature drops 10℃
- The highest withstand temperature of IC,MOS couldbe 120℃
- The highest withstand temperature of led juncton temperature is 150℃
