Decription

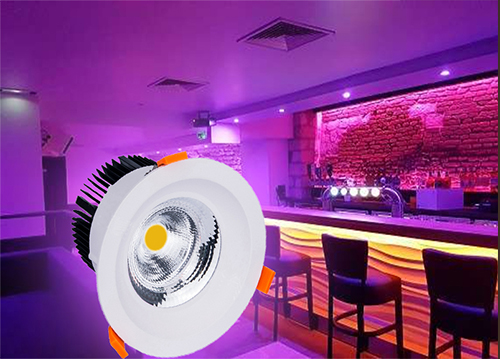

We are led downlight lighting supplier in china. we find RGB RGBW lighting solutions recently .we rearch can use DALI ,Tuya Zigbee,DMX512 can achieve this lighting effect .it is normally applyed in some stage on hotel meeting room ,theater and bar club and sports centen or show room etc .
General Information
| Power | 15w |
| Housing Material | Die-Casting Aluminum |
| Housing Color | white |

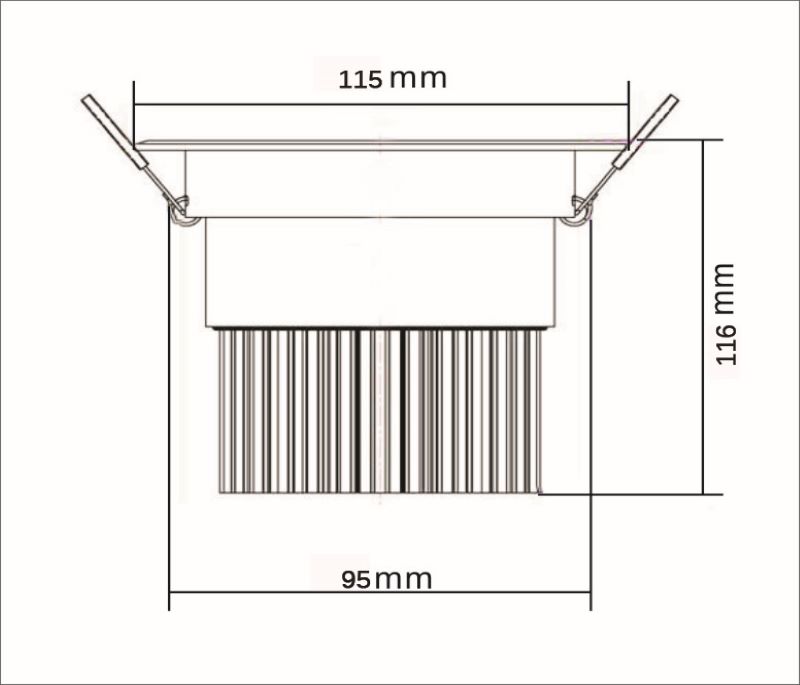

| Cut hole | 95mm |
| Housing Size | 115*116mm |
| Housing Max temperature (nom) | 65 |
| LIGHT source | RGB/RGBW |
| CCT(for RGBW) | 2700/3000/3500/4000/5000/5700k |
| Dimmable | tuya /Zigbee/Dali /DMX512 |
| Optics Type | Reflector |
| Beam Angle | 24/40/60 |
| Warranty | 5years |
| Test Information | test ball, IES/Ldt |
| Storage Temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Power Available
Lighting Feature
| power | CCT | CRI | SDCM | Luminous Flux |
| 15w | 3000K | Ra>80 | <3 | 1776LM(118lm/w) |
| Ra>90 | <3 | 1436lm(95lm/w) | ||
| Ra>97 | <3 | 1362lm(90lm/w) | ||
| 4000K | Ra>80 | <3 | 1823LM(121lm/w) | |
| Ra>90 | <3 | 1546lm(103lm/w) | ||
| Ra>97 | <3 | 1397lm(93lm/w) |
Operating and Electrical
| Power | 15w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS |
| Dimmable | dali/casmbi/tuya/zigbee/bluetooth mesh/dmx512 |
| Life Time | 64000hrs |
What control ways for RGBW led COB down light we can provide?

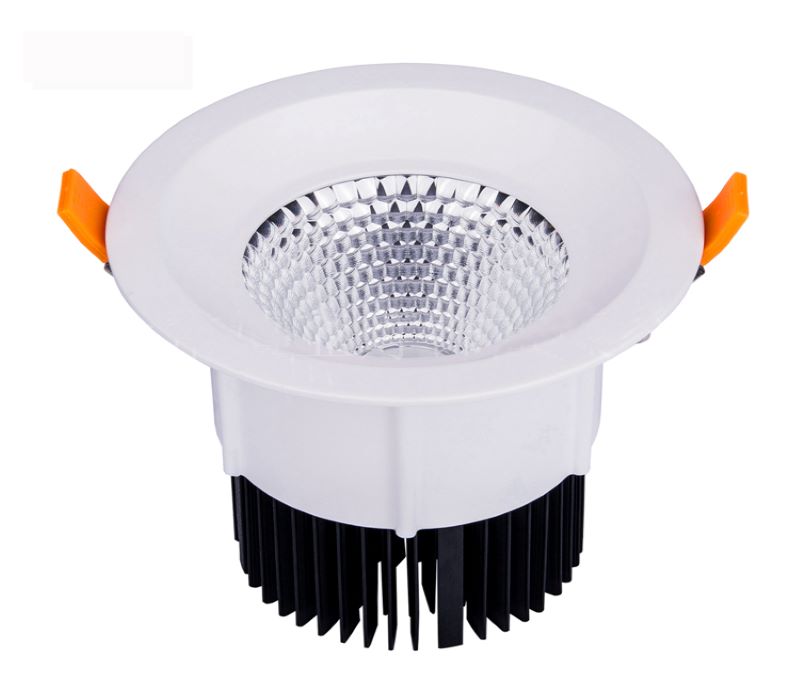

RGBW LED COB Down light, used CRI>90 and flicker free driver, the color of light is very uniform, comfortable and healthy, the control ways have RF/DMX512/APP....., customer can adjust the beam angle and the color by arbitrary switching.

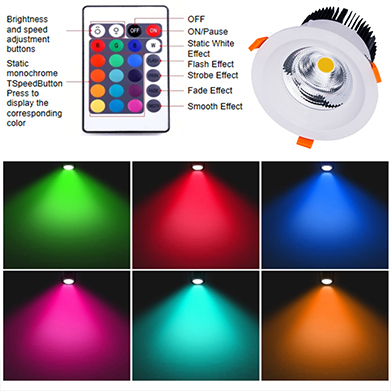

Mutiple RGBW adjust effect and very easy to operate by RF control way
RF control way is very easy to operate and have mutiple RGBW adjust effect, such as flash effect, the three colors are constantly changingit’s very suitable for bar and stage.

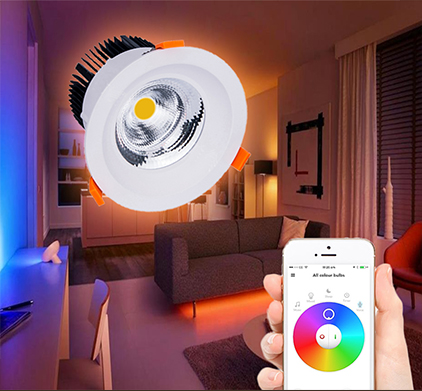

APP control has the function of intelligent networking control, remote control power switch, with a variety of modes of action, lighting effect adjustment and other functions.
LED chip we use CITIZEN COB with high brightness and low light decay, passed LM80.
Test data of LM80 and LM70 life time :
Driver lifetime & LED light decay rate
Temperature
● The testing is operated at 25°C
● The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C
● The highest withstand temperature of IC, MOS could be 120°C
● The highest withstand temperature of LED junction temperature is 150°C
Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.
3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.
WARNING
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
