35w zigbee dimming controller led track lighting

  • General Information
  • Feature
  • Installation
  • Download

General Information

Power 35W
Housing materialDie-casting Aluminum
housing ColorBlack/White
Housing size93*115*135mm
LIGHT source brandCitizen/Luminus/Cree COB
CCT2700/3000/4000/5000/5700/6500k
Standard Beam angle15/24/38/60° (90% reflectivity )
High efficency  angle 20/30/45/60° (98% reflectivity)
UGR19
Warranty5years
Track adapter2/3/4/6wires
IP ClasssIP20
Qty/cartons10PCS/CTN GW16Kg
Carton size55*53.5*29.5cm

Lighting Feature


powerCCT(nom)CRISDCMLuminous Flux
35W3000KRa>80<33850LM(110lm/w)
Ra>90<33780lm(108lm/w)
Ra>97<33500lm(100lm/w)
4000KRa>80<34060LM(116lm/w)
Ra>90<33850lm(110lm/w)
Ra>97<33675lm(105lm/w)


Operating and Electrical


Power 35W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Dimmable Zigbee dimming controller


Decription

As you know,Shenzhen powerstar technology limited company can produce the good quality tracklight.We are a good tracklgiht factory .Our company set sales and produce and research in one .We pay attention to research the high end tracklight for our customers .Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty.And we passed the CE/RHOS certification .You can trust my tracklight quality.

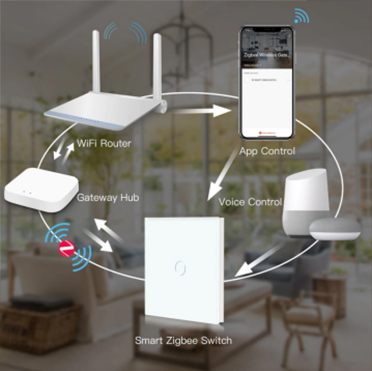

Zigbee control LED track light, ZigBee is an international common protocol with strong compatibility, wireless control of lighting fixtures, including remote control and mobile control; The multiple encryption operation has high security.

400 01.jpg

Other ways for RGBW led track light we can provide

RGBW LED COB Down light, used CRI>90 and flicker free driver, the color of light is very uniform, comfortable and healthy, the control ways have RF/DMX512/APP....., customer can adjust the beam angle and the color by arbitrary switching.

400 03.jpg




The figure of temperature rise

new 30w shop track light


Temperature


The testing is operated at 25℃

The lifetime of capacitor,minimum of 8000 hours if operated at 105,will be doubled whenever the temperature drops 10℃

The highest withstand temperature of IC,MOS could be 120℃

The highest withstand temperature of led junction temperature 150℃


LIGHT LM21&LM80

new 30w shop track lightnew 30w shop track light
