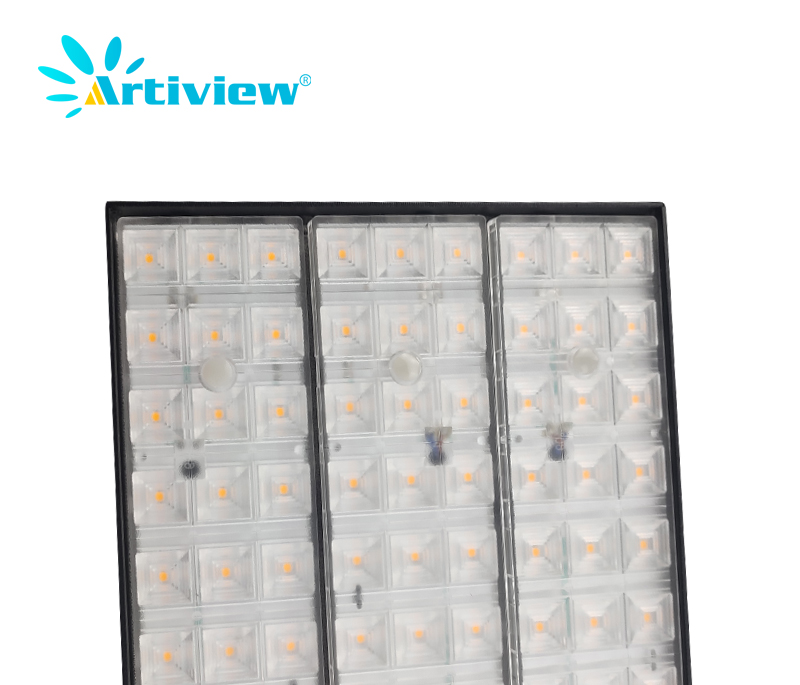

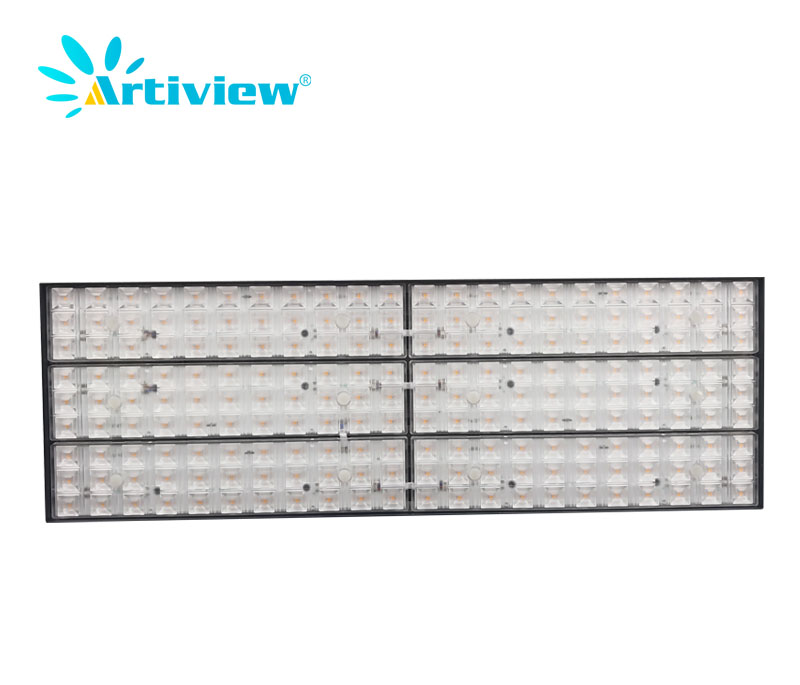

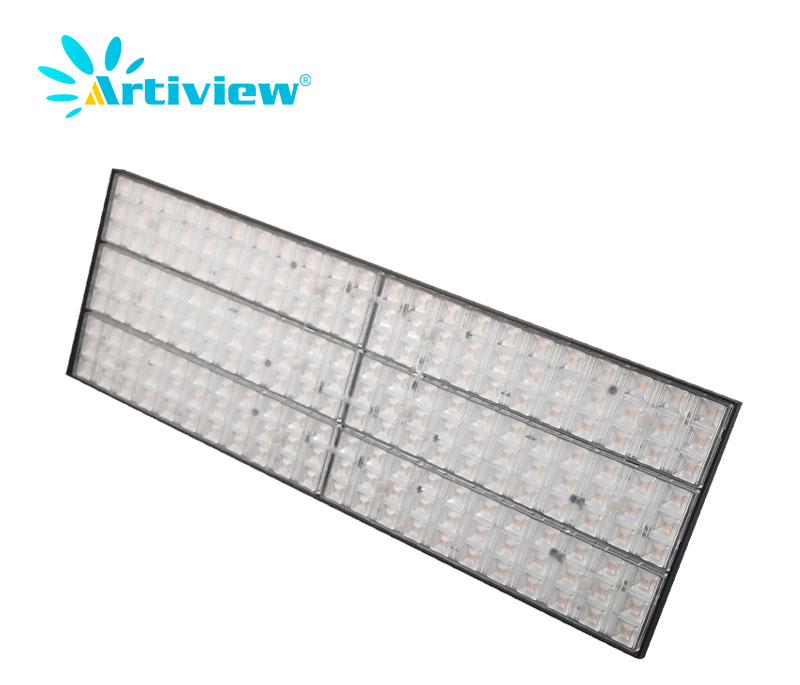

50W Super Value Led Track Panel Light

Full Product Code:PS-TPL50W-S
  • General Information
  • Feature
  • Installation
  • Download

Decription

Super quality 50w led track panel light for clothing store, library, shopping mall, supermarket. CRI80/90/97track panel light can meet different guests requires. Our track panel light choose Osram SMD LED chip and we can provide five years warranty. What's more we pass the CE/RHOS certification. Our products have been well received by many customers and are often used in engineering projects. Besides, our factory covers an area of 2000 square meters and we can produce ten million per mounth.


General Information

Power 50W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011 ) / White (9016)
Housing Size18*194*580mm
Light SourceSMD2835
Light Source BrandPhilips/Osram
CCT3000/4000/5000K
Driver BrandTridonic/Osram/Philips/Lifud/Boke
Optics TypeLens
Beam Angle60/90
UGR19
Warranty5years
Track Adapter 2/3/4/6wires
IP ClasssIP20


Lighting Feature

PowerCCTCRISDCMLuminous Flux
50W3000KRa>80<35700Lm(114m/w)
Ra>90<34900Lm(98lm/w)
Ra>97<34350lm(87lm/w)
4000KRa>80<35850LM(117lm/w)
Ra>90<34950lm(99lm/w)
Ra>97<34500lm(90Lm/w)


Operating and Electrical

Power 50W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS




Adopt high quality brand lamp bead, light color uniform and comfortable

Artiview 50W led track panel lights use the premium brands such as Philips/Osram3030 led chip, the professional-grade LED light source is adopted, and the color tolerance is controlled within 3 steps of McAdam, so as to effectively ensure the height of light color consistency. The same batch of lamp beads have no color difference, and the color of light is more pure and comfortable, which will not bring bad feelings to customers' vision.

400 01.jpg

Artiview 50W led panel track lighting kits adopts Powergear or Global track head, which is compatible and can match most of the track bars on the market. The track head can weigh 10kg, which is much more than the weight of the lamp body. There is no need to worry about the potential safety problems.

400 02.jpg


High quality lens optical fittings, uniform light, no halo and dark spots

Artiview 50W led panel track lighting fixture uses high-quality optical lens, professional light distribution optimization design, reasonable reflective surface and special processing, soft and uniform light, UGR<15, no glare, no glint, no halo and dark spot, creating a visually comfortable commercial lighting environment.

400 03.jpg

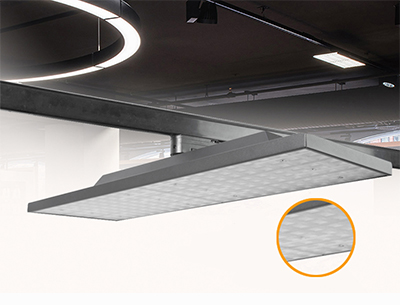

Track type installation is convenient and fast, and can be moved at will

Artiview 50W track panel light led track type installation, no need to do ceiling, low cost, can be moved freely, can change the direction of light irradiation, light with the object, optional surface installation, embedded installation method, a variety of installation methods to meet different installation needs, convenient and fast, flexible with different lighting design needs, create a unique lighting scheme for thecommercial space.

400 04.jpg




Temperature Test


Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the  temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led junction temperature is 150℃
