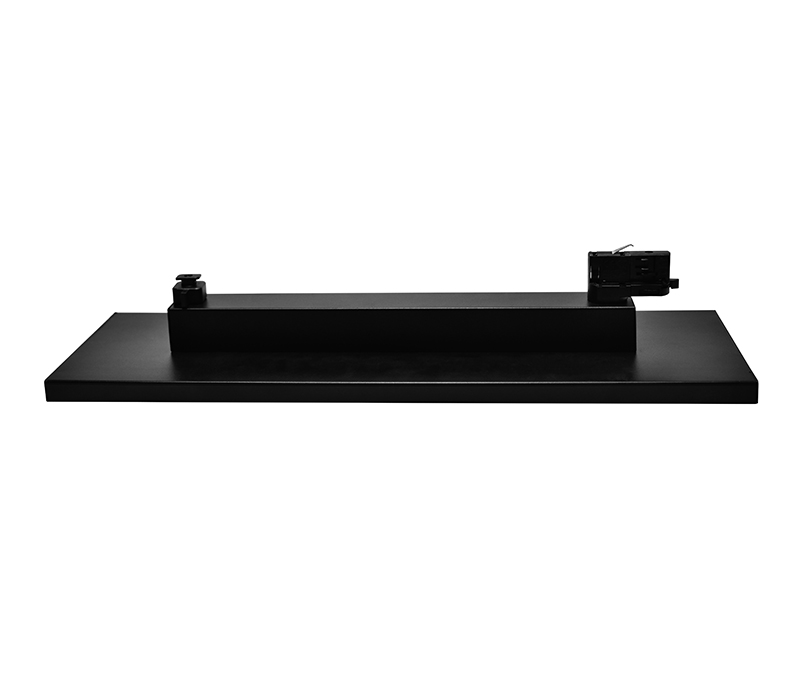

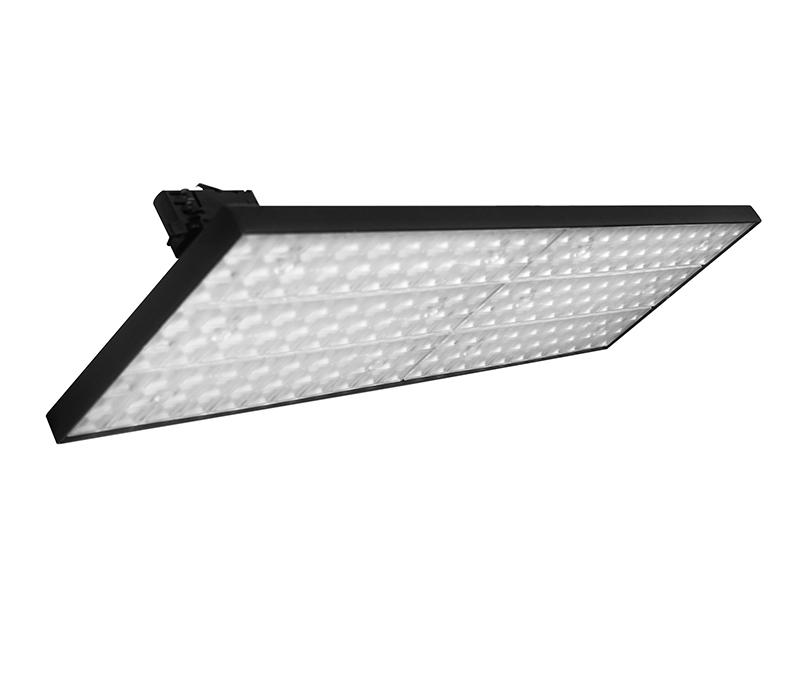

75W Osram SMD led track panel light

Full Product Code:PS-TPL75W
  • General Information
  • Feature
  • Installation
  • Download

Decription

Super quality 75w led track panel light for clothing store, library, shopping mall, supermarket. CRI80/90/97track panel light can meet different guests requires. Our track panel light choose Osram SMD LED chip and we can provide five years warranty. What's more we pass the CE/RHOS certification. Our products have been well received by many customers and are often used in engineering projects. Besides, our factory covers an area of 2000 square meters and we can produce ten million per mounth.


General Information

Power 75W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011 ) / White (9016)

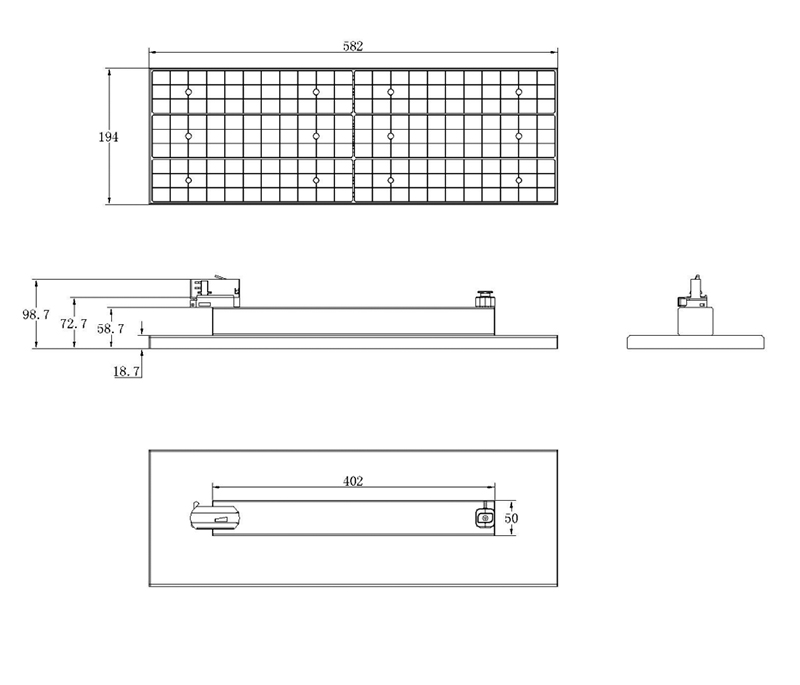

Housing Size18.7*194*582mm
Light SourceSMD2835
Light Source BrandPhilips/Osram
CCT3000/4000/5000K
Driver BrandTridonic/Osram/Philips/Lifud/Boke
Optics TypeLens
Beam Angle60/90
UGR19
Warranty5years
Track Adapter 2/3/4/6wires
IP ClasssIP20


Lighting Feature

PowerCCT CRISDCMLuminous Flux
75W3000KRa>80<38550Lm(114m/w)
Ra>90<37350Lm(98lm/w)
Ra>97<36525lm(87lm/w)
4000KRa>80<38775LM(117lm/w)
Ra>90<37425lm(99lm/w)
Ra>97<36750lm(90Lm/w)


Operating and Electrical

Power 75W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS

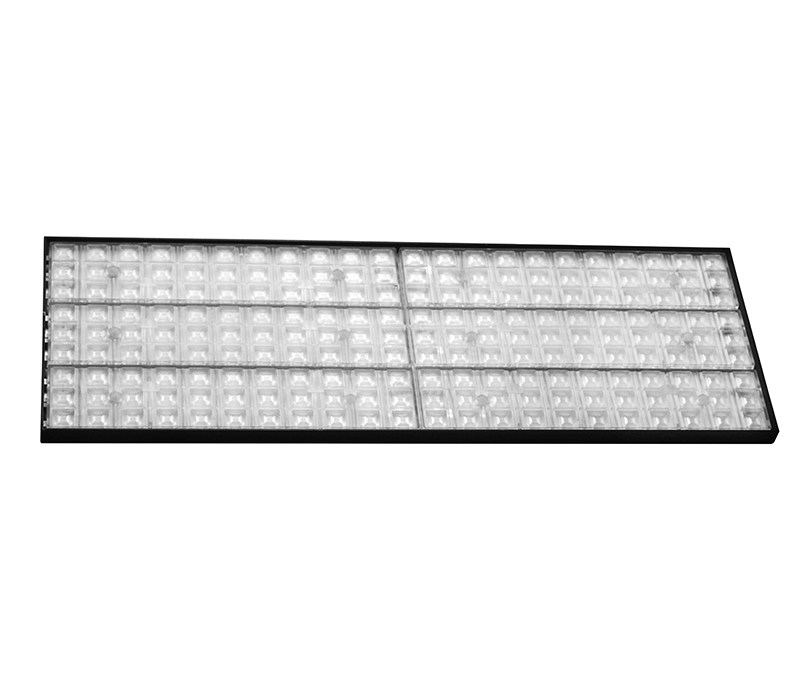

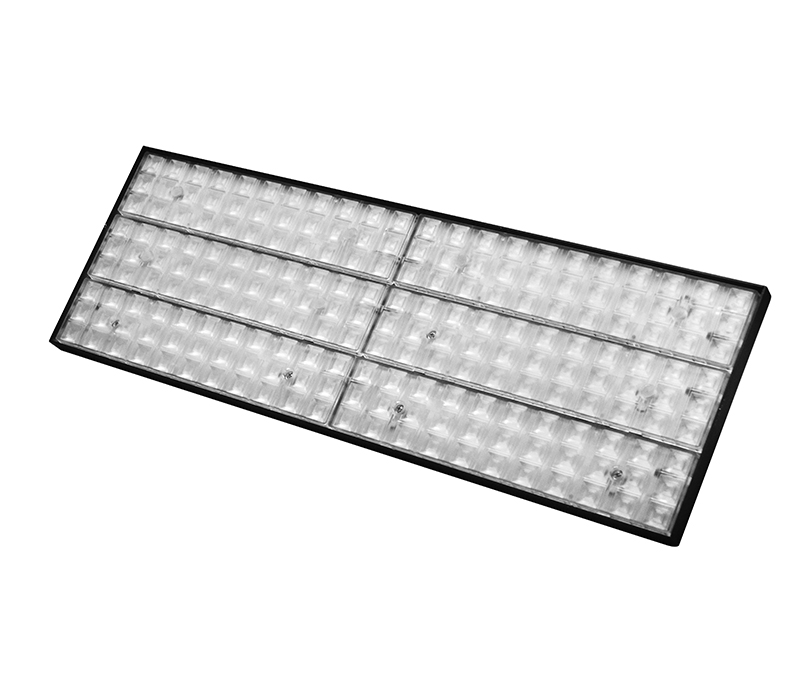

High quality lens optics, uniform light output, no glare

Artiview 75W indoor track panel lighting fixtures uses high-quality lens optical accessories, uniform brightness, good consistency, strong penetration, small light loss, low glare value, watts can do 75W, very suitable for middle and high grade stores, shopping malls and other indoor commercial atmosphere lighting.

400 01.jpg


11procedures for surface treatment, outdoor salt spray testing standards, RAL Color Chart standards  convection holes increase heat dissipation

Artiview 75W led track panel light housing has undergone 11 surface electrostatic spraying processes and has been tested for salt spray of outdoor products. The colours of the enclosure are ral standard, white (Ral9016), black (Ral9015). It has perfect texture, exquisite and durable finish, and is well made to last forever.

400 02.jpg

Custom packaging, transportation safety

Artiview 75W track panel led lights adopts high-quality customized packaging to ensure transportation safety. In order to cushion the impact of the product in transportation, it is necessary to strengthen the protection of the product. The gap between the internal and external packaging should be equipped with shockproof materials.

400 03.jpg

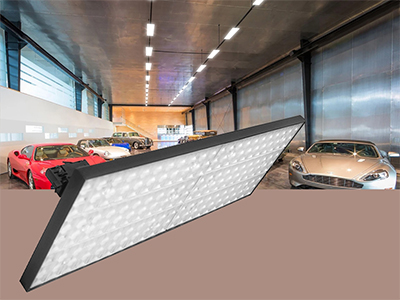

Artiview 75w track panel lights product display of goods to show the quality of the goods and stereo feeling, pay attention to the customer experience, high brightness highlight the commodity characteristics and create attractive light at the same time, the light and comfortable without stroboscopic and UV light, stressed to the customer the comfortable shopping experience, extend the sojourn time of customers, thereby increasing the possibility of clinch a deal,  Widely used in various comprehensive shopping malls, shopping centers, shopping malls and stores and other places.

400 04.jpg

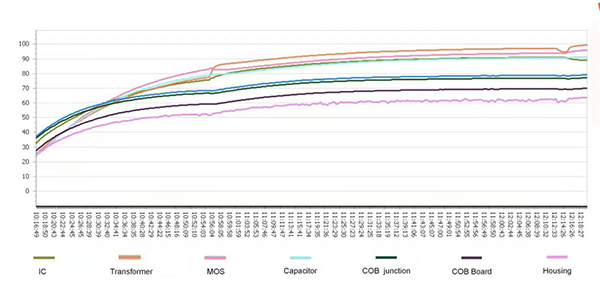

Temperature Test



Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the  temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led junction temperature is 150℃
