  • 50W Led track panel Light 45° angle adjust panel light for supermarket clothing shops
  • 50W Led track panel Light 45° angle adjust panel light for supermarket clothing shops
  • 50W Led track panel Light 45° angle adjust panel light for supermarket clothing shops

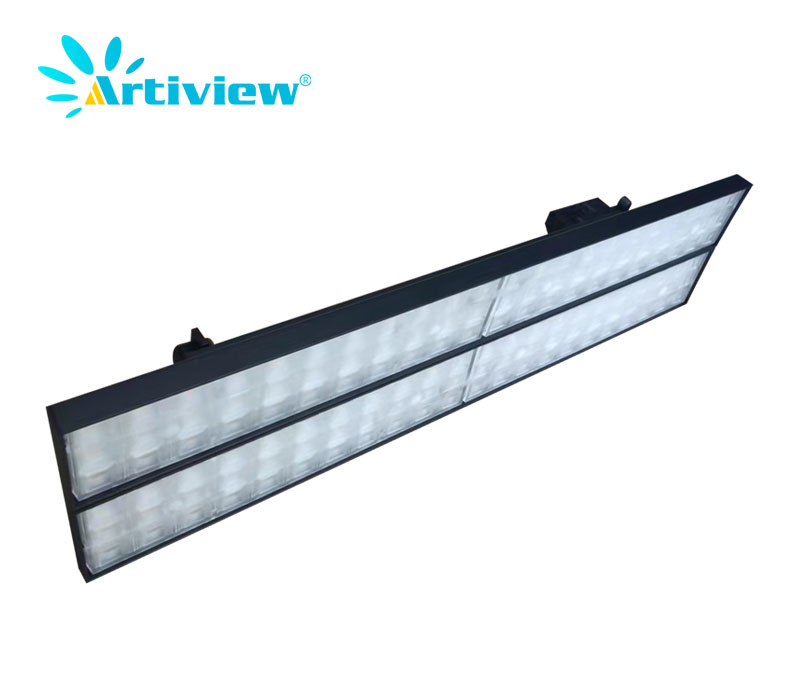

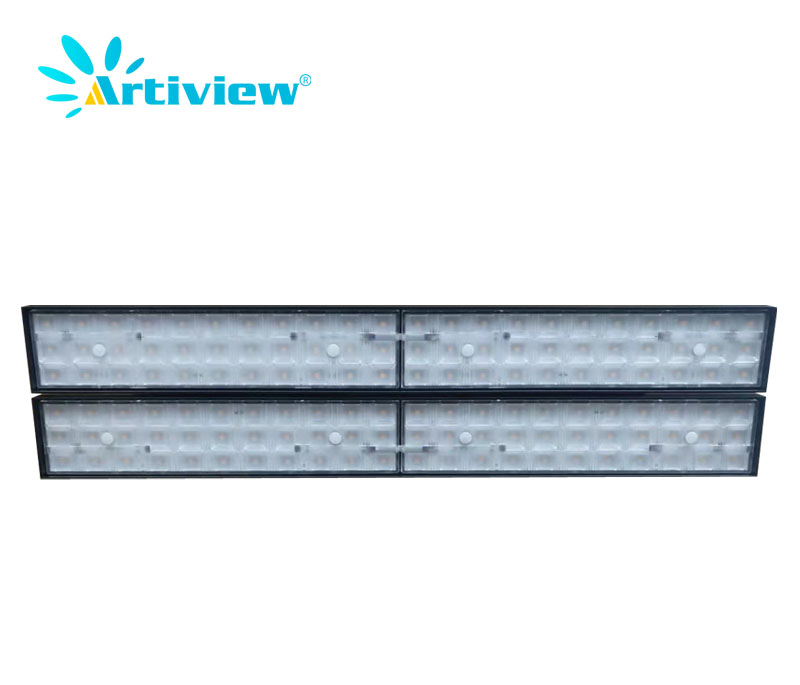

50W Led track panel Light 45° angle adjust panel light for supermarket clothing shops

Full Product Code:PS-TPL50W
  • General Information
  • Feature
  • Installation
  • Download

Decription

Factory direct sales High-end quality 50w led track panel light for clothing store, library, shopping mall, supermarket. CRI80/90Ra track panel light can meet different guests requires. Our track panel light choose famous brand lens and we can provide five years warranty. What's more we pass the CE/RHOS certification. Our products have been well received by many customers and are often used in engineering projects. Besides, our factory covers an area of 2000 square meters and we can produce ten million per mounth.


General Information

Power 50W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011) / White (9016)
Housing Size582*138*18.7mm
Angle Adjust
45°
LIGHT Source BrandOsram
CCT3000/4000/5000K
Driver BrandTridonic/Osram/Philips/Boke
Optics TypeLens
Beam Angle60/90
UGR19
Warranty5years
Track Adapter 2/3/4wires
IP ClasssIP20


Lighting Feature

PowerCCTCRISDCMLuminous Flux
50W3000KRa>80<35900LM(118m/w)
Ra>90<35500lm(110lm/w)
Ra>97<35000lm(100lm/w)
4000KRa>80<35750LM(115lm/w)
Ra>90<35500lm(110lm/w)
Ra>97<35250lm(105Lm/w)


Operating and Electrical

Power 50W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS

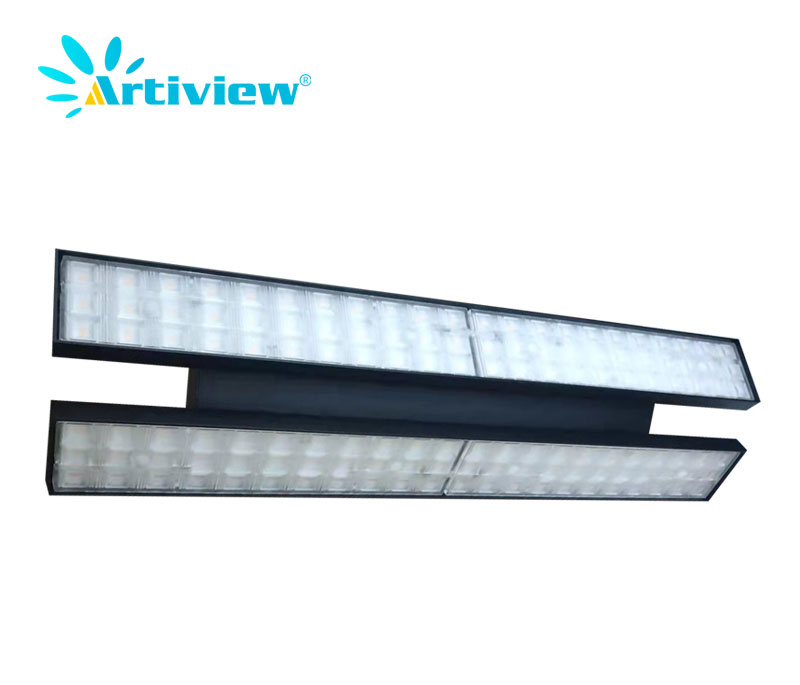

45° adjustable on both sides, 60/90/120°multi-angle stereo projection

Artiview 50W led led panel track lighting system to achieve multi-angle stereo light, also can be stable positioning in any direction, from different directions in different positions to display goods, more stereoscopic and more prominent show the characteristics of the main goods, do not leak any details.

400 01.jpg


Flicker free, low power consumption

Artiview 50W track panel lighting uses high PF flicker free power supply, in line with the new Regulations of The European electrical standard, to avoid serious strobe lamp on eyes and brain irreversible damage, PF>0.9, low power consumption, reduce the loss of electricity, reduce the waste of resources.

400 02.jpg


Low UGR, no glare, uniform color

Artiview 50W adjustable track panel light uses high-quality lens, professional light distribution optimization design, maximizes the light pass rate, reasonable reflection surface and special processing, soft and uniform light, UGR<19, no glare, no glint, effectively avoid customers shopping discomfort, to create a happy shopping environment for customers.

400 03.jpg

Rail installation without ceiling, low cost

Artiview 50W lens led panel track lighting patented design products, track light rail can be installed on the surface can also be suspended, different installation methods with flexibility to meet the needs of different occasions lighting design, lifting without chandelier, reduce wiring and labor costs, low cost.

400 04.jpg



Temperature Test


Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the  temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led junction temperature is 150℃
