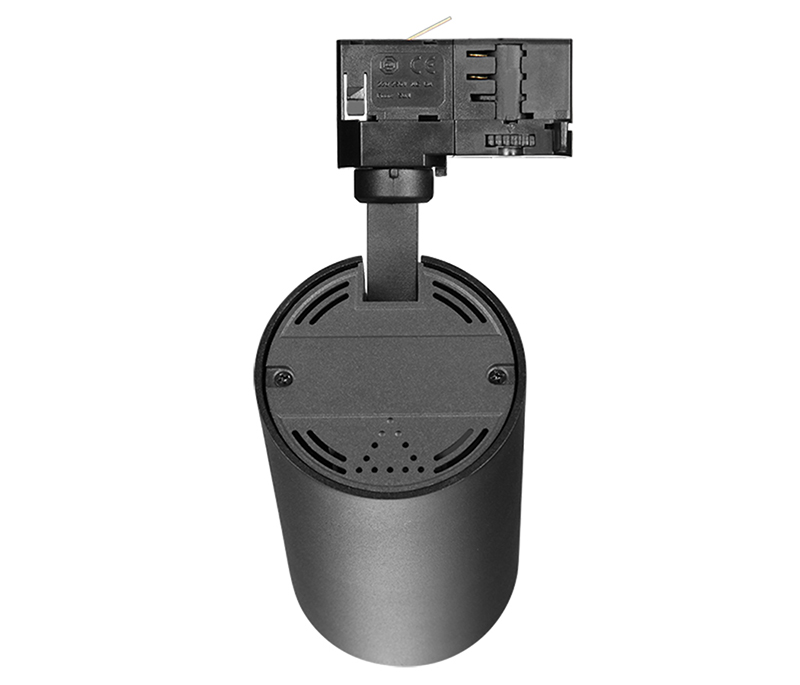

140lm/w 20w remote control led track light

  • General Information
  • test

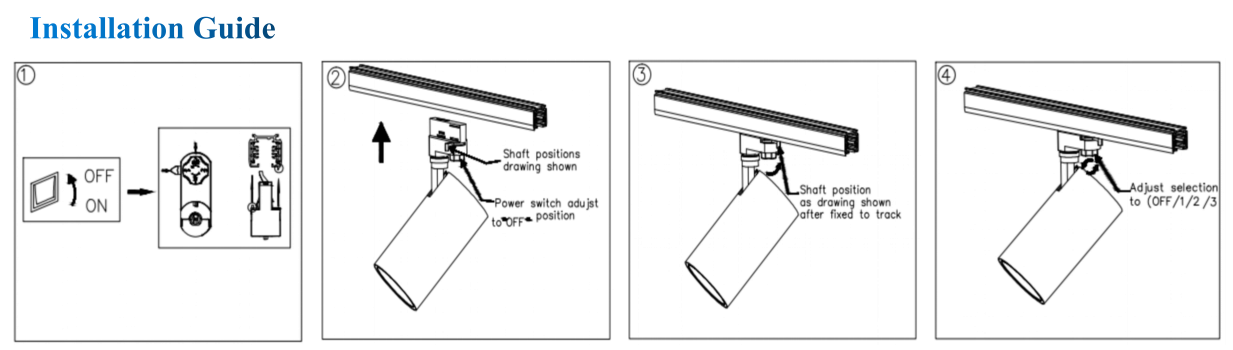

  • Installation
  • Download

Decription

 20W led track light flicker free is powerstar popular model, max 140lm/w with Citizen/luminus/Cree chip.5years warranty for osram/philips/tridonic driver,powerstar led track lighting fixture all have good CRI80/90/97. Beam angle 24/38/60degree used for shopping mall,supermarket/musem/office/clothes store. also good UGR soft light to protect eyes.

General Information


Power 20W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack (9011) / White (9016)

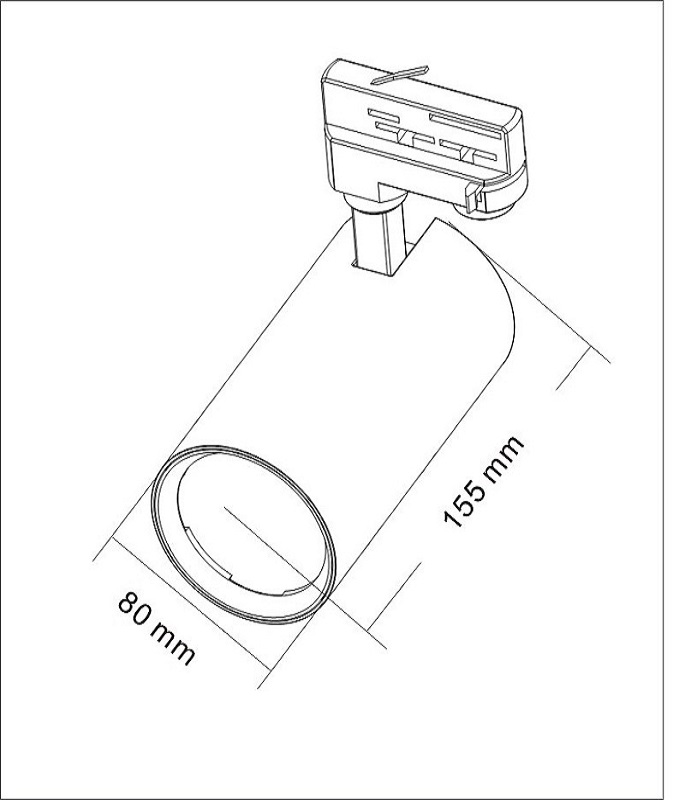

Housing Size80*155 mm
Light Source BrandCree /Citizen/Luminus COB
CCT2700/3000/3500/4000/5000/5700K
Driver BrandOsram/Philips/Tridonic/Archi
Beam Angle24°/38°/60° Reflector
UGR15
Warranty5 Years
Track Adapter 2/3/4/6 Wires
IP ClasssIP20
Qty/Cartons15PCS/CTN  GW14Kg
Carton Size46*28*27cm


Lighting Feature


PowerCCT (Nom)Color Rendering IndexSDCMNOM Luminous Flux (Efficient )Light Decay (10000hs)
20W/25W3000KCRI>80<32800LM(140lm/w)<3%
CRI>90<32099lm(104lm/w)<3%
4000KCRI>80<33500LM(140lm/w)<3%
CRI>90<32132lm(106lm/w)<3%


Operating and Electrical


Power 20W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS

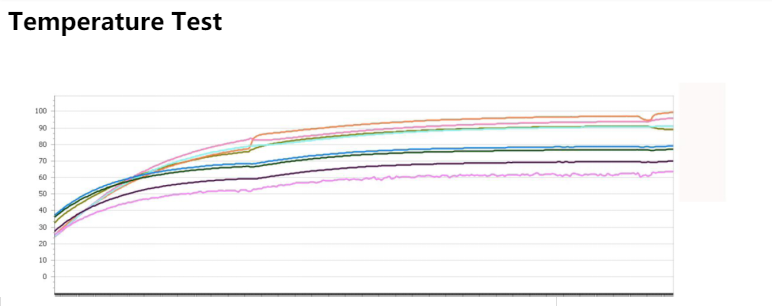

Temperature


- The testing is operated at 25℃

- The lifetime of capacitol ,minimum of 8000 hours if operatd at 105℃,will be doubled whenever the temperature drops 10℃

- The highest withstand temperature of IC,MOS couldbe 120℃

- The highest withstand temperature of led juncton temperature is 150℃

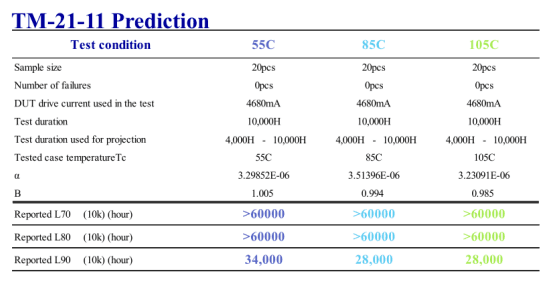

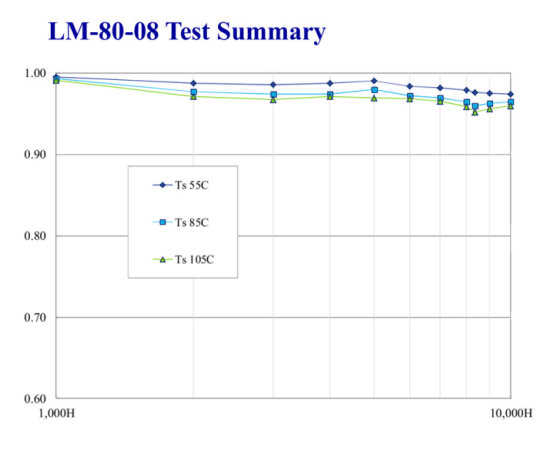

LM21&LM80
