Home  >>  Popular Products  >>  LED Track Light  >>  LED Track Light X16 I  >>  LED Tracklight X16 I80
  • 120-130lm/w 30w/35w dali track lighting
  • 120-130lm/w 30w/35w dali track lighting
  • 120-130lm/w 30w/35w dali track lighting
  • 120-130lm/w 30w/35w dali track lighting

120-130lm/w 30w/35w dali track lighting

Full Product Code:PS-TL-30W/35W-X16I80
  • General Information
  • Feature

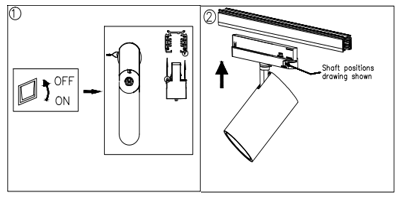

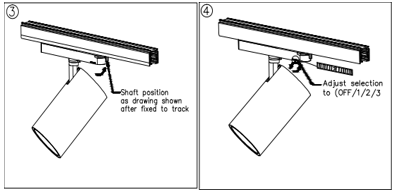

  • Installation
  • Download

Description

As you know, Shenzhen powerstar technology limited company can produce the good quality tracklight .We are a good tracklgiht factory .Our company set sales and produce and rearch in one .We pay attention to research the high end tracklight for our customers .Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty .And we pass the CE/RHOS certification .You can trust my tracklight quality.


General Information

Power 30W/35W
Housing MaterialDie-casting Aluminum
Housing ColorBlack(9011)/White(9016)
Housing Size80*155mm
Light Source BrandCree/Citizen /Luminus COB
CCT2700/3000/3500/4000/5000/5700k
Driver BrandAllooking /Global /Powergear
Beam Angle24/38/60° Reflector
UGR19
Warranty5years
Installation Method2/3/4wires
IP ClasssIP20
Qty/Cartons16PCS/CTN  GW18.9Kg
Carton Size47*47*55cm

Lighting Feature


PowerCCTCRISDCMLuminous Flux
30W/35W3000KRa>80<3120lm/w
Ra>90<3110lm/w
4000KRa>80<3130lm/w
Ra>90<3125lm/w


Operating and Electrical


Power 30W/35W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Dimmable 0-10v/Triac /Dali/Casabi



Temperature Test

20w cob track spot lighting fixture

Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the  temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led junction temperature is 150℃


 LM21&LM80

7w track light living room warm white ra977w track light living room warm white ra97
