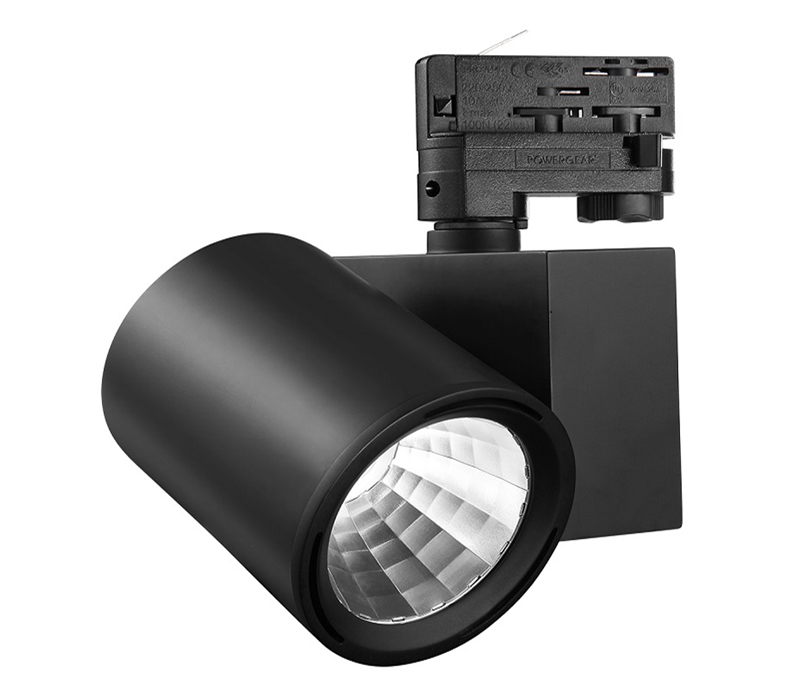

35w 150lm/w 5200lm replace to metal halogen lamp led trackspotlighting
- General Information
- Feature

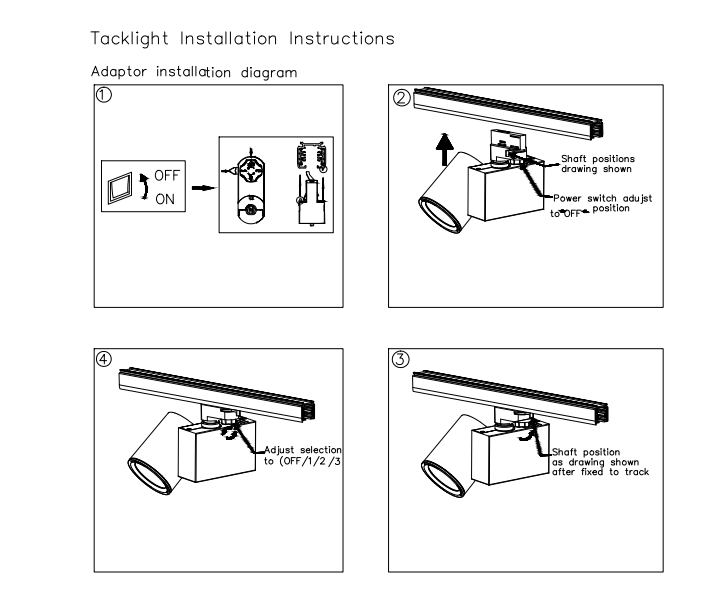

- Installation
- Download
General Information
| Power | 30W/35W |
| Housing material | Die Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |

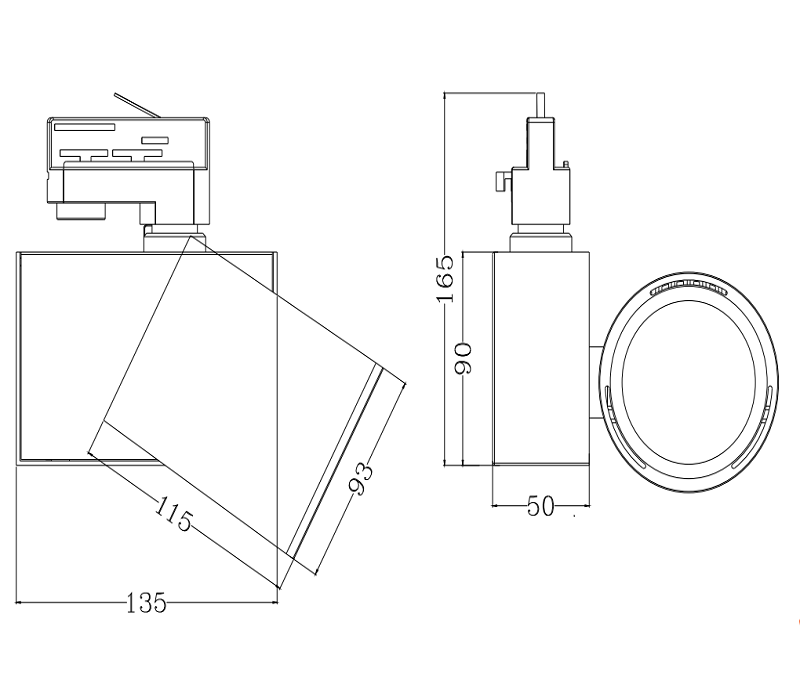

| Housing Size | 93*115mm |
| Light Source Brand | Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Beam Angle | 20/30/45/60° Reflector |
| UGR | 19 |
| Warranty | 5years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 10Pcs/GTN GW16Kg |
| Carton Size | 55*53.5*29.5cm |
Lighting Feature
| Power | CCT(nom) | Color Rendering Index | SDCM | NOM Luminous Flux(Efficient ) | Light Decay(10000hs) |
| 35W | 3000K | CRI>80 | <3 | 5250LM(145lm/w) | <3% |
| CRI>90 | <3 | 4200lm(120lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 4900LM(140lm/w) | <3% | |
| CRI>90 | <3 | 4375lm(125lm/w) | <3% |
Operating and Electrical
| Power | 30W/35W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | 0-10V/Triac/Dali/DMX/Bluetooth/Wireless Remote |
Decription
Our tracklight use citizen chip, we can make high luminous 140lm/w actually test LED tracklight. 2700/3000/3500/4000/5000/6000K CCT tracklight can meet different guests requires. And we can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful.Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty .And we passed the CE/RHOS certification .You can trust my tracklight quality.

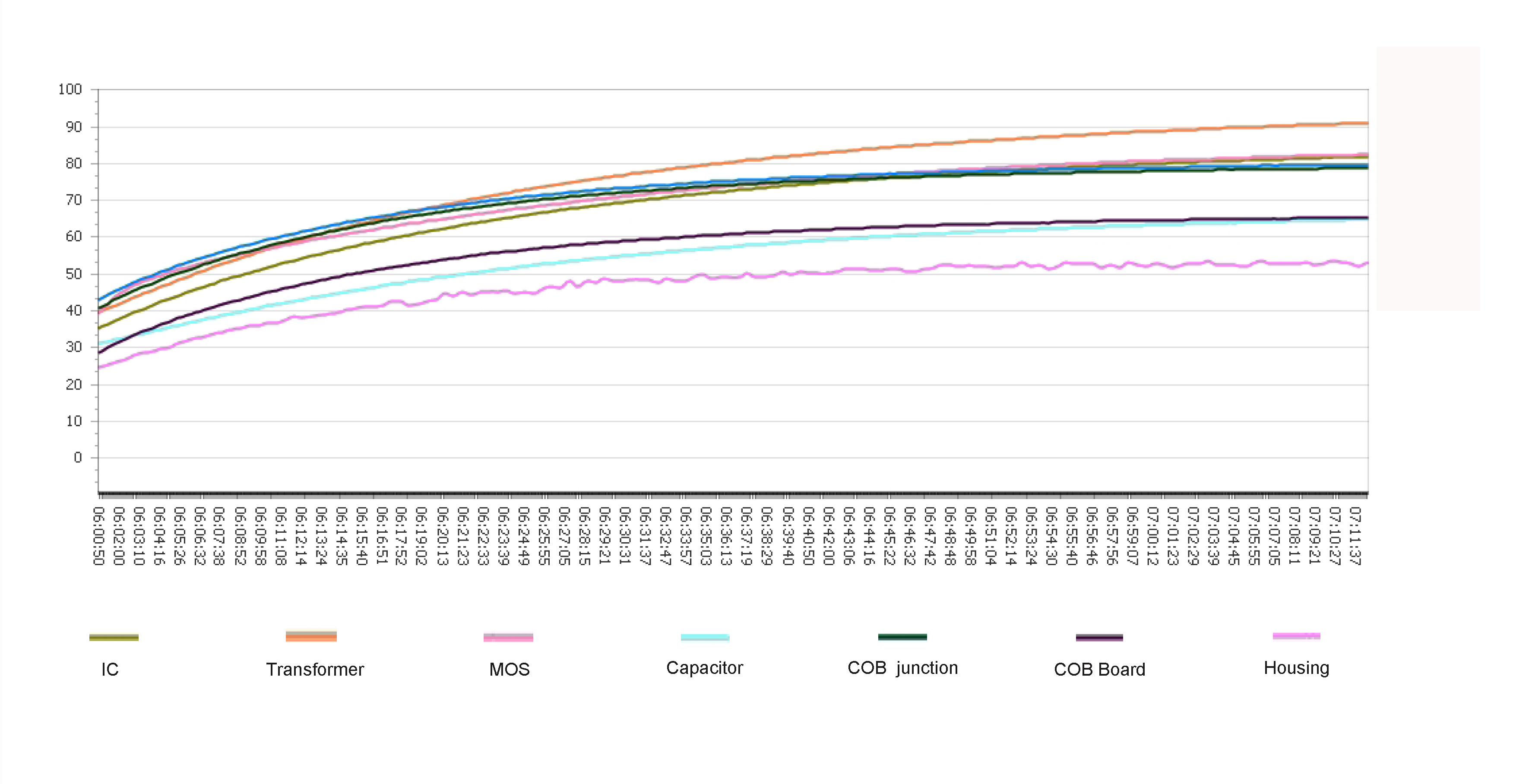

Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitor, minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature is 150℃

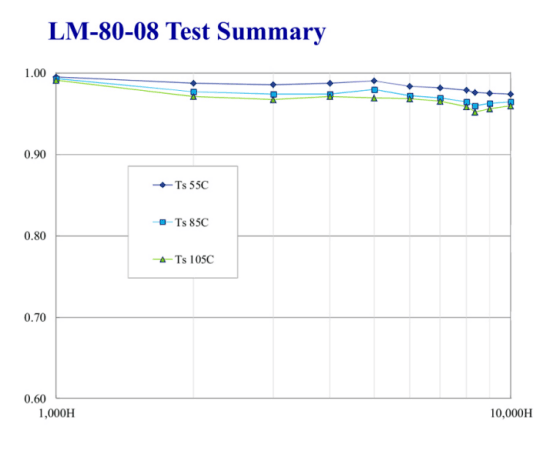

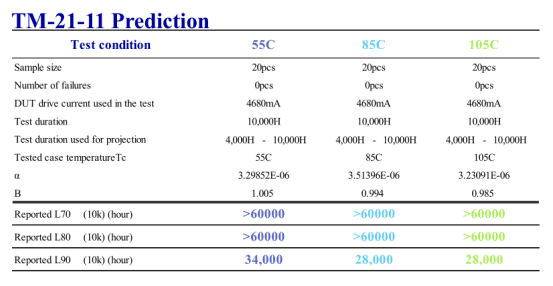

LM21&LM80
