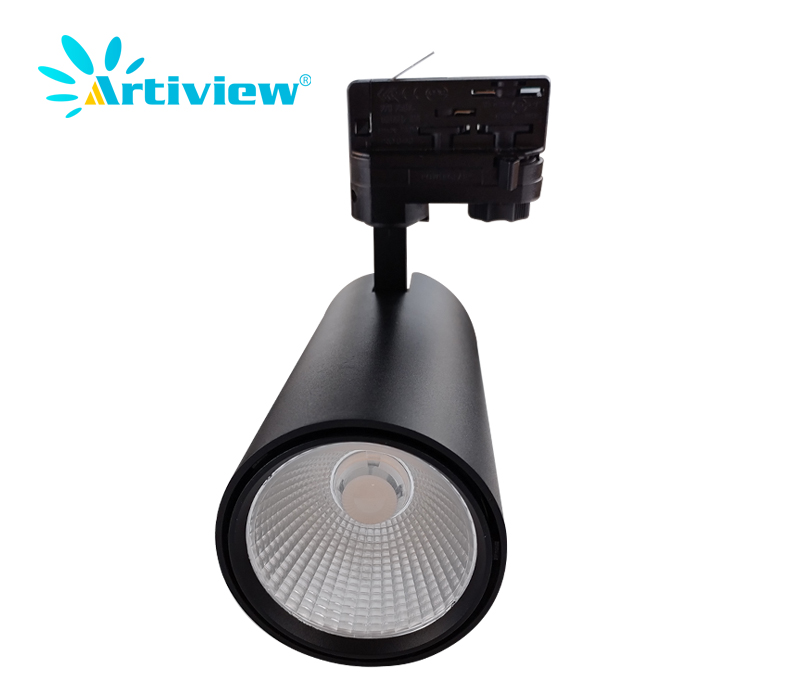

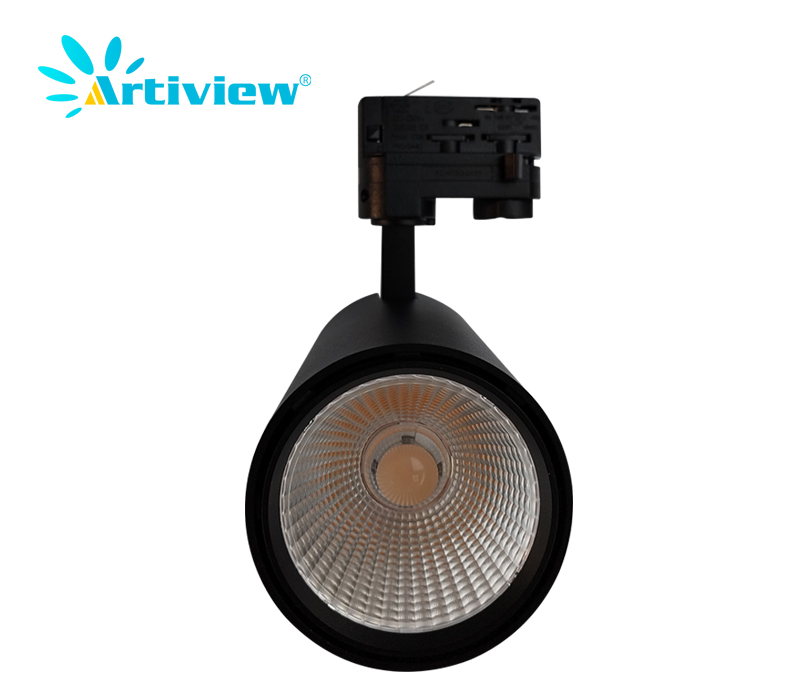

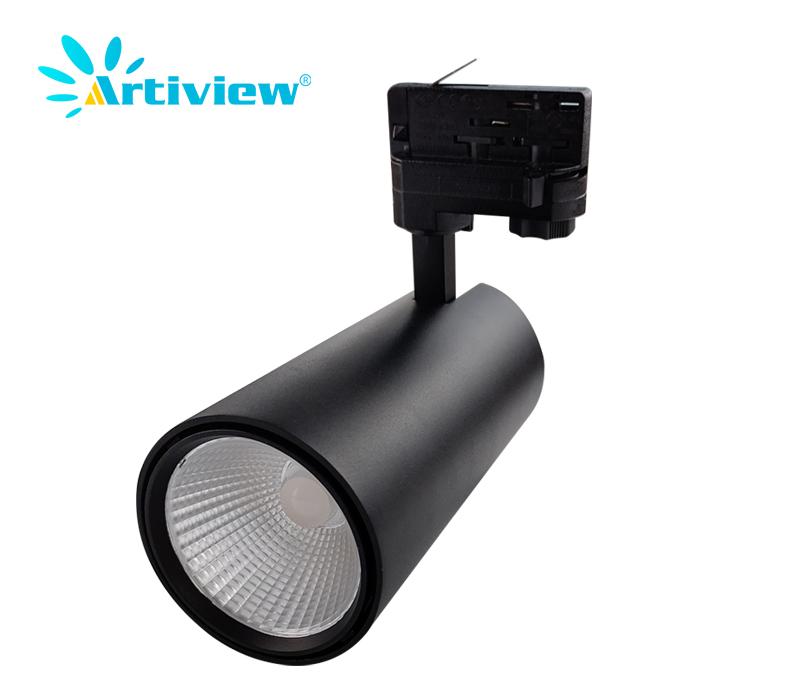

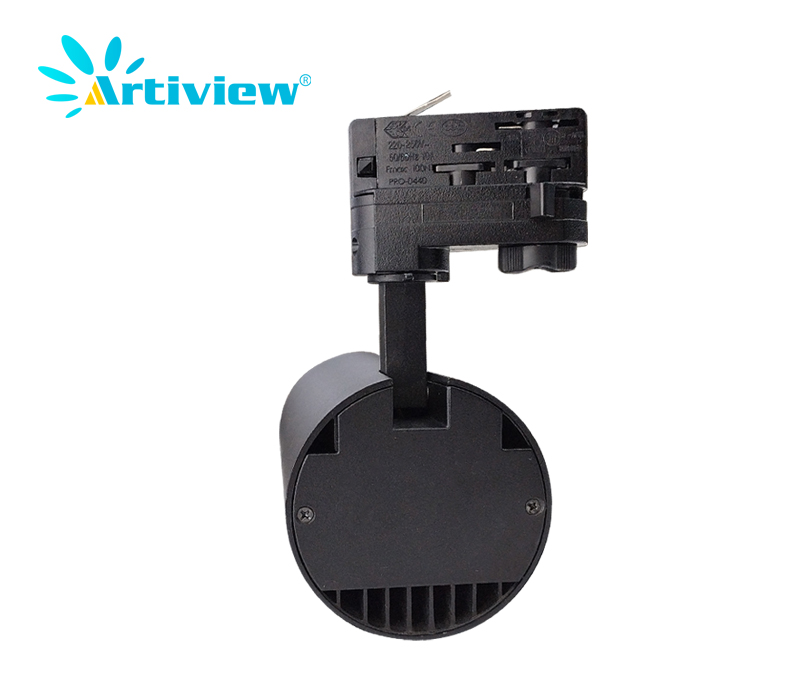

30w led track light supplier for supermarket

Full Product Code:PS-TL-30W-X16A90
  • General Information
  • Feature
  • Installation
  • Download

Decription

Powerstar is strong 30w led track light supplier with stock for 10000pcs,led track light 30w use citizen/luminus chip with CRI83/90/97, internal driver osram/philips/tridonice 5years warranty. powerstar 30w led track light has passed CE/TUV/SAA/CB/ENEC certifiction.

Another advantage, good design led track light with enough space inside,dali led track light 30w with internal driver is popular and well sold. also other dimmable led track light such as 0-10v/bluetooth/wireless/remote control/triac dimmable function good result.

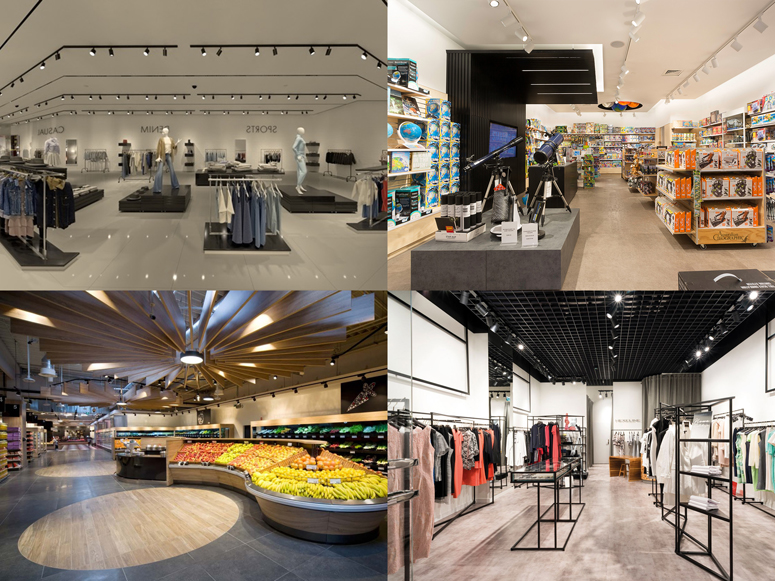

Powerstar 30w led track light widely use in shopping mall,museum,office, supermarket,clothes store,car shops...

General Information


Power 30W
Housing materialDie-casting Aluminum
housing ColorBlack (9011)/White (9016 )

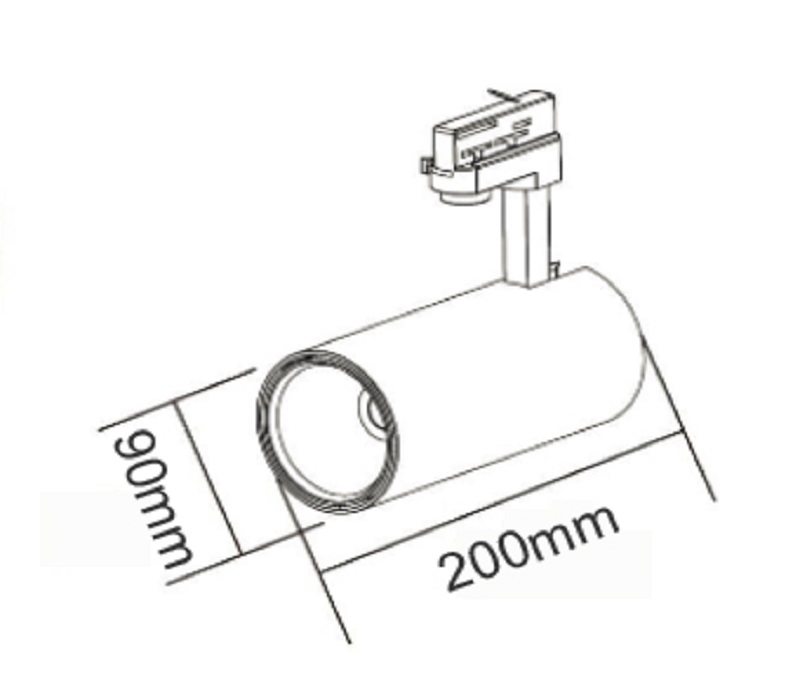

Housing size90x200mm
LIGHT source brandCitizen/Cree/Luminus COB
CCT2700/3000/3500/4000/5000/5700k
Driver BrandTridonic/Osram/Philips/Boke
Beam angle15/24/38/60° Reflector
UGR19
Warranty5years
Track adapter2/3/4/6wires
IP ClasssIP20
Qty/cartons12PCS/CTN  GW16Kg
Carton size41*31*31cm

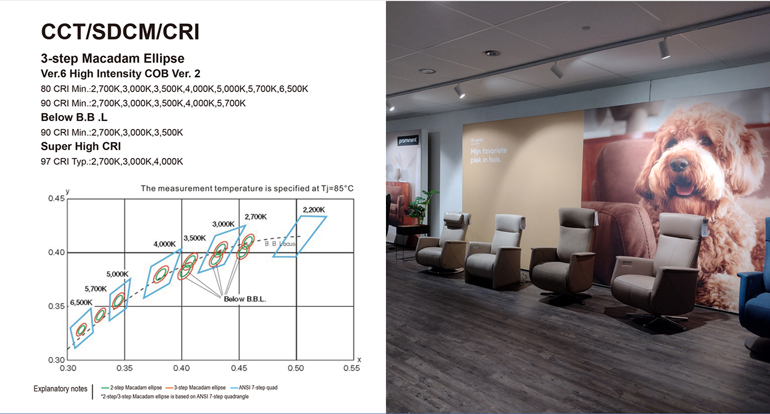

Lighting Feature

PowerCCT(nom)Color Rendering IndexSDCMNOM Luminous Flux(Efficient )Light Decay(10000hs)
30W3000KCRI>80<33240lm(108lm/w)<3%
CRI>90<32820lm(94lm/w)<3%
CRI>97<32490lm(83lm/w)<3%
4000KCRI>80<33420lm(114lm/w)<3%
CRI>90<33150lm(105lm/w)<3%
CRI>97<32670lm(89lm/w)<3%


Operating and Electrical

Power 30W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
Flicker Flicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Smart controlPhilips Hue Gateway/Amazon Alexa Plus/OSRAM Lightify/IKEA Gateway/Tuya Gateway

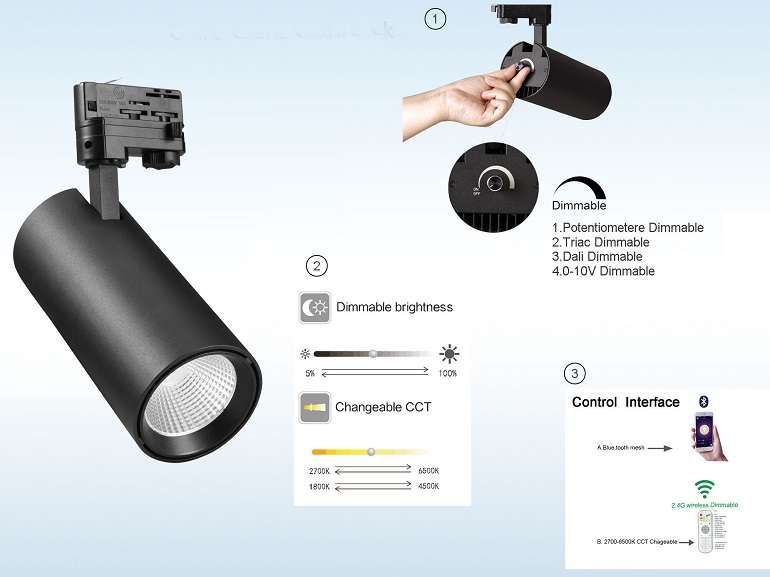

Dimmable0-10V/Triac/Dali/Push/Bluetoothmesh/Casambi/Tuya



Temperature Test

40w ceiling track light

Temperature


The testing is operated at 25℃

The lifetime of capacitol ,minimum of 8000 hours if operatd at 105℃,will be doubled whenever the temperature drops 10℃

The highest withstand temperature of IC,MOS couldbe 120℃

The highest withstand temperature of led juncton temperature is 150℃


 LM21&LM80

40w ceiling track light40w ceiling track light

led track spot light Supermarket
