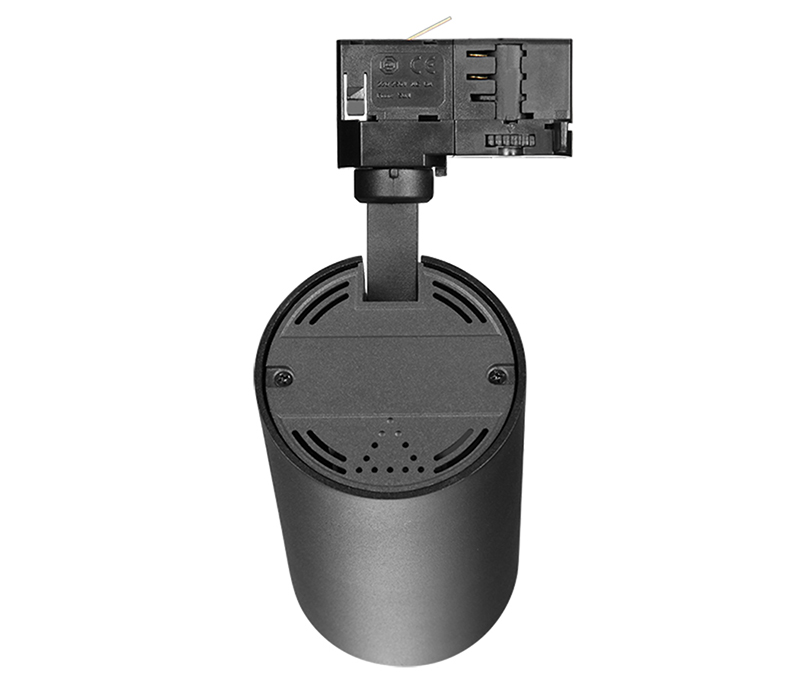

20w RGBW/RGB UGR<19 led track lighting

  • General Information
  • Feature
  • Installation
  • Download

Decription

 20W led track light flicker free is powerstar popular model, max 150lm/w with Citizen/luminus/Cree chip.5years warranty for osram/philips/tridonic driver,powerstar led track lighting fixture all have good CRI80/90/97. Beam angle 24/38/60degree used for shopping mall,supermarket/musem/office/clothes store. also good UGR soft light to protect eyes.

General Information


Power 20W
Housing materialDie-casting Aluminum
housing ColorBlack/White
Housing size80*155mm
LIGHT source brandCree /Citizen/Luminus COB
CCT2700/3000/3500/4000/5000/5700k
Driver Brandosram/philips/tridonic/Archi
Beam angle24°/38°/60°Reflector
UGR15
Warranty5years
Track adapter 2/3/4/6wires
IP ClasssIP20
Qty/cartons15PCS/CTN  GW14Kg
Carton size46*28*27cm


Lighting Feature


powerCCTCRISDCMLuminous Flux
20W/25W3000KRa>80<33000LM(150lm/w)
Ra>90<32099lm(104lm/w)
4000KRa>80<33750LM(150lm/w)
Ra>90<32132lm(106lm/w)


Operating and Electrical


Power 20W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
