150Lm/w led track lighting 20W/25W 5years warranty
- General Information
- Feature

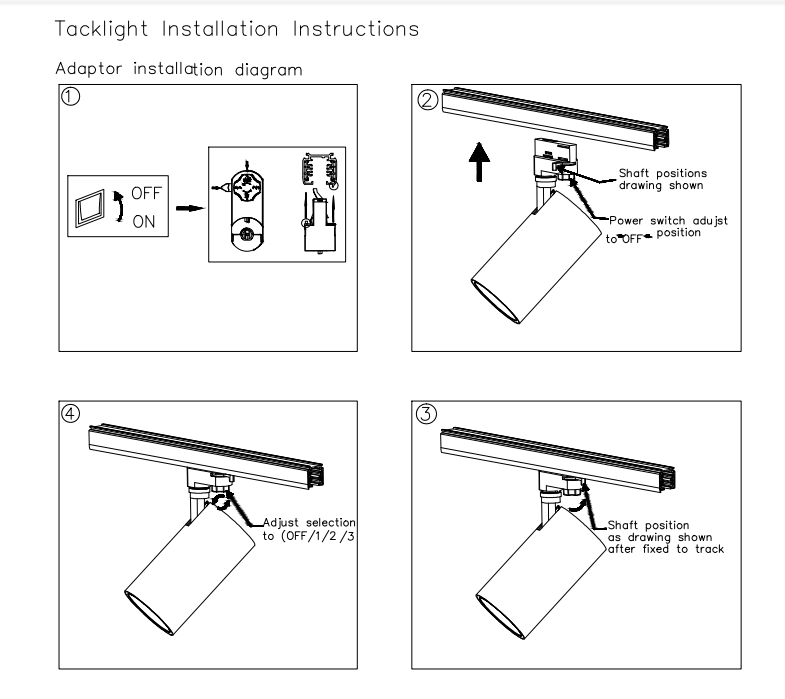

- Installation
- Download
Decription

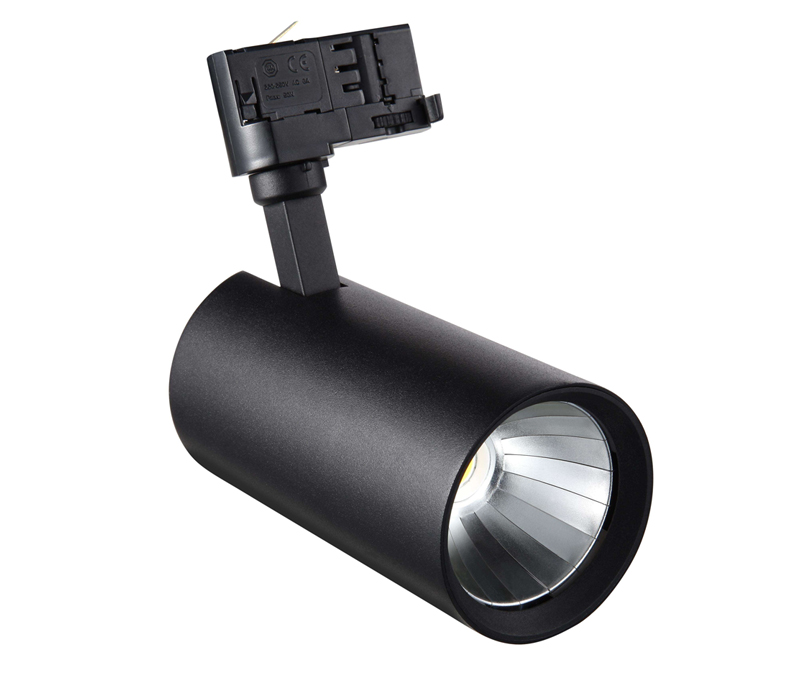

20W25W led track light flicker free is powerstar popular model, max 150lm/w with Citizen/luminus/Cree chip.5years warranty for osram/philips/tridonic driver,powerstar led track lighting fixture all have good CRI80/90/97. Beam angle 24/38/60degree used for shopping mall,supermarket/musem/office/clothes store. also good UGR soft light to protect eyes.
General Information
| Power | 20W/25W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |

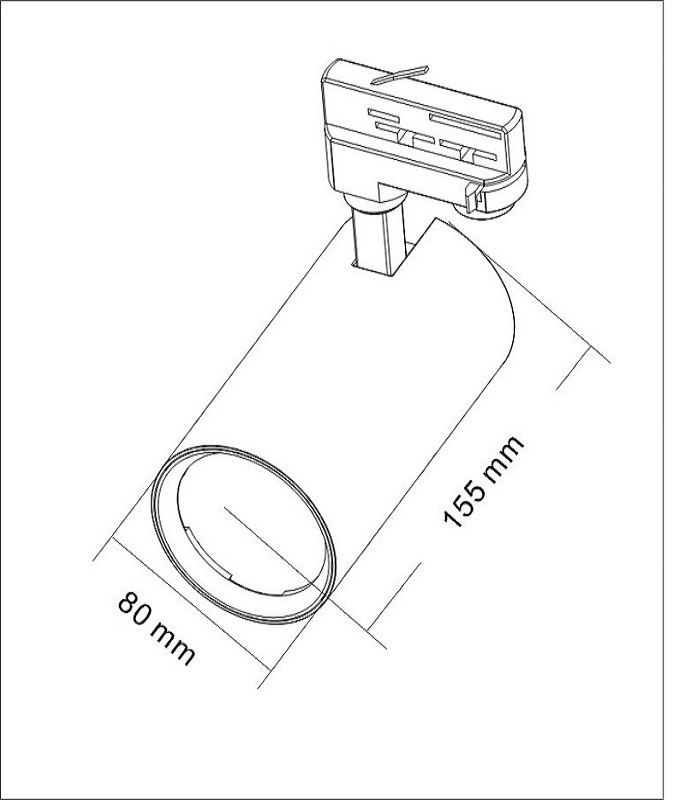

| Housing Size | 80*155mm |
| Light Source Brand | Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Osram/Philips/Tridonic/Archi |
| Beam Angle | 24°/38°/60°Reflector |
| UGR | 15 |
| Warranty | 5years |
| Track adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 15Pcs/CTN GW12.5Kg |
| Carton Size | 44.5*27.5*25cm |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 20W/25W | 3000K | Ra>80 | <3 | 3575LM(143lm/w) |
| 4000K | Ra>80 | <3 | 3750LM(150lm/w) |
Operating and Electrical
| Power | 20W/25W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |

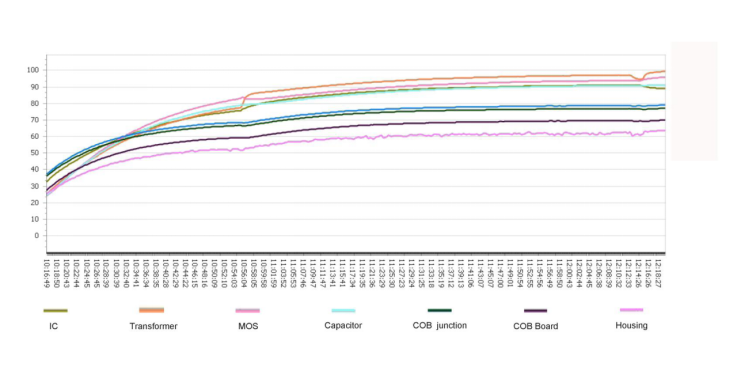

Temperature Test
Temperature
- The testing is operated at 25℃
- The lifetime of capacitol ,minimum of 8000 hours if operatd at 105℃,will be doubled whenever the temperature drops 10℃
- The highest withstand temperature of IC,MOS couldbe 120℃
- The highest withstand temperature of led juncton temperature is 150℃

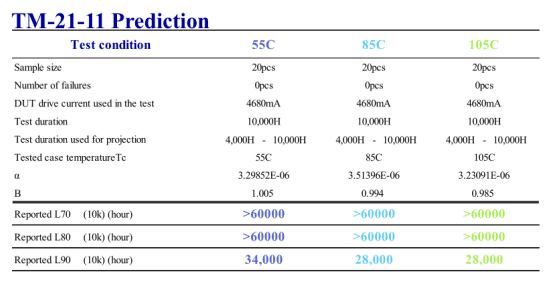

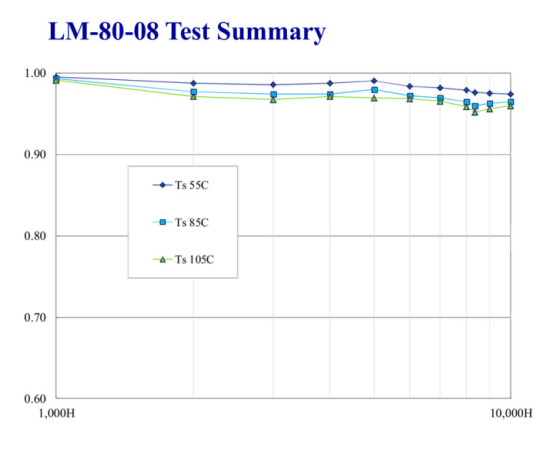

LM21&LM80
