150Lm/w 30w/35w high-light efficiency track lighting
- General Information
- Feature

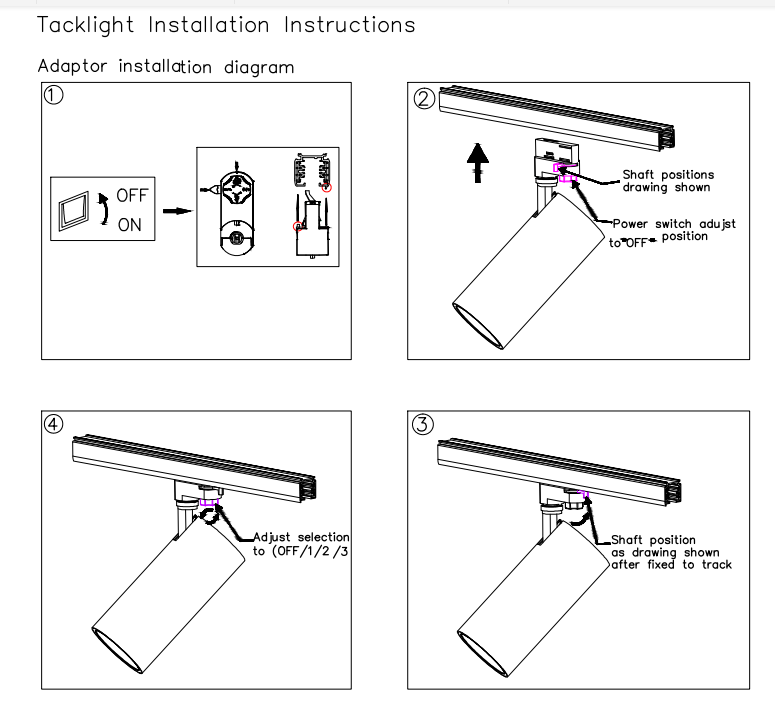

- Installation
- Download

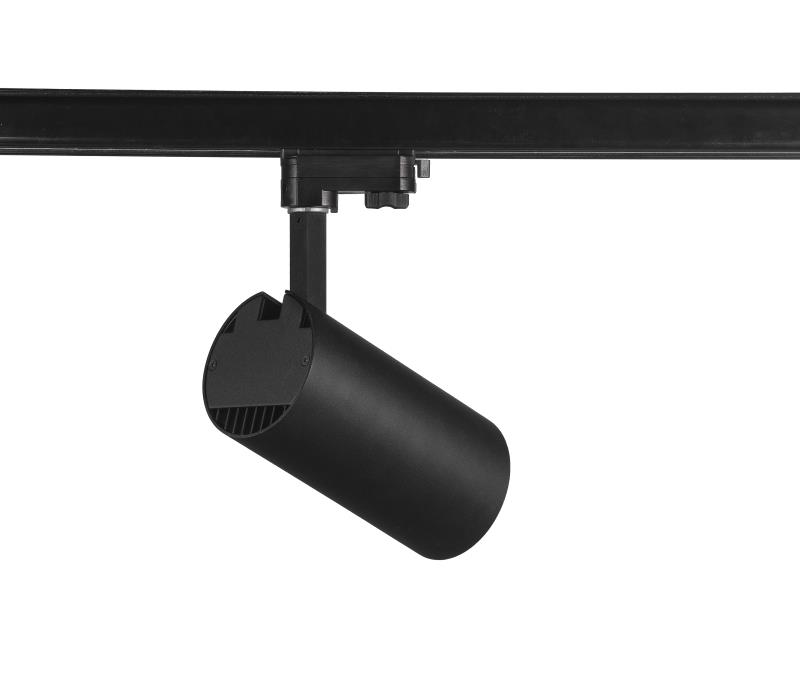

Description
The cob 30W/35W led track light is powerstar standard classic led track lighting series pecking ,use citizen/luminus chip make max 35w 5000lm to replace 70w heavy metal halid lamp perfectly,powerstar led track spotlight with internal driver osram/philips/tridonic as choice for 5years waranty , TUV/SAA/CE/CB/ENEC certification supplied. the 35w led track light fixture with 10000pcs stock,lead time 5-7days .for led track light watt ,30w led track lighting and 25w as choice.
General Information
| Power | 30W/35W |
| Housing Material | Die-casting Aluminum |
| Housing Color | Black(9011)/White(9016) |

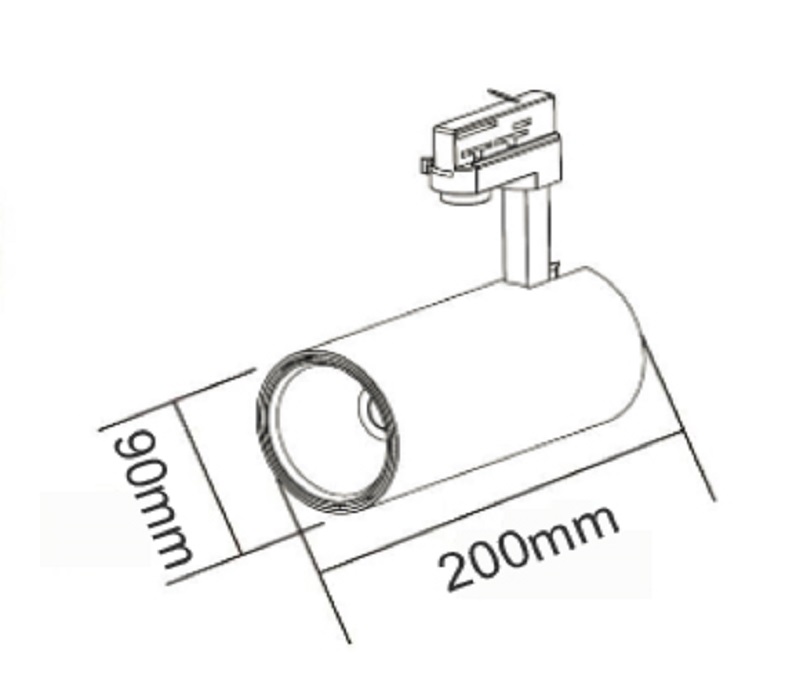

| Housing Size | 90x200mm |
| Light Source Brand | Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Beam Angle | 15/24/38/60° Reflector |
| UGR | 19 |
| Warranty | 5years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 12Pcs/GTN GW16Kg |
| Carton Size | 42*32*31cm |
Lighting Feature
| Power | CCT(nom) | Color Rendering Index | SDCM | NOM Luminous Flux(Efficient ) | Light Decay(10000hs) |
| 30w/35w | 3000K | CRI>80 | <3 | 5075Lm(145lm/w) | <3% |
| 4000K | CRI>80 | <3 | 5250Lm(150lm/w) | <3% |
Operating and Electrical
| Power | 35W/30W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | 0-10V/Triac/Dali/Push/Bluetooth/Wireless Remote |

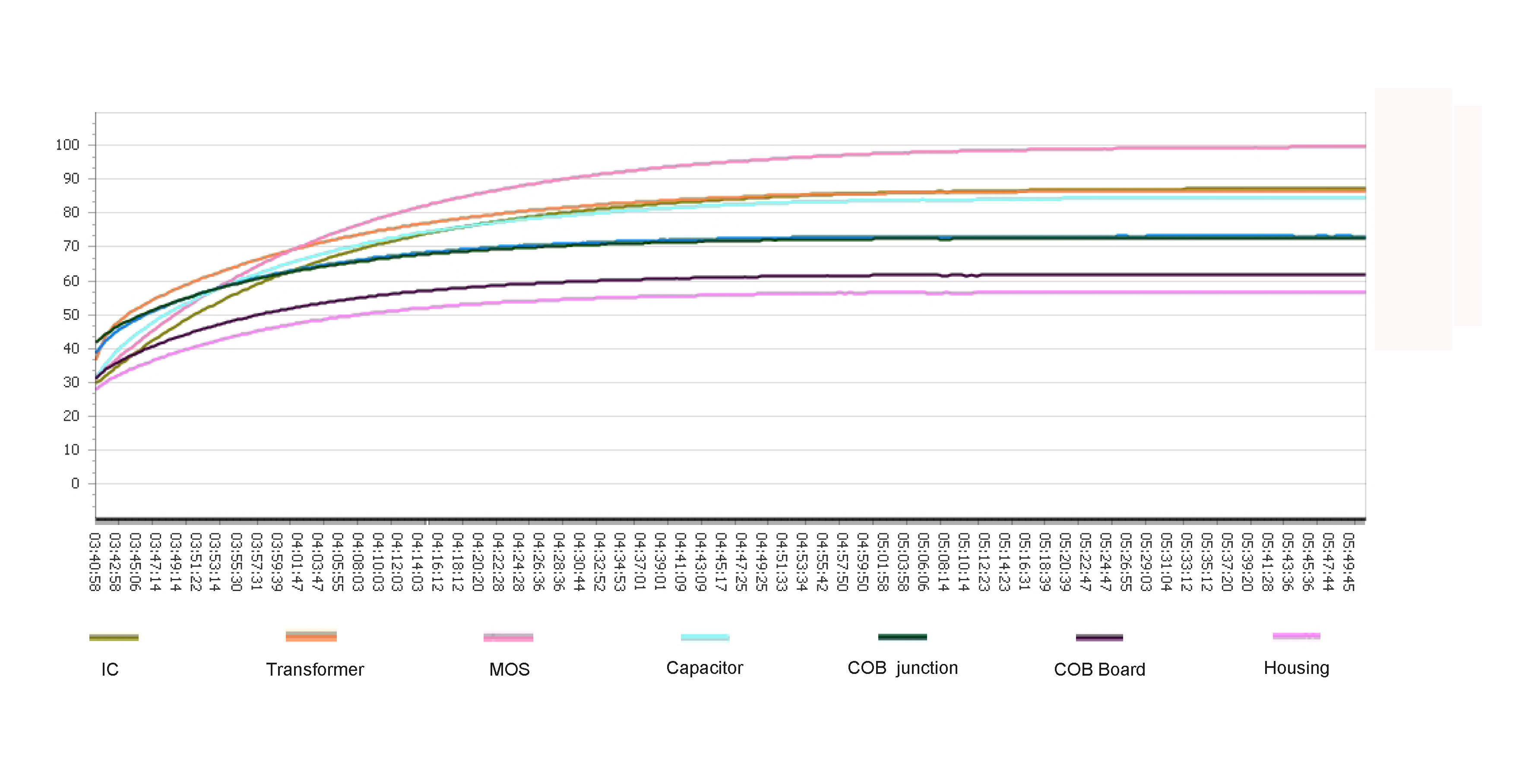

Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitol,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC ,MOS could be 120℃
The highest withstand temperature of led junction temperature is 150℃

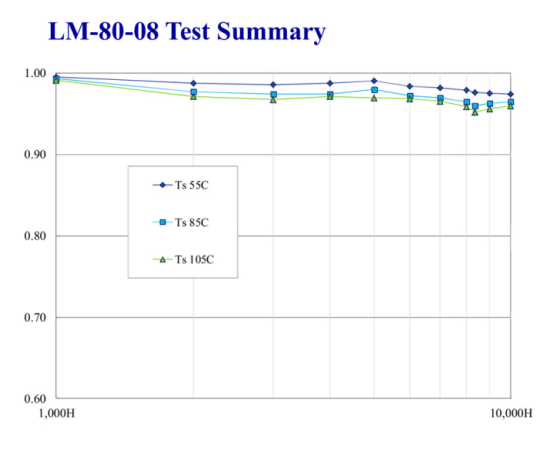

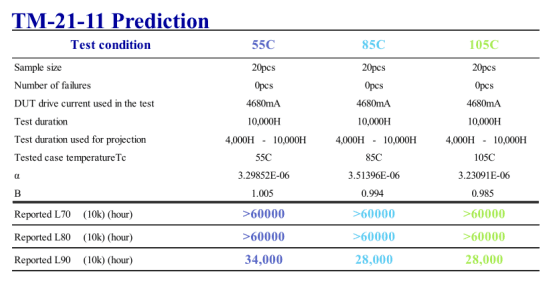

LM21&LM80
