Home  >>  Popular Products  >>  LED Linear Light  >>  LED Linear Light L31
  •  UGR<19 30w tracking mounted linear light
  •  UGR<19 30w tracking mounted linear light
  •  UGR<19 30w tracking mounted linear light
  •  UGR<19 30w tracking mounted linear light

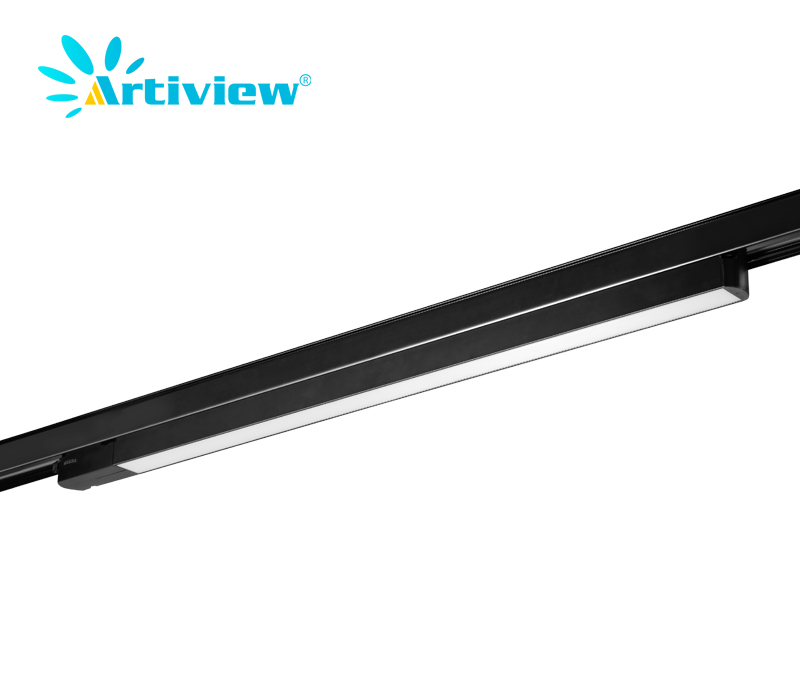

UGR<19 30w tracking mounted linear light

Full Product Code:PS-TTL-30WL31
  • General Information
  • Feature

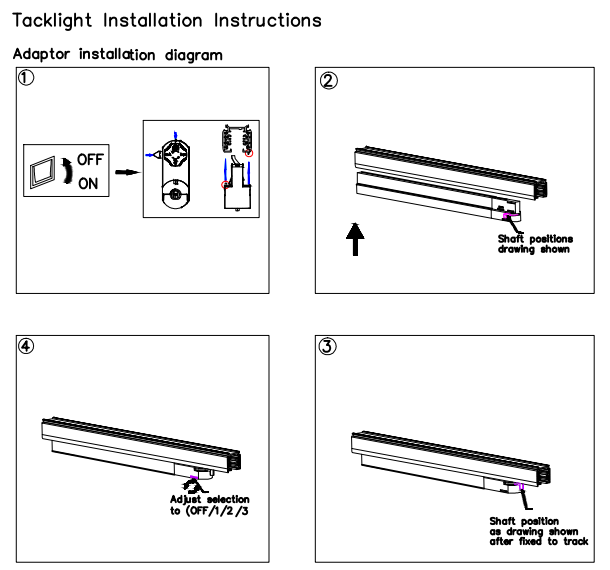

  • Installation
  • Download

Decription

2020 Simple Design Utility Convenience 30W track linear light for market/office lighting, anti-glare design UGR<19 30w track linear light for supermarket, shopping mall and office lighting.  Three options to choose, CRI80/90/97track linear light can meet different guests requires. What's more, we pass the CE/RHOS certification. Our products get high evaluation by many customers and are often used in some projects. Besides, our factory covers an area of 2000 square meters.


General Information


Power 30W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011) / White (9016)
Housing SizeW31*L1290*H48mm
Light SourceSMD2835
CCT2700/3000/3500/4000/5000/6000k
Driver BrandAGT
Optics TypeDiffuser
Beam Angle120
UGR19
Warranty3 years
Installation Method3/4 Wires
IP ClasssIP20


Lighting Feature


PowerCCT CRISDCMLuminous Flux
30W3000KRa>80<32225Lm (89lm/w)
Ra>90<32370Lm (79lm/w)
4000KRa>80<32910Lm (97lm/w)
Ra>90<32490Lm(83lm/w)


Operating and Electrical


Power 30W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS



Simple structure, beautiful shape, convenience and practicality

Artiview L31 led linear track lights heat dissipation structure adopts die-cast aluminum material, excellent heat dissipation, simple and beautiful design not only brings visual impact to people, but also visual ductility, so that the corridor space is more profound, storey height is more spacious. Enhance the sense of hierarchy, can create a good overall home style atmosphere.


Ultra - consistent light - color, used Philips SMD 2835 led chip, SDCM<5

Artiview L31 track linear lights adopt Philips 2835 SEMD LED chip, color tolerance is controlled within 5 McAdam steps, to effectively ensure the height of light color consistency, so that the lighting in the same scene will not appear color difference, excellent commercial lighting effect to increase customers' desire to buy and shopping experience

600 02.jpg


Flicker free, low power consumption

Artiview L31 track linear lighting uses high PF flicker free power supply, in line with the new Regulations of The European electrical standard, to avoid serious strobe lamp on eyes and brain irreversible damage, PF>0.9, low power consumption, reduce the loss of electricity, reduce the waste of resources.

400 03.jpg

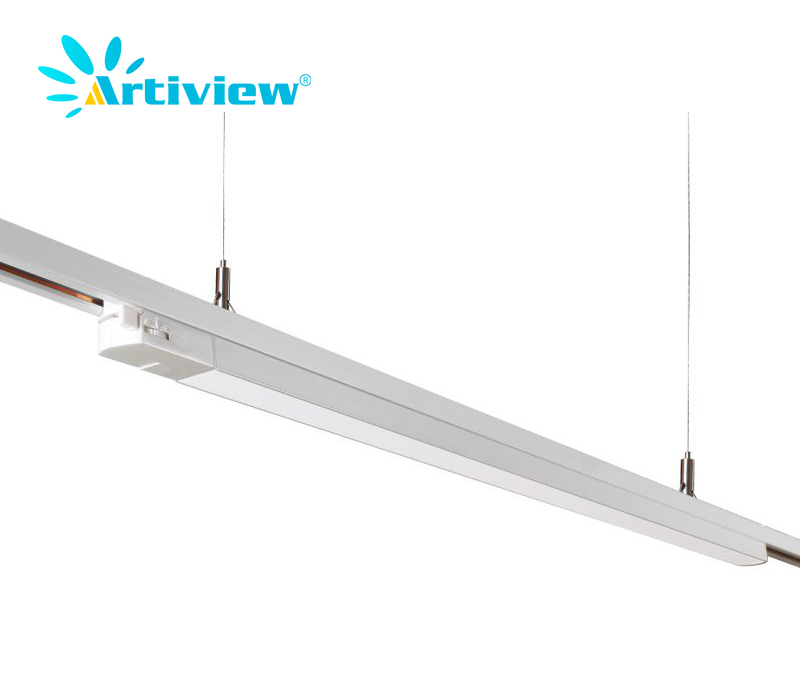

Save wiring cost and move flexibly

Compared with common led linear lights, track linear led light without doing condole top, save artificial cost of wiring, low cost, can move, flexible lighting, adjust the light intensity, can also change the direction of the light irradiation, light with motion, messenger wire can also be used to adjust the height, not limited by the height, make dimensional feeling on the vision more and more have administrative levels feeling

400 04.jpg



Temperature Test


Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operatd at 105℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IC,MOS couldbe 120℃

  • The highest withstand temperature of led juncton temperature is 150℃
