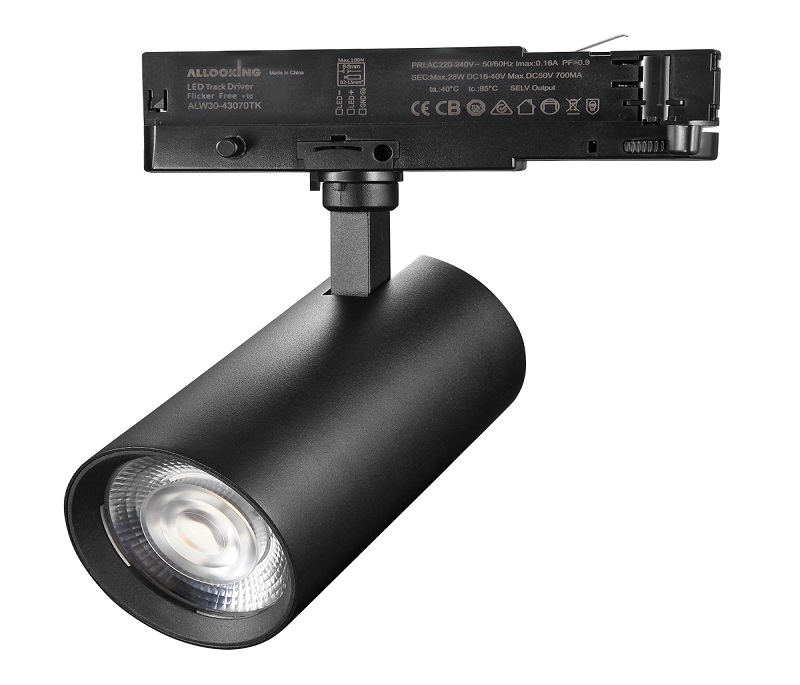

triac dimmable lighting white black track spotlighting
- General Information
- Feature
- Installation
- Download
General Information
| Power | 20W |
| Housing material | Die-casting Aluminum |
| housing Color | Black/White |

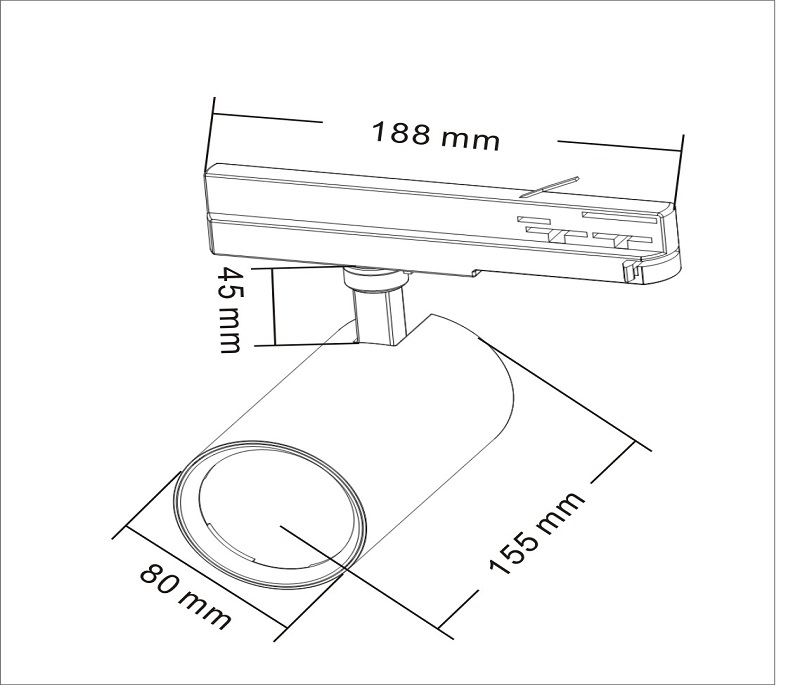

| Housing size | 80*155mm |
| LIGHT source brand | Cree/Citizen /Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Allooking /Global /Powergear |
| Beam angle | 15/24/38/60° Lens |
| UGR | 15 |
| Warranty | 5years |
| Installation method | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/cartons | 16PCS/CTN GW18.9Kg |
| Carton size | 47*47*55cm |
Lighting Feature
| power | CCT | CRI | SDCM | Luminous Flux |
| 20W | 3000K | Ra>80 | <3 | 2449LM(122lm/w) |
| Ra>90 | <3 | 2099lm(104lm/w) | ||
| 4000K | Ra>80 | <3 | 2514LM(125lm/w) | |
| Ra>90 | <3 | 2132lm(106lm/w) |
Operating and Electrical
| Power | 20W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | Triac/0-10v/ Dali |
Decription
Shenzhen powerstar technology limited company is an good tracklight supplier in china 2700/3000/3500/4000/5000/6000K CCT tracklight can meet different guests requires. And we can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful.Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty .And we pass the CE/RHOS/GS/TUV certification.You can trust my tracklight quality.

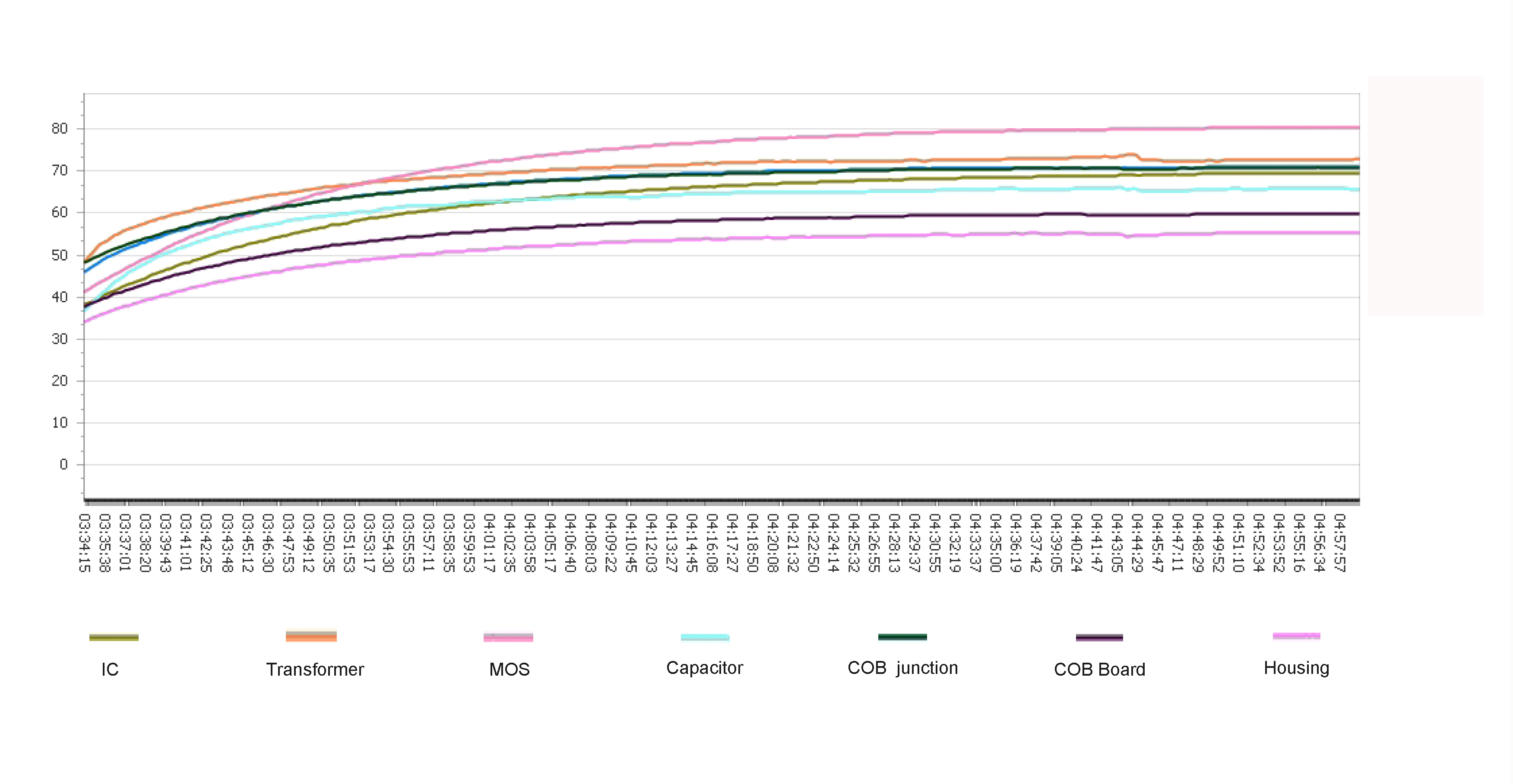

The figure of temperature rise
Temperature
The testing is operated at 25℃
The lifetime of capacitol,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature is 150℃

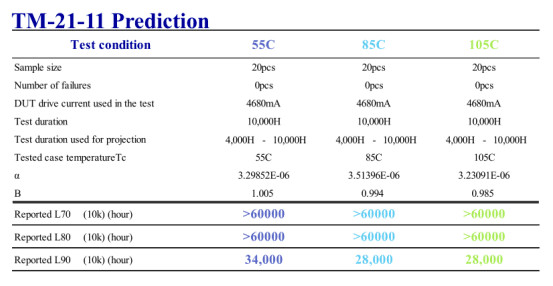

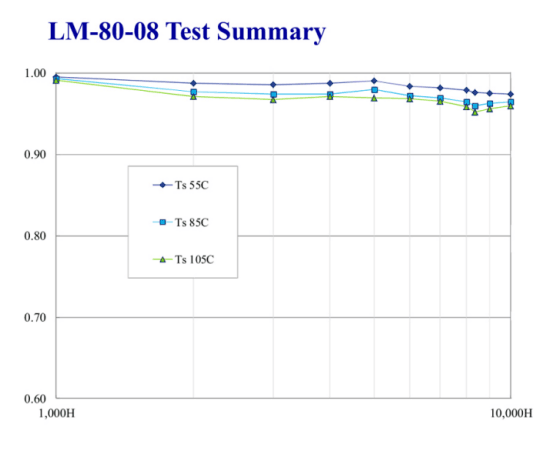

LIGHT LM21&LM80
