  • Super design IP44 30w grille downlight

Super design IP44 30w grille downlight

Full Product Code:PS-GDLS-3*30W
  • General Information
  • Feature
  • Installation
  • Download

Decription


We are led grille light supplier in china  .We have 8 years professional expenriences in led industry .We has foucsed on the grille light  for 8 years .We had researched serveral types grille light recently ,Our grille light  factory  can make CRI80/90/97 grille dwonlight . Use CRI 97 special grille light can make the objects looks more real and beauty.Our donwlight  use famous brand driver and chip .So we can provide five years warranty .And we passed TUV/SAA/CE/CB/ENEC/RoHS/GS certification .You can trust my grille light quality .


General Information


Power 3*30w
Housing materialAL
housing Colorwhite+black

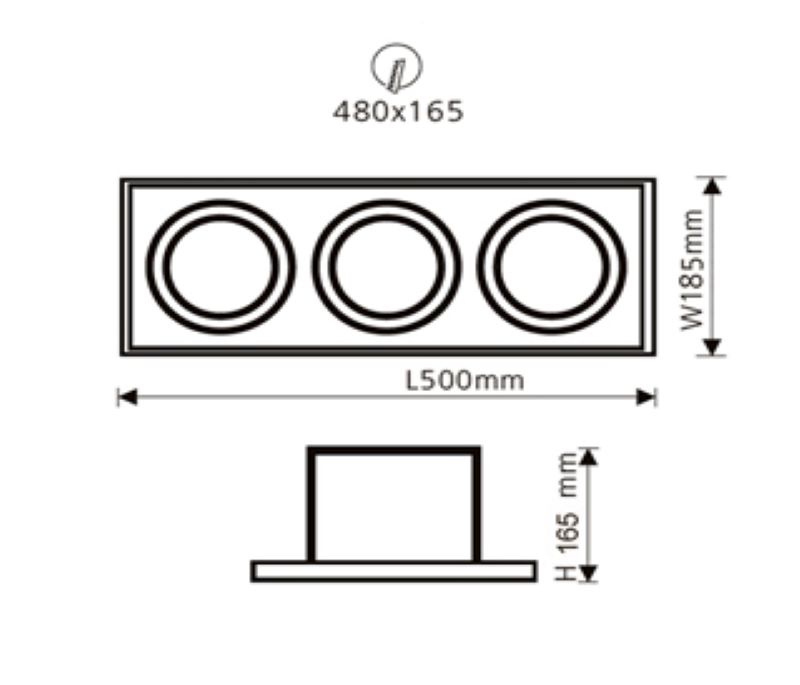

Cut hole480*165mm
Housing size L500mm*W185*H165mm
Housing Max temperature (nom)65
Light sourcecob
LIGHT source brandcitizen/Cree/luminus
CCT2700/3000/3500/4000/5000/5700k
Driver BrandTridonic/Osram/Philips/Boke
Optics typeReflector
Beam angle15/24/36/60°
Warranty5years
Test informationtest ball, IES/Ldt
Storage temperatureminus40     65
Working Temperateminus20     45
IP ClasssIP44
Applicationindoor


Lighting Feature


powerCCTCRISDCMLuminous Flux
3*30w3000KCRI>80<3103lm/w
CRI>90<398lm/w
CRI>97<380lm/w
4000KCRI>80<3110lm/w
CRI>90<3100lm/w
CRI>97<390lm/w


Operating and Electrical


Power 3*30w
Voltage220-240v/50-60hz
PF>0.95
Power efficient0.88-0.91
THD<10/<15
FlickerYES/NO
CertificationTUV/SAA/CE/CB/ENEC/RoHS/GS
Dimmable0-10V/Triac/dali/casmbi
Life Time64000hrs



LED chip we use CITIZEN COB with high brightness and low light decay, passed LM80.

Test data of LM80 and LM70 life time :

Gimbale LED Downlights

Gimbale LED Downlights

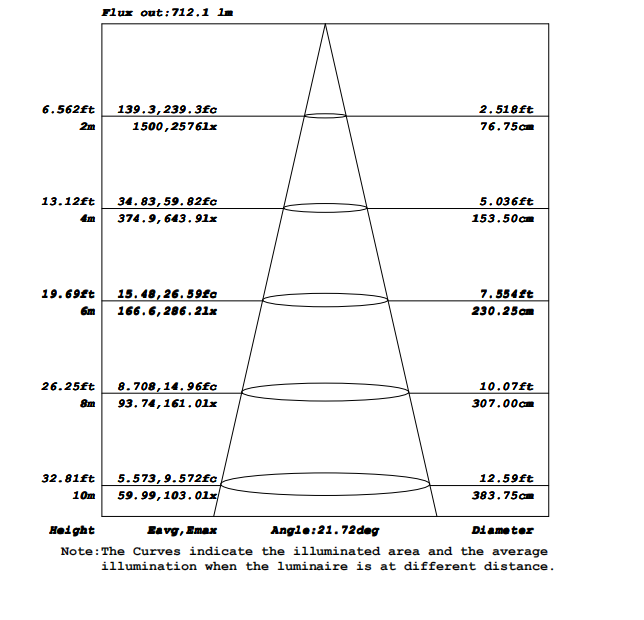

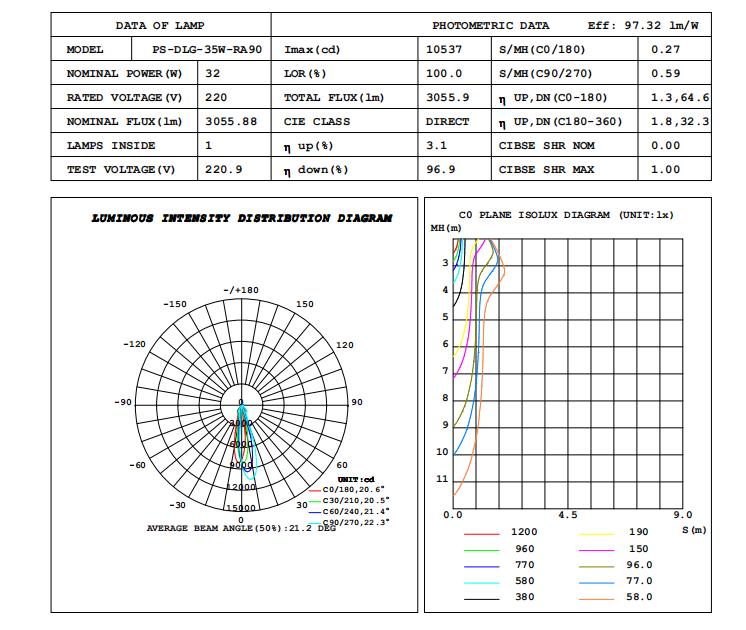

IES Test

20w 30w 35w adjustable ce rhos saa tuv approval spotlight  trunk lamp Gimbale LED Downlights

20w 30w 35w adjustable ce rhos saa tuv approval spotlight  trunk lamp Gimbale LED Downlights




2700/3000/3500/4000/5000/5700K CCT  CRI80/90/97Ra   cob double 30w  grill light
