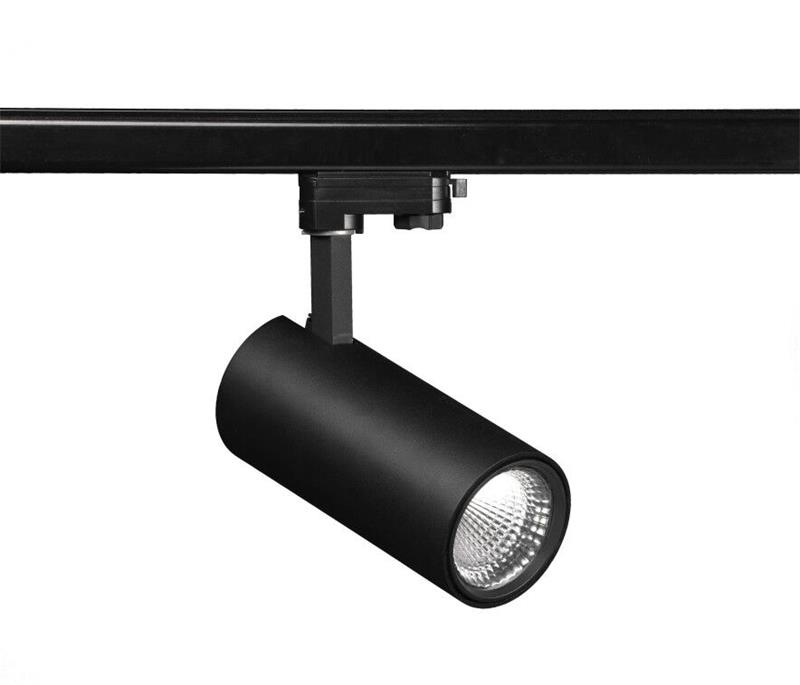

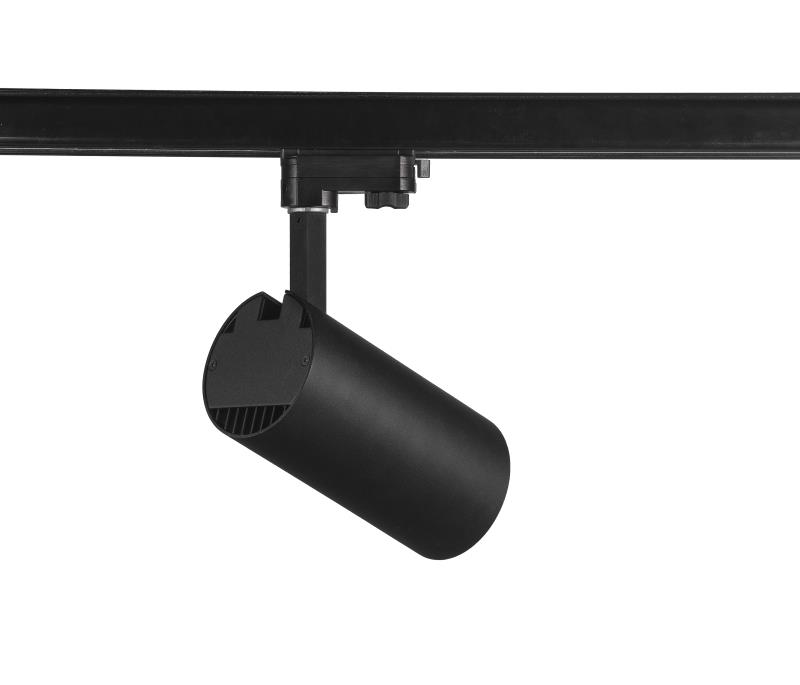

25w 12degree narrow angle track lighting

  • General Information
  • Feature

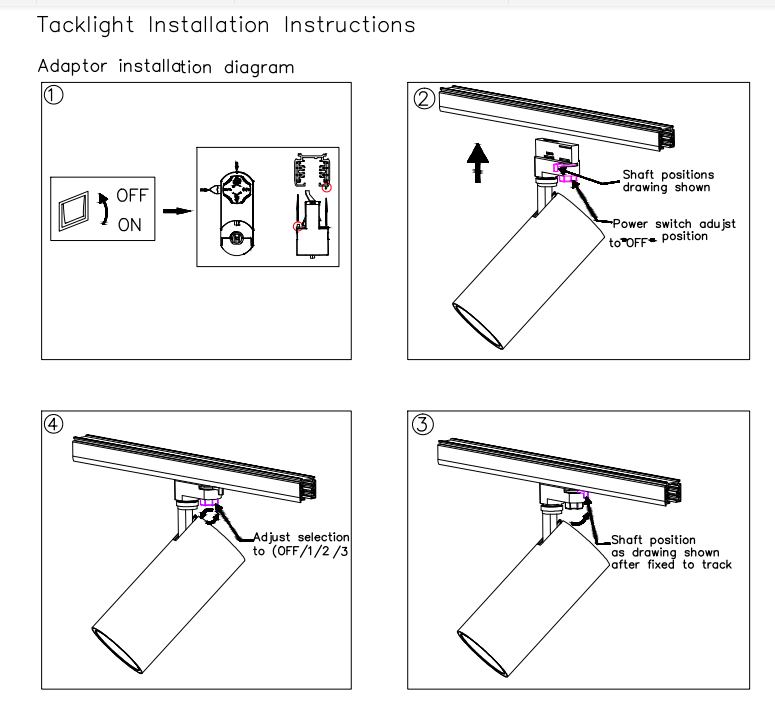

  • Installation
  • Download

General Information

Power 25W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack(9011)/White(9016)
Housing Size90x200mm
Light Source BrandCitizen/Cree/Luminus COB
CCT2700/3000/3500/4000/5000/5700K
Driver BrandTridonic/Osram/Philips/boke
Beam Angle10/12° Reflector
UGR19
Warranty5years
Track Adapter 2/3/4/6wires
IP ClasssIP20
Qty/Cartons12Pcs/CTN  GW14Kg
Carton Size42*32*31cm


Lighting Feature

PowerCCT(nom)Color Rendering IndexSDCMNOM Luminous Flux(Efficient )Light Decay(10000hs)
25W3000KCRI>80<32625Lm(105lm/w)<3%
CRI>90<32325Lm(93lm/w)<3%
4000KCRI>80<32750Lm(110lm/w)<3%
CRI>90<32375Lm(95lm/w)<3%


Operating and Electrical

Power 25W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS


Decription

We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.

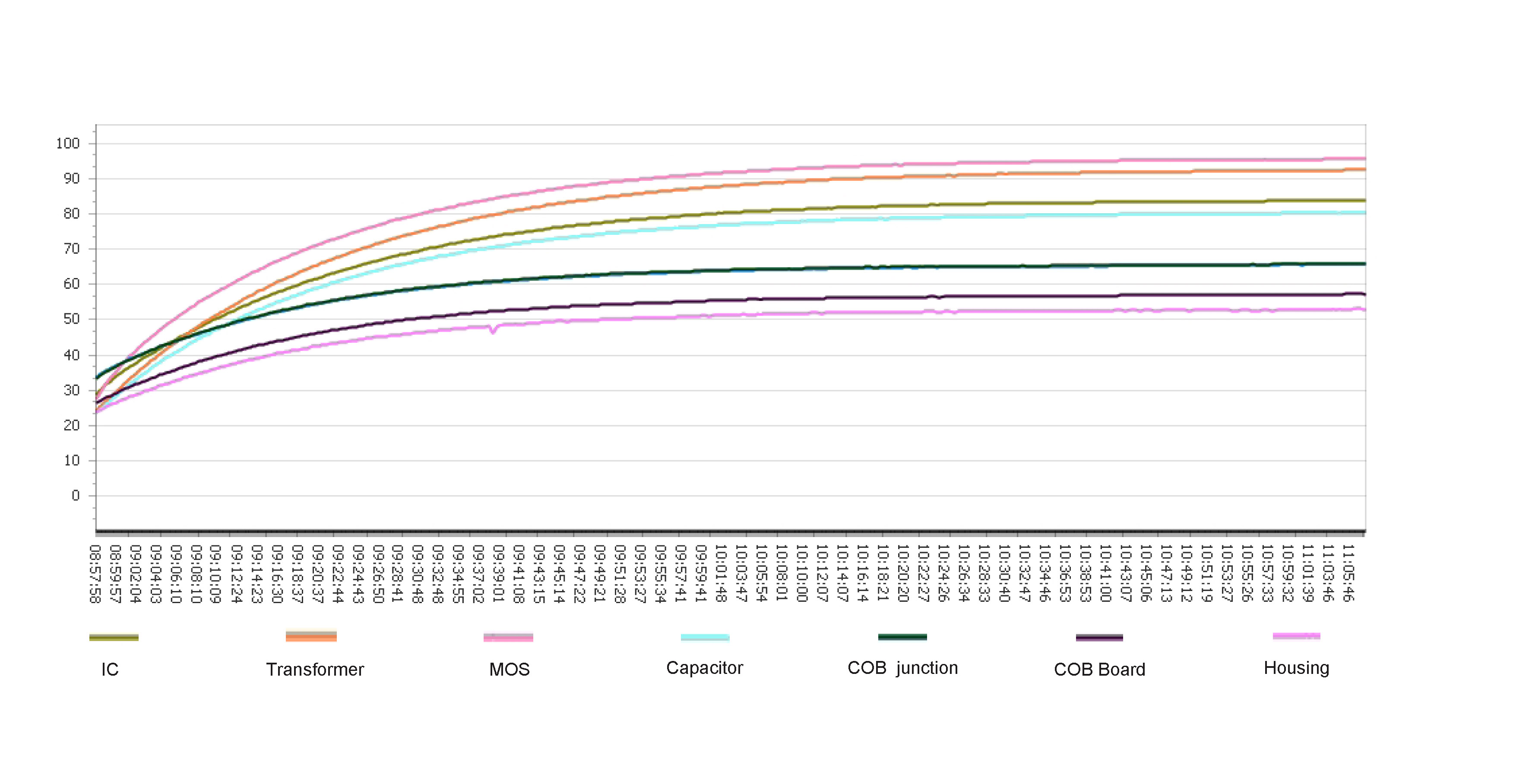

Temperature Test

10degree 135lm/w 25w track light led

Temperature


  • The testing is operated at 25℃

    The lifetime of capacitol,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

    The highest withstand temperature of led junction temperature is 150℃

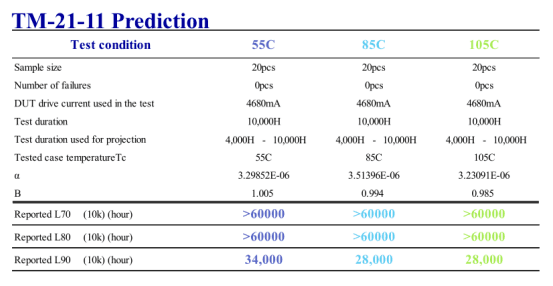

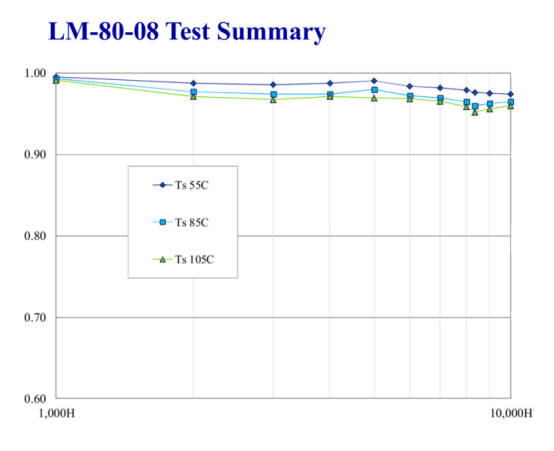

LM21&LM80

10degree 135lm/w 25w track light led10degree 135lm/w 25w track light led
