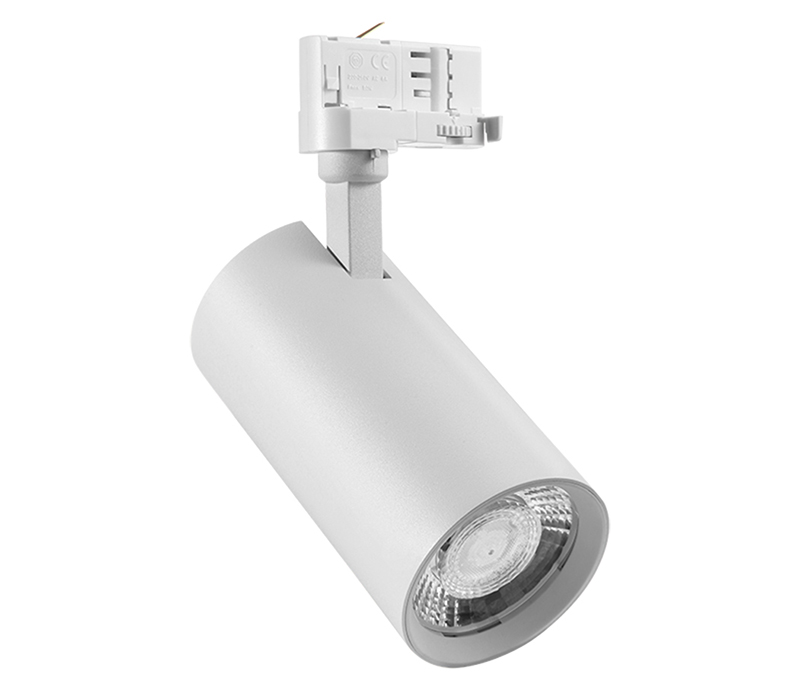

CCT changeable 30w 90Ra led track light

  • General Information
  • Feature
  • Installation
  • Download

General Information

Power 30W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack/White

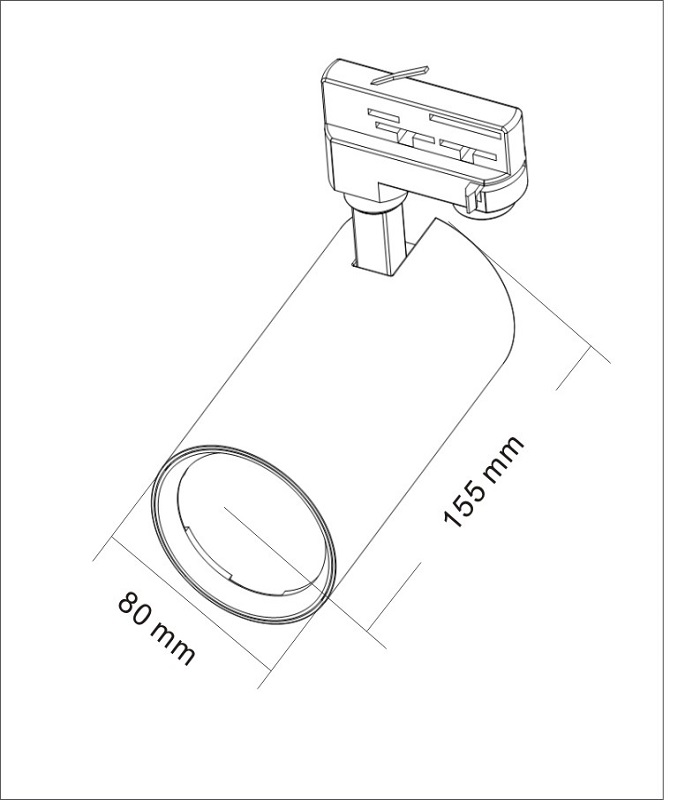

Housing Size80x155mm
CCT2700-5700K CCT Changing
Beam Angle15/24/38/60° Reflector
UGR19
Warranty5 Years
Installation Method2/3/4/6 Wires
IP ClasssIP20
Qty/Cartons15PCS/CTN GW16Kg
Carton Size46*28*27cm


Lighting Feature

PowerCCT (Nom)CRISDCMLuminous Flux
30W3000KRa>80<33100LM(103lm/w)
Ra>90<32900lm(98lm/w)
Ra>97<32700lm(97lm/w)
4000KRa>80<33100LM(103lm/w)
Ra>90<32900lm(98lm/w)
Ra>97<32700lm(97lm/w)


Operating and Electrical

Power 30W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS


Decription

We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.

No need extra dimmer, 2wire/3wire/4wire available

Artiview 30W track light with white tunable function, an adjustment knob is added to the back of the lamp, this way opereate more easily and conviniently, no need to add extra dimmer and extra wire, and you can dim as you abserve,so that you can adjust at the moment, and the price will be more competitive than other control ways.

400 01.jpg

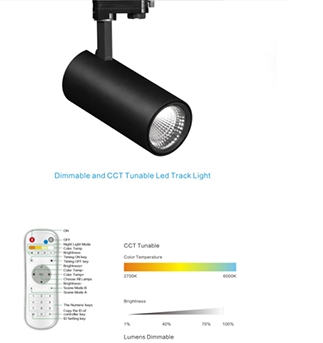

Mutiple dimming ways for Tunable white led track light

Tunable white track light used CRI>90 led chip and flicker free driver, the color of light is very uniform, comfortable and healthy, the control ways have RF/DMX512/BLE....., customer can adjust the beam angle and the color by arbitrary switching.

400 03.jpg

Three color temperature changing scope

30w three color changing led track lighting

The figure of temperature rise

philip tridonic lifud 30w led track light

Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led juncton temperature is 150℃


LIGHT LM21&LM80

philip tridonic lifud 30w led track lightphilip tridonic lifud 30w led track light

APPLICATION


philip tridonic lifud 30w led track light
