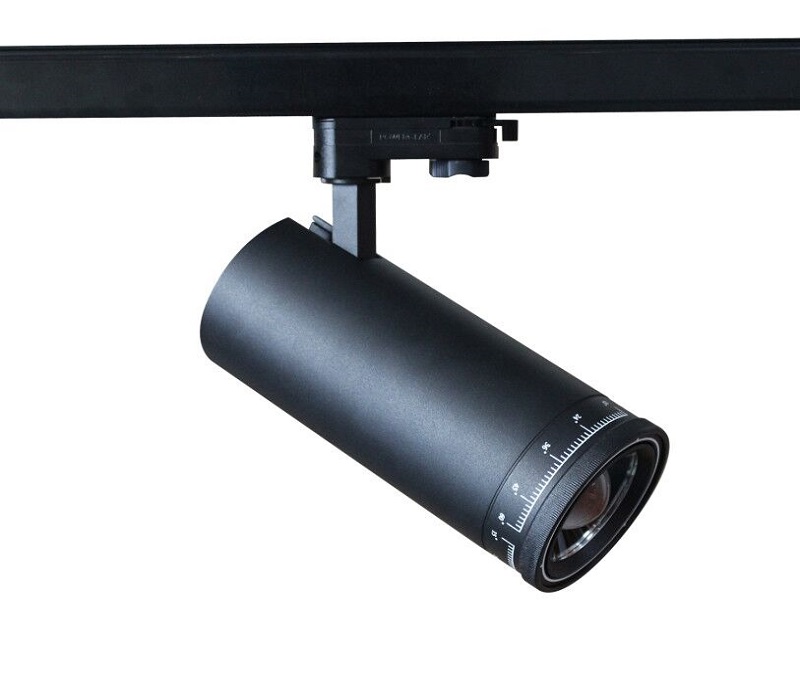

zoomable and 2700-5700k cct changeable & dimmable led track light
- General Information
- Feature
- Installation
- Download
General Information
| Power | 30W |
| Housing Material | Die-casting Aluminum |
| Housing Color | Black (9011) / White (9016) |

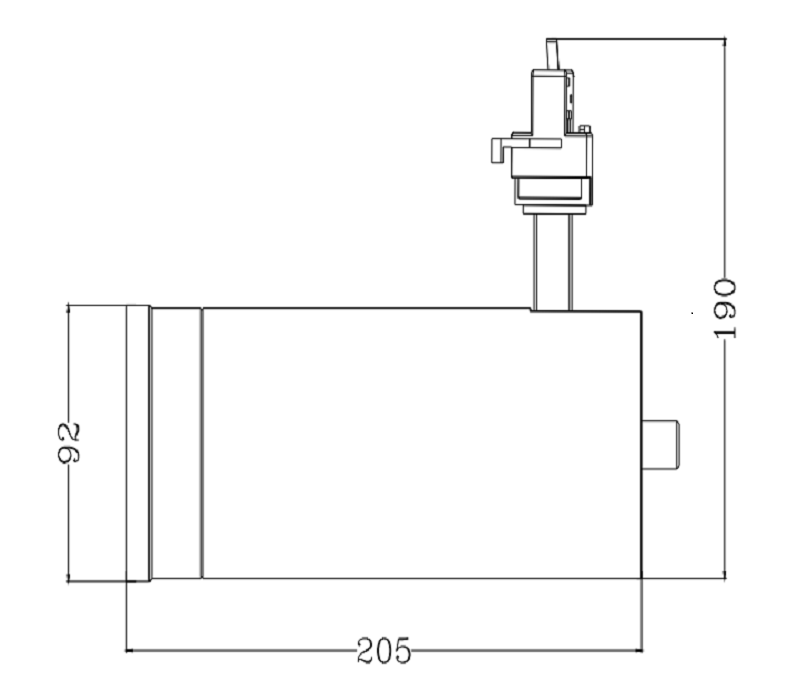

| Housing Size | 92x205 mm |
| LIGHT Source Brand | Epistar COB |
| CCT | 2700-5700 cct tunable |
| Driver Brand | Boke |
| Beam Angle | 15-60° Zoomable |
| UGR | 19 |
| Warranty | 5years |
| Track Adapter | 2/3/4/6 Wires |
| IP Classs | IP20 |
| Qty/Cartons | 12PCS/CTN GW16Kg |
| Carton Size | 42*32*31cm |
Lighting Feature
| Power | CCT (Nom) | CRI | SDCM | Luminous Flux |
| 30W | 3000K | Ra>80 | <3 | 2400LM(80lm/w) |
| Ra>90 | <3 | 2160lm(72m/w) | ||
| Ra>97 | <3 | 1950lm(65lm/w) | ||
| 4000K | Ra>80 | <3 | 2970LM(99lm/w) | |
| Ra>90 | <3 | 2520lm(84lm/w) | ||
| Ra>97 | <3 | 2130lm(71lm/w) |
Operating and Electrical
| Power | 30W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | 0-10v/Triac/Dali/Bluetooth/Wireless Remote/DMX/Potentiometer |
Decription
We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.
0-10V/Dali/DMX512 6wire 3 phase track light.
Why choose 6 wire 3 phase track adaptor for 0-10V/Dali/DMX512 dimming ways? there will need extra 2 signal wires for 0-10V/Dali/DMX512 dimming ways, and the market for 6 wire 3 phase track systerm is relatively mature, and the compatibility is very good than 4wire 1phase track adaptor, and more safety, you can control track lights in each circuit individually.
What control ways for RGBW led zoomable track light we can provide?
RGBW zoomable track light, used CRI>90 and flicker free driver, the color of light is very uniform, comfortable and healthy, the control ways have RF/DMX512/APP....., customer can adjust the beam angle and the color by arbitrary switching.
Mutiple dimming ways for zoomable track light are available
Artiview track light zoom can choose a variety of dimming methods, 0-10V/Dali/BLE, etc., where the potentiometer dimming is very popular with customers, there is no need for another dimmer, no need for signal lines, no special requirements for track strip, plug and play, and can be observed while dimming, very convenient and fast, Its economy is also the reason why customers choose it first.
Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led juncton temperature is 150℃

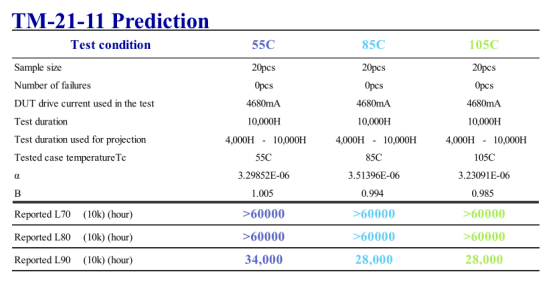

LIGHT LM21&LM80
