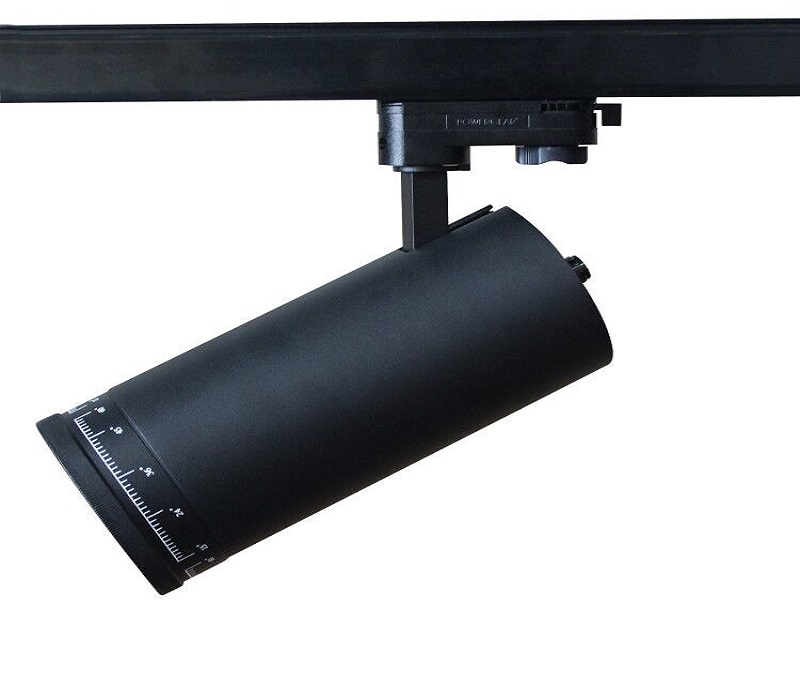

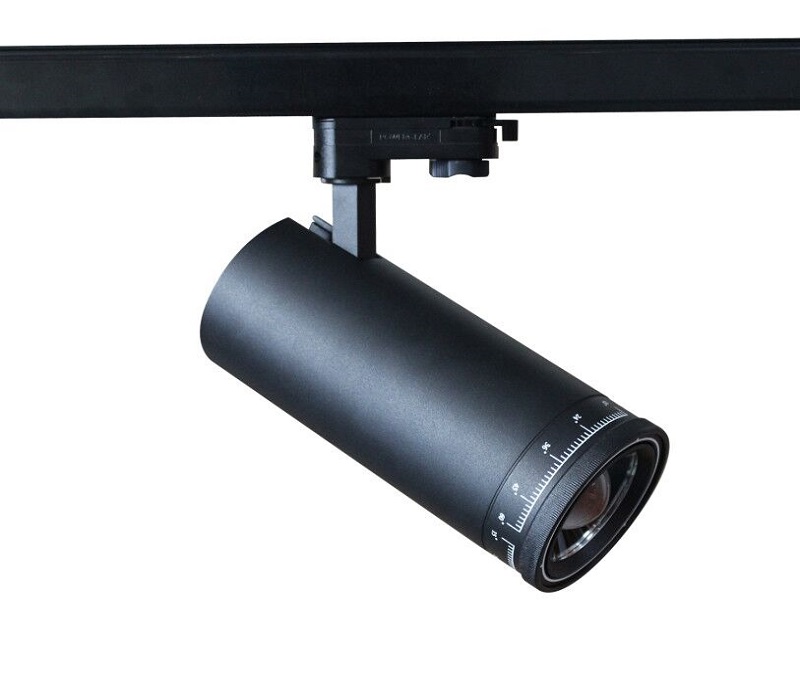

15° to 60° changeable and potentiometer dim 30w led tracklight
- General Information
- Feature
- Installation
- Download
General Information
| Power | 30W |
| Housing material | Die-casting Aluminum |
| housing Color | Black/White |

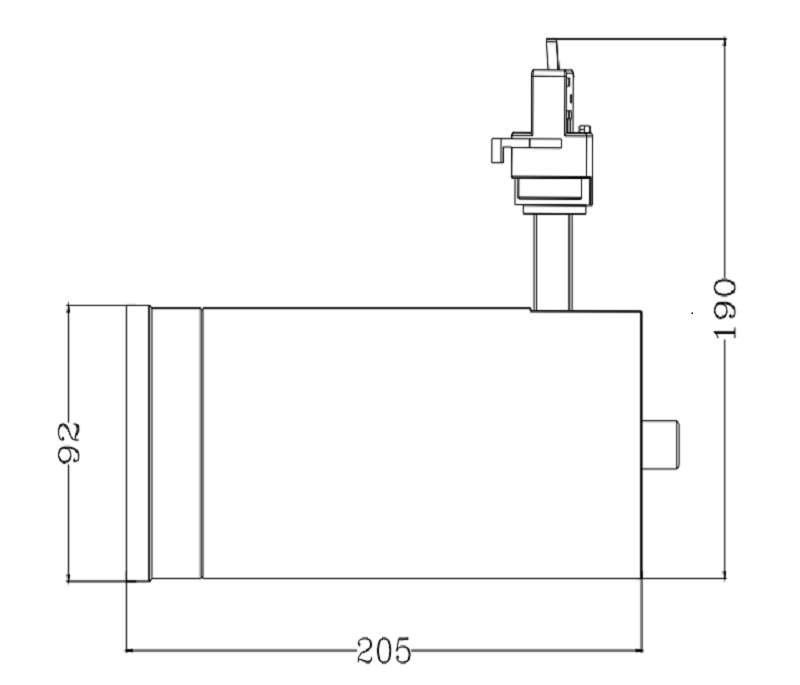

| Housing size | 92x205mm |
| LIGHT source brand | Citizen/Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Beam angle | 15-60° zoomable lens |
| UGR | 19 |
| Warranty | 5years |
| Track adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/cartons | 12PCS/CTN GW16Kg |
| Carton size | 42*32*31cm |
Lighting Feature
| power | CCT(nom) | Color rendering index | SDCM | NOM Luminous Flux(efficient ) | light decay(10000hs) |
| 30W | 3000K | CRI>80 | <3 | 2400LM(80lm/w) | <3% |
| CRI>90 | <3 | 2160lm(72m/w) | <3% | ||
| CRI>97 | <3 | 1950lm(65lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 2970LM(99lm/w) | <3% | |
| CRI>90 | <3 | 2520lm(84lm/w) | <3% | ||
| CRI>97 | <3 | 2130lm(71lm/w) | <3% |
Operating and Electrical
| Power | 30W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | 0-10v/Triac/Dali/Bluetooth/Wireless Remote |
Decription
We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.
No need extra dimmer, 2wire/3wire/4wire available

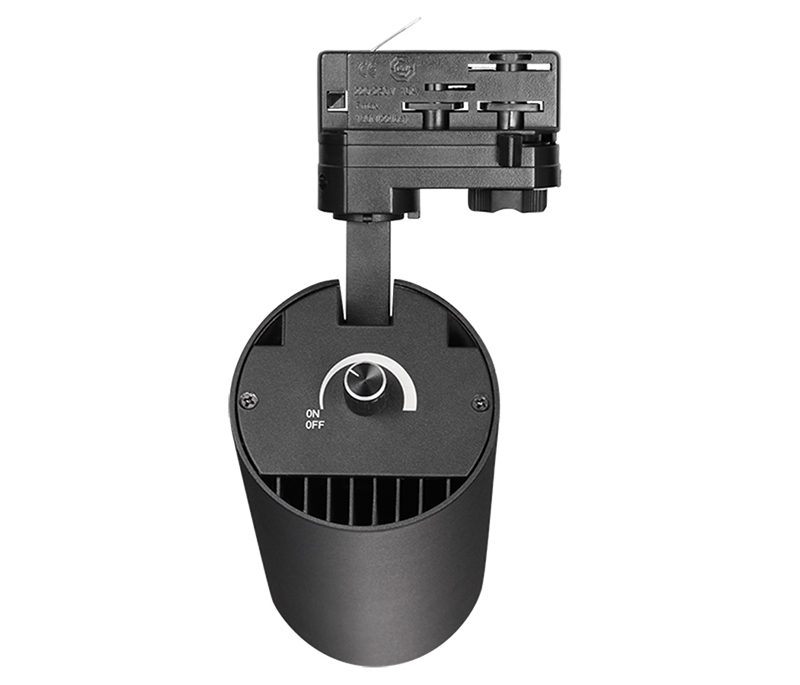

Artiview zoomable track light with potentiometer dimmable ways, bring zoomable and dimmable together, not only you can zoom 15-60 beam angle, but also increasing dimming, potentiometer dimming ways opereate more easily and conviniently, no need to add extra dimmer and extra wire, and you can dim as you abserve,so that you can adjust at the moment.

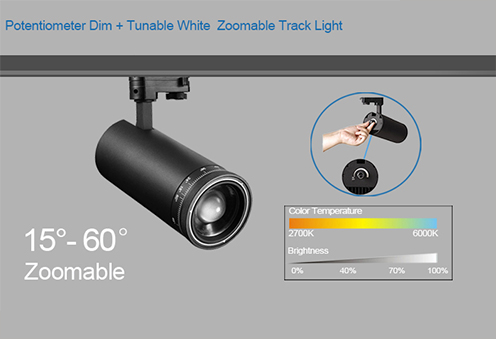

Potentiometer + Tunable white zoomable track light
Artiview Potentiometer + Tunable white zoomable track light, on the basic of zoomable and potentiometer dimmable way, increasing the the fuction of tunable white, the CCT can change from 2700K-4000K-5700K, the brightness can adjust 0%-100% brightness, three function is in one track light, and the price is very competitive.
Mutiple dimming ways for zoomable track light are available
Artiview track light zoom can choose a variety of dimming methods, 0-10V/Dali/BLE, etc., where the potentiometer dimming is very popular with customers, there is no need for another dimmer, no need for signal lines, no special requirements for track strip, plug and play, and can be observed while dimming, very convenient and fast, Its economy is also the reason why customers choose it first.
The figure of temperature rise
Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led juncton temperature is 150℃
LIGHT LM21&LM80
