Home  >>  Smart lighting  >>  Zoomable Led Track Lighting
  • Zoomable adjustable 30w led tracklight
  • Zoomable adjustable 30w led tracklight

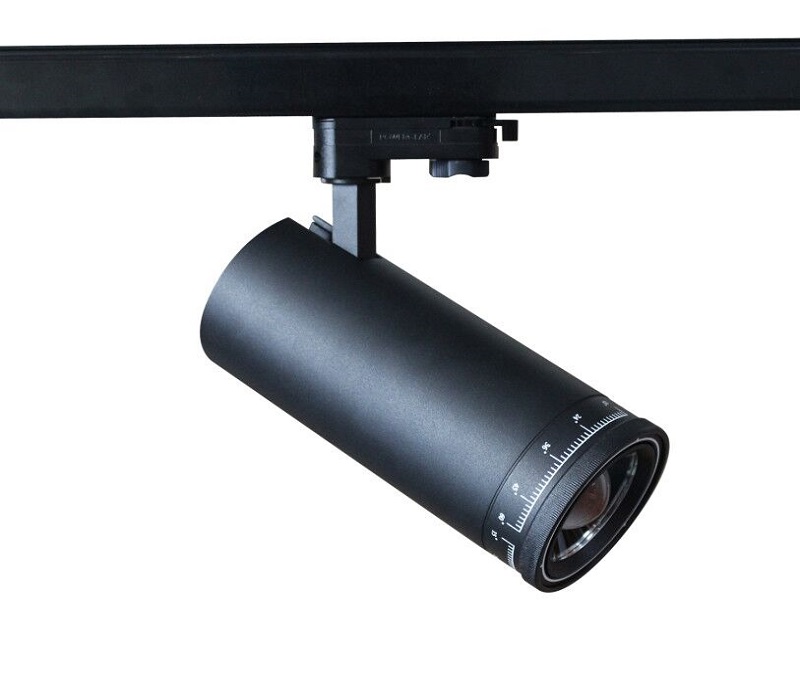

Zoomable adjustable 30w led tracklight

  • General Information
  • Feature
  • Installation
  • Download

General Information

Power 30W
Housing MaterialDie-casting Aluminum
Housing ColorBlack/White

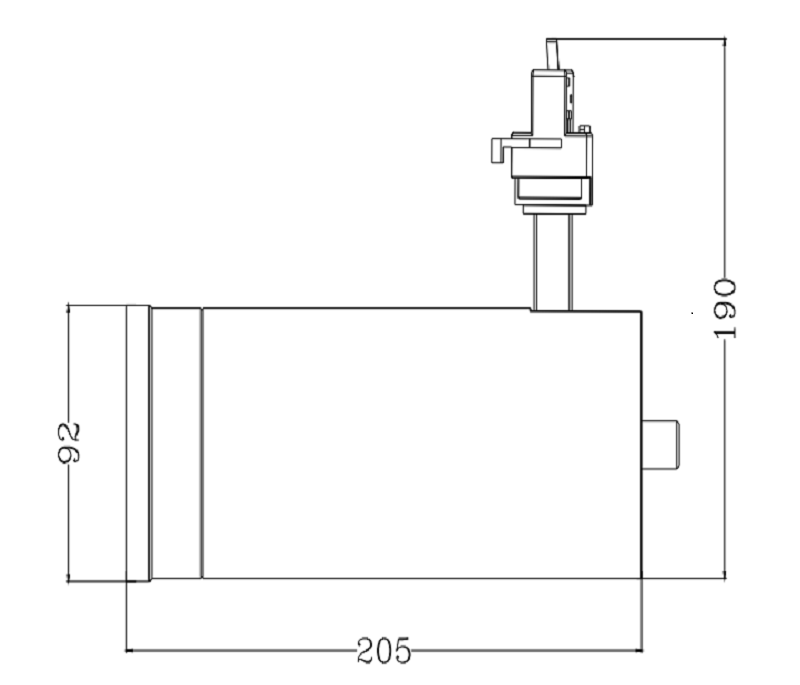

Housing Size92x205mm
LIGHT Source BrandCitizen/Luminus  COB
Driver Boke/Philips /Osram/Tridonic
CCT2700/3000/3500/4000/5000/5700k
Beam Angle15-60° zoomable  Lens
UGR19
Warranty5years
Track Adapter 2/3/4/6wires
IP ClasssIP20
Qty/Cartons12PCS/CTN GW16Kg
Carton Size42*32*31cm

Lighting Feature

PowerCCT(nom)CRISDCMLuminous Flux
30W3000KRa>80<32400LM(80lm/w)
Ra>90<32160lm(72m/w)
Ra>97<31950lm(65lm/w)
4000KRa>80<32970LM(99lm/w)
Ra>90<32520lm(84lm/w)
Ra>97<32130lm(71lm/w)




Operating and Electrical

Power 30W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Dimmable 0-10v/Triac/Dali/Bluetooth/Wireless Remote

Decription

We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.


Adjustable 15-60°, adjust the beam angle smoothly

Artiview zoomable track light adopts a unique focusing structure design, which can be adjusted from 15 ° to 60°. The lighting is very smooth and can be projected near or far as required. With a well-designed light leveling system, it achieves no glare, no light leakage and no stray light, meeting the lighting requirements of museums and galleries.

400 01.jpg


UGR<15, uniform light, no halo and dark spots

Artiview led track light zoom uses high-quality optical accessories, professional light distribution optimization design, reasonable reflective surface and special processing, soft and uniform light, UGR<15, no glare, no glint, no halo and dark spot, creating a visually comfortable museum lighting environment.

400 03.jpg


Track type installation is convenient and fast, and can be moved at will

Artiview zoom track light track type installation, no need to do ceiling, low cost, can be moved freely, can change the direction of light irradiation, light with the object, optional surface installation, embedded installation method, a variety of installation methods to meet different installation needs, convenient and fast, flexible with different lighting design needs, create a unique lighting scheme for the museum.

400 04.jpg


Mutiple dimming ways for zoomable track light are available

Artiview zoomable led track spotlight can adjust from 15°to 60°, adjust the beam angle smoothly, a variety of dimming methods are optional, potentiometer dimming way is very popular, no need dimmer, and can be observed while dimming, CCT also can be changeable, SDCM with 3 step, low UGR, very suitable for museum or art gallery lighting.

400 05.jpg




The figure of temperature rise

philip tridonic lifud 30w led track light

Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led juncton temperature is 150℃


LIGHT LM21&LM80

philip tridonic lifud 30w led track lightphilip tridonic lifud 30w led track light

philip tridonic lifud 30w led track light
