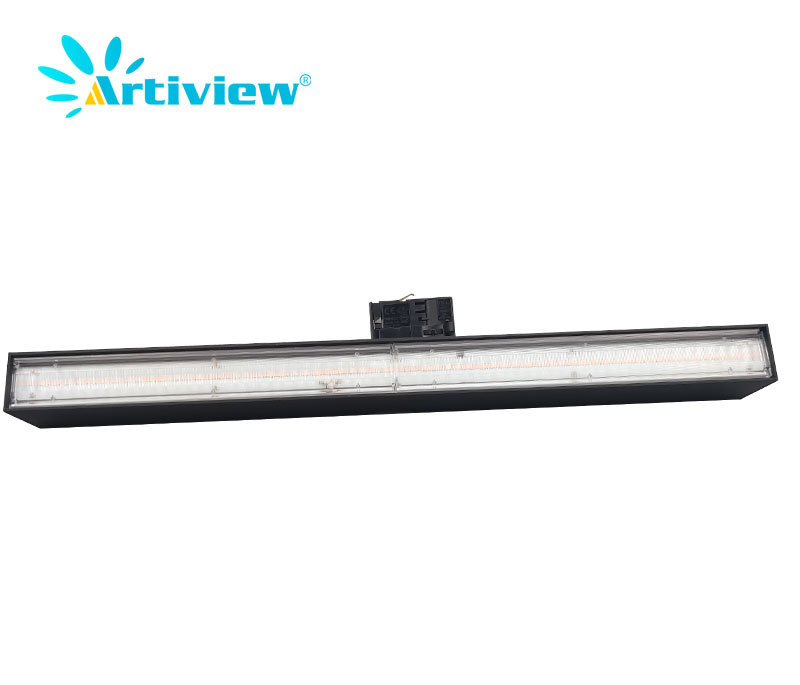

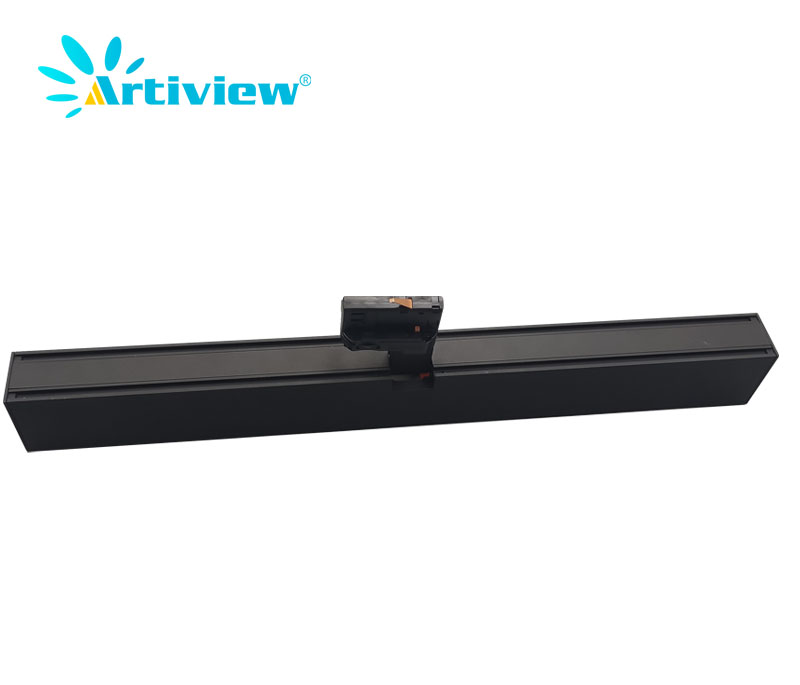

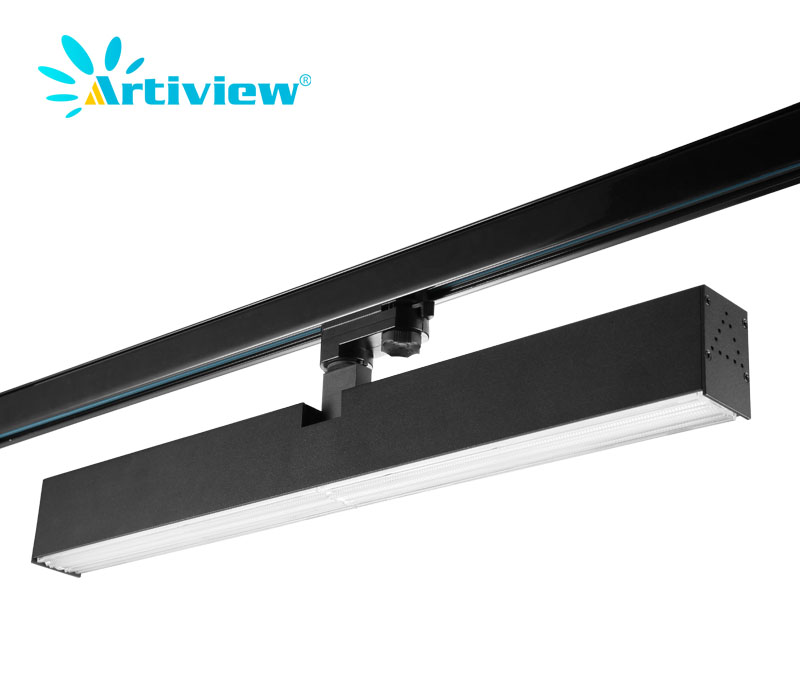

40w clothing store tracking mounted linear light
Full Product Code:PS-TTL-40WL45- General Information
- Feature
- Installation
- Download
Decription
Factory direct sales High-end quality 40w led track linear light for clothing store, library, shopping mall, supermarket. CRI80/90/97track linear light can meet different guests requires. Our track linear light choose famous brand Ledil lens and we can provide five years warranty. What's more we pass the CE/RHOS certification. Our products have been well received by many customers and are often used in engineering projects. Besides, our factory covers an area of 2000 square meters and we can produce ten million per mounth.
General Information
| Power | 40W |
| Housing material | Die-casting Aluminum |
| Housing Color | Black (9011) / White (9016) |
| Housing size | 45*70*571mm |
| Light source | SMD3030 |
| LIGHT source brand | philips/Osram |
| CCT | 2700/3000/3500/4000/5000/5700K |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Optics type | Lens/Pc cover |
| Beam angle | 60/90 |
| UGR | 19 |
| Warranty | 5years |
| Track adapter | 2/3/4wires |
| IP Classs | IP20 |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 40W | 3000K | Ra>80 | <3 | 4560LM(114m/w) |
| Ra>90 | <3 | 3920lm(98lm/w) | ||
| Ra>97 | <3 | 3480lm(87lm/w) | ||
| 4000K | Ra>80 | <3 | 4680LM(117lm/w) | |
| Ra>90 | <3 | 3960lm(99lm/w) | ||
| Ra>97 | <3 | 3600lm(90Lm/w) |
Operating and Electrical
| Power | 40W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |

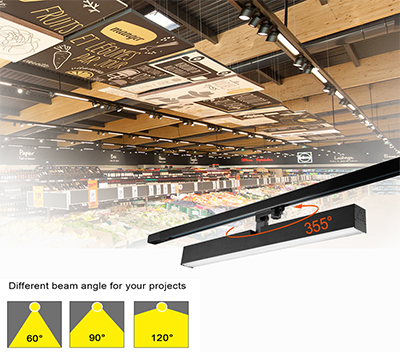

Horizontal 355°,60/90/120°multi-angle stereo projection
Artiview L45 led linear track lighting system to achieve multi-angle stereo light, also can be stable positioning in any direction, from different directions in different positions to display goods, more stereoscopic and more prominent show the characteristics of the main goods, do not leak any details.

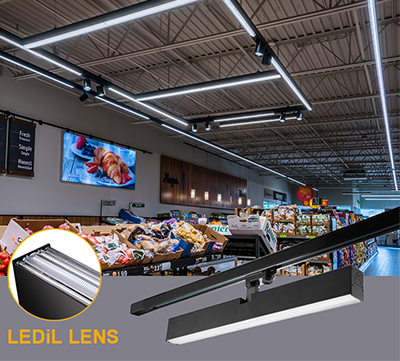

LEDiL lens, Low UGR, no glare, uniform color
Artiview L45 led linear tracking light uses high-quality LEDiL lens, professional light distribution optimization design, maximizes the light pass rate, reasonable reflection surface and special processing, soft and uniform light, UGR<15, no glare, no glint, effectively avoid customers shopping discomfort, to create a happy shopping environment for customers.

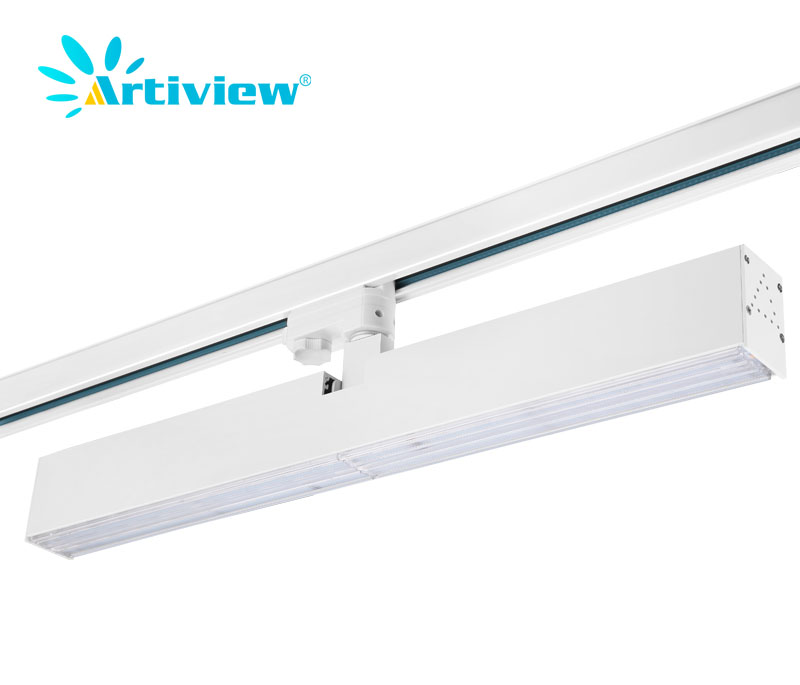

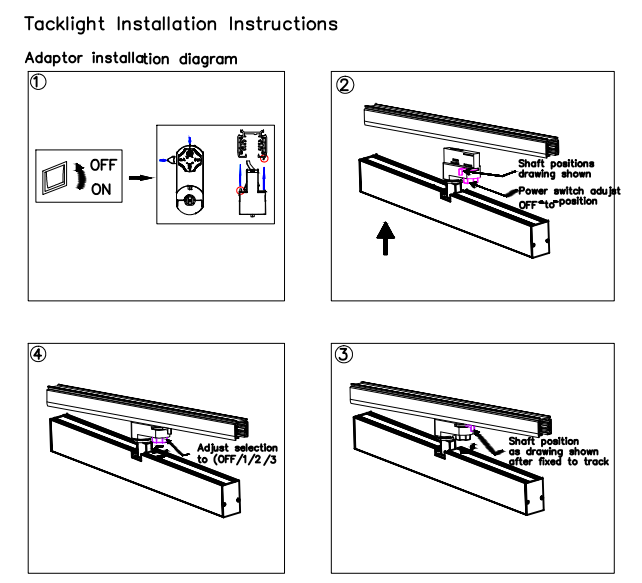

Rail installation without ceiling, low cost
Artiview L45 lens led linear track lighting patented design products, with surface installation, embedded installation and rail installation of three installation methods, a variety of installation methods flexible to meet the needs of different occasions lighting design, rail installation without chandeliers, reduce wiring and labor costs, low cost.

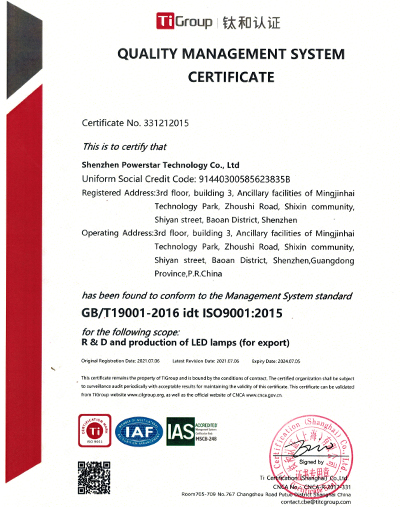

ISO9001 quality control standard, full inspection of products, reliable and safe
Artiview L45 track linear light fixture is produced strictly in accordance with ISO9001 quality control standards, through incoming material inspection, production process inspection, finished product photoelectric testing and other multi-layer quality tests, to ensure that each product is qualified before shipping to customers, to avoid unqualified products to customer engineering delays and other unnecessary costs.

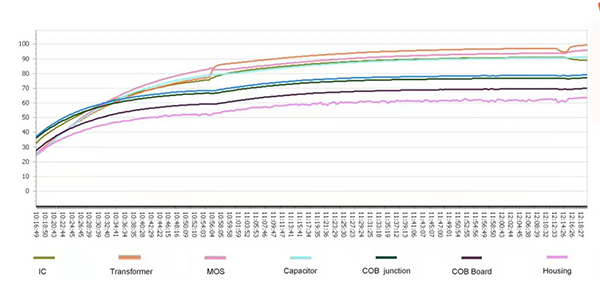

Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature is 150℃
