Home  >>  Popular Products  >>  COB LED Downlight  >>  LED Downlight C16
  • 50w COB Downlight
  • 50w COB Downlight
  • 50w COB Downlight
  • 50w COB Downlight
  • 50w COB Downlight

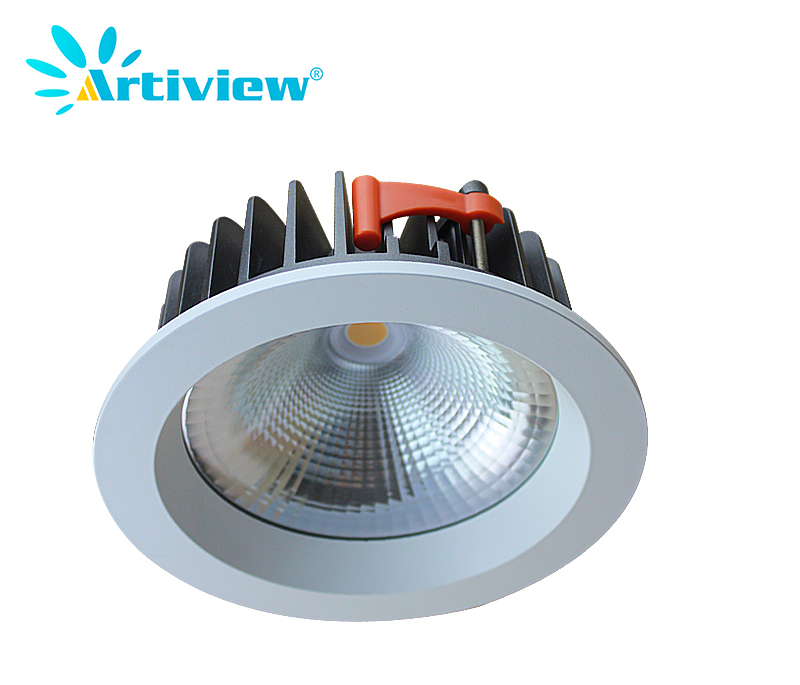

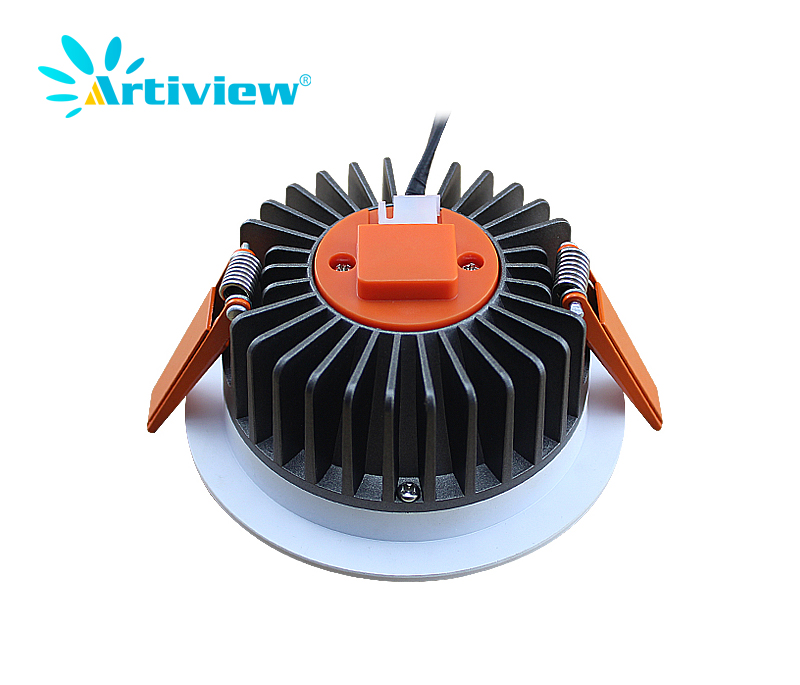

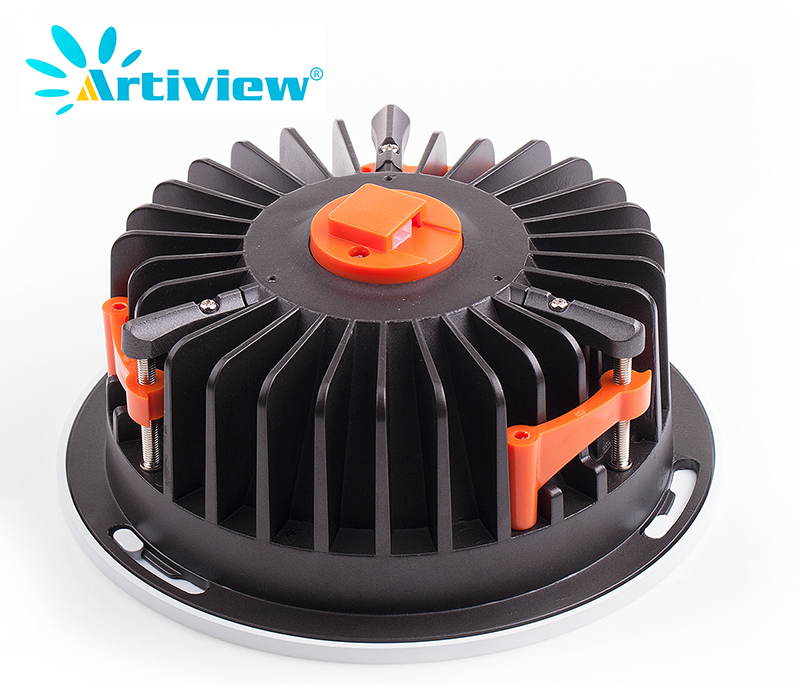

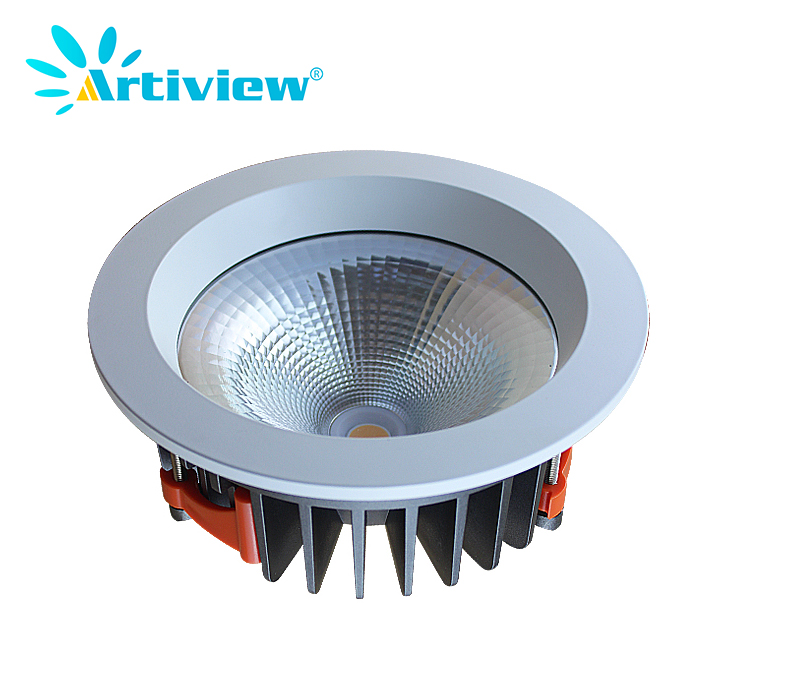

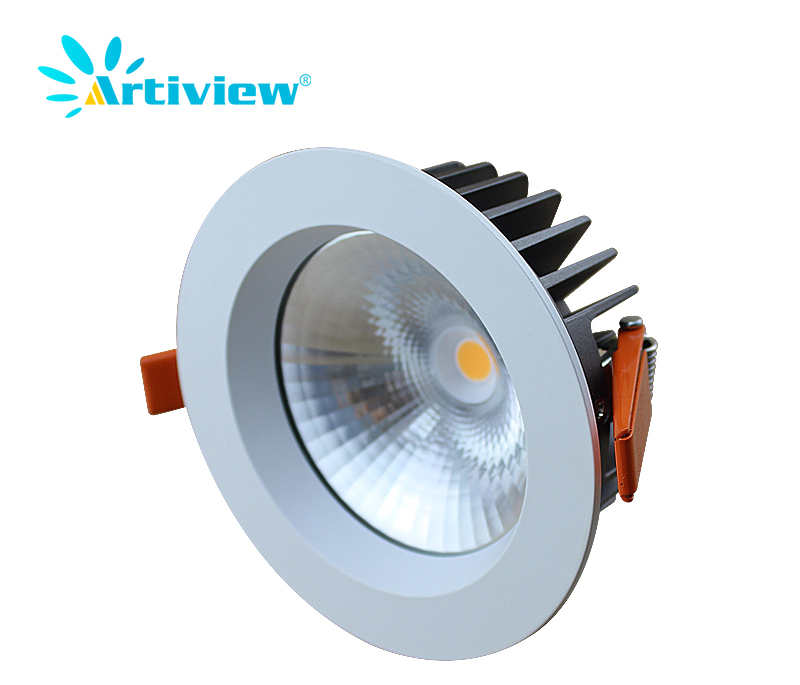

50w COB Downlight

Full Product Code:PS-DL-8'50W-C16
  • General Information
  • Feature
  • Installation
  • Download

General Information

Power 50w
Housing materialAL
housing Colorwhite
Cut hole200-210mm
Housing size230*99mm
Housing Max temperature (nom)65
Light sourceCOB
LIGHT source brandCitizen/Cree /Luminus
CCT2700/3000/3500/4000/5000/5700
Driver BrandTridonic/Osram/Philips/Boke
Optics typeReflector
Beam angle60
Warranty5years
Test informationtest ball, IES/Ldt
Storage temperatureminus40     65
Working Temperateminus20     45
IP ClasssIP44
Applicationindoor
Qty/cartons12PCS
Carton size46*34*36
GW/NW16kg/13.8kg


Lighting Feature


PowerCCTCRISDCMLuminous Flux
12-50w3000KRa>80<3118lm/w
Ra>90<3101lm/w
Ra>97<387lm/w
4000KRa>80<3121lm/w
Ra>90<3103lm/w
Ra>97<389lm/w


Power and Size Available


ItemPower
SizeCut hole

PS-DL12C163

12WD110*H63mm95mm

PS-DL15/20C164

15W/20WD145*H69mm130mm

PS-DL20/30C166

20W/30WD190*H86mm170mm

PS-DL30/40/50C168

30W/40W/50WD230*H99mm200mm



Operating and Electrical

Power 50w
Voltage220-240v/50-60hz
PF>0.95
Power efficient0.88-0.91
THD<10/<15
FlickerYES/NO
CertificationTUV/SAA/CE/CB/ENEC/RoHS/GS
Dimmable0-10V/Triac/dali/tuya/casmbi/zigbee/bluetoothmesh/dmx512
Life Time64000hrs


Discription

We are a good  downlight factory in china.Our company set sales and produce and research in one.We pay attention to research the high end downlight for our customers.Our downlight export all over the world .Our main market is Europe.Our downlight factory have CE/RHOS/GS/TUV etc related certification.Our downlight often be used in the commercial area like clothes shop/shopping mall /museum/supermarket/4s shop etc.Our company also can provide good solutions for your project.

LED chip we use CITIZEN COB with high brightness and low light decay, passed LM80.

Test data of LM80 and LM70 life time :

Ip44 White CRI80/90/97 30w LED COB Donwlight

Ip44 White CRI80/90/97 30w LED COB Donwlight

Driver lifetime & LED light decay rate

Ip44 White CRI80/90/97 30w LED COB DonwlightIp44 White CRI80/90/97 30w LED COB Donwlight


Temperature

● The testing is operated at 25°C

● The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C

● The highest withstand temperature of IC, MOS could be 120°C

● The highest withstand temperature of LED junction temperature is 150°C

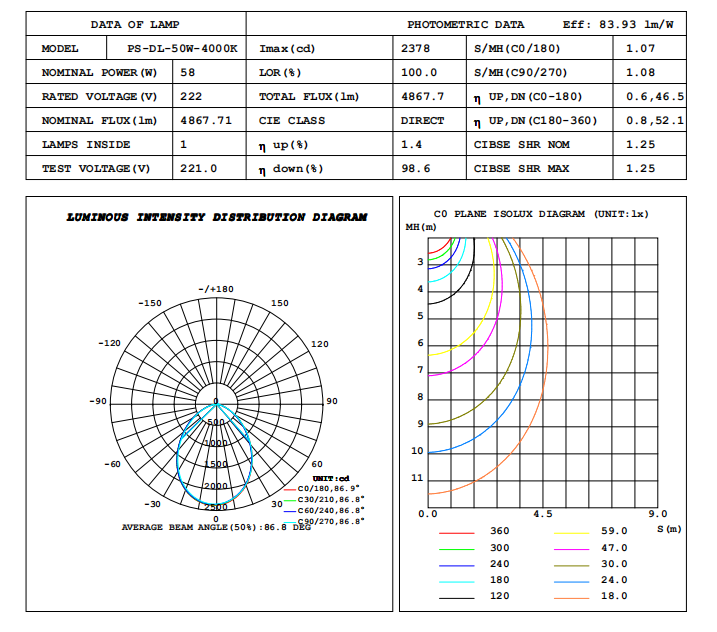

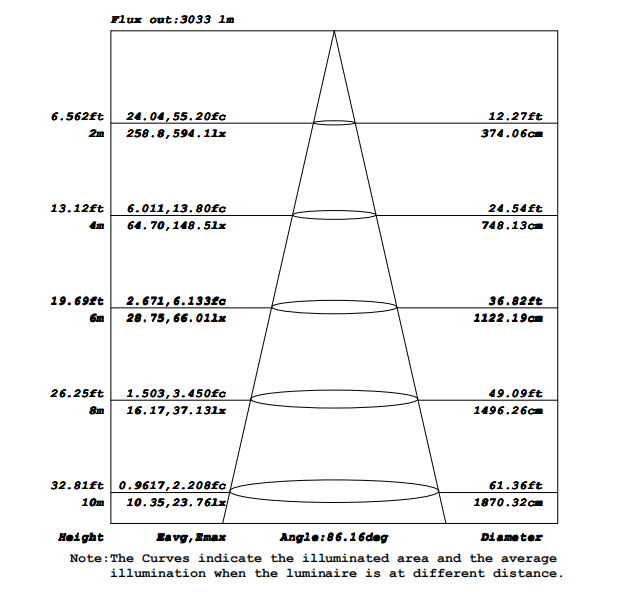

IES Test

TUV/SAA/CE/CB/ENEC/RoHS approval IP44 CUT Out 200mm 50w COB Downlight

TUV/SAA/CE/CB/ENEC/RoHS approval IP44 CUT Out 200mm 50w COB Downlight


Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.

3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec  (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.

Diameter 190mm Five Years Warranty CE/RHOS Certification Flicker Free 30w

WARNING  TUV/SAA/CE/CB/ENEC/RoHS approval IP44 CUT Out 200mm 50w COB Downlight
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of  electric shock or light falling.



Power and Size Available

Power/Watt

Size

Cutout Size

G.W(Kg)/pc

G.W/Carton (Kg)

Pcs/Carton

15w/20w

145*69mm

125mm

0.9Kgs

27Kg

30pcs

20w/30w

190*86mm

170mm

1.4Kgs

21Kg

15pcs

30w/40w/50w

230*99mm

210mm

1.9Kgs

19Kg

10pcs

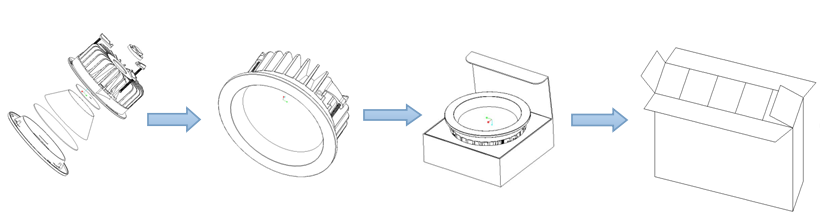

Packaging


Diameter 190mm Five Years Warranty CE/RHOS Certification Flicker Free 30w
