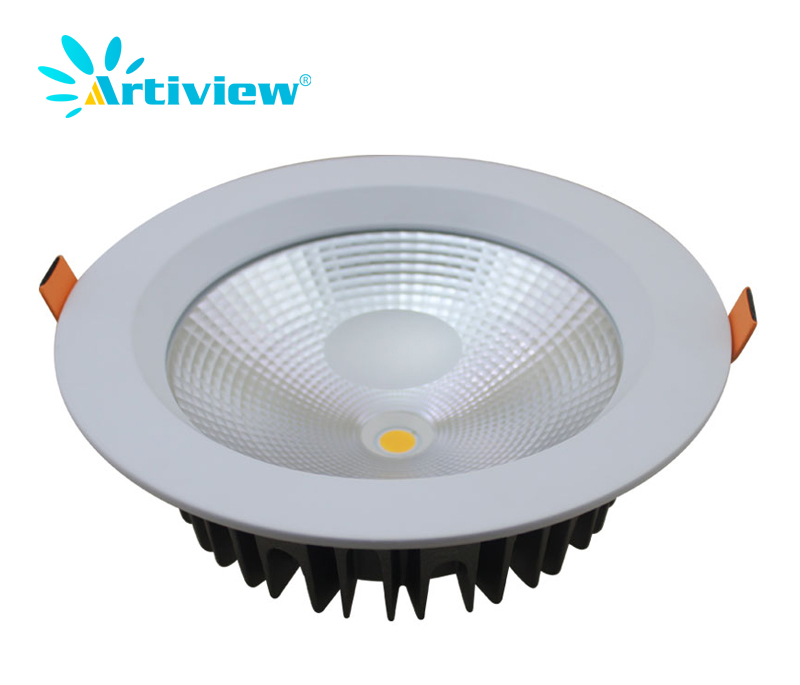

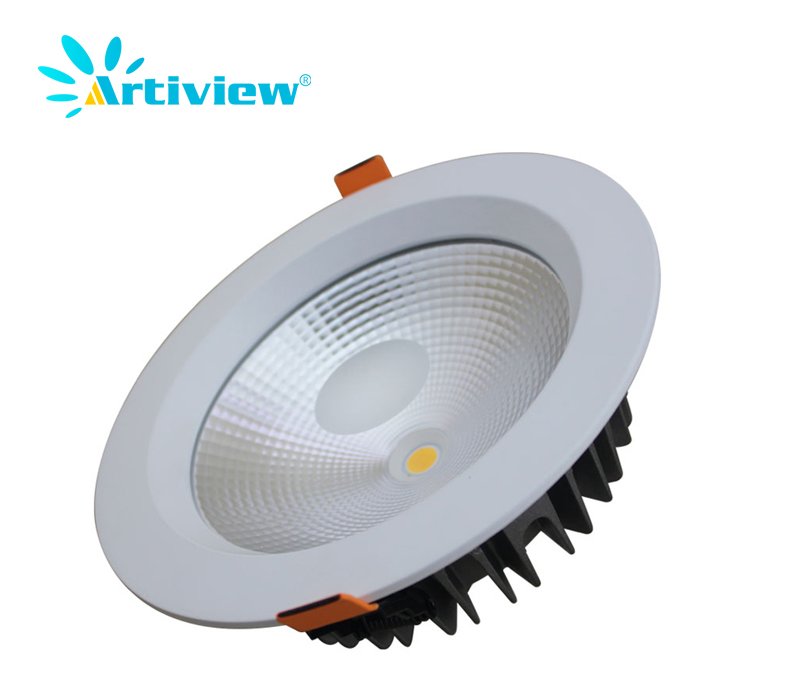

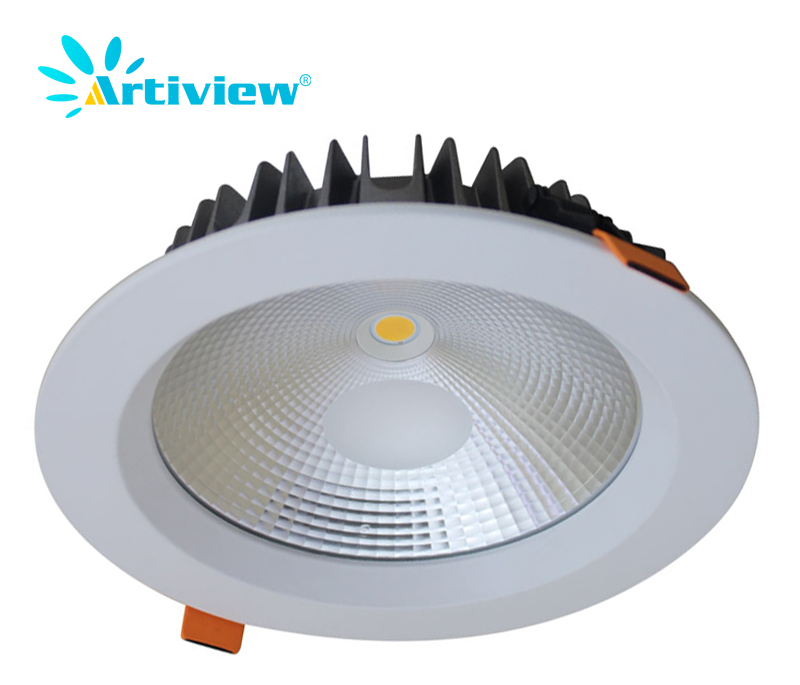

30W recessed downlight
Full Product Code:PS-DL-8'30W-C8- General Information
- Feature
- Installation
- Download
General Information
| Power | 30w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 200-210mm |
| Housing size | 230*75mm |
| Housing Max temperature (nom) | 65 |
| Light source | cob |
| LIGHT source brand | citizen/Cree/luminus |
| CCT | 2700/3000/3500/4000/5000/5700 |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Optics type | Reflector |
| Beam angle | 60/90 |
| Warranty | 3years |

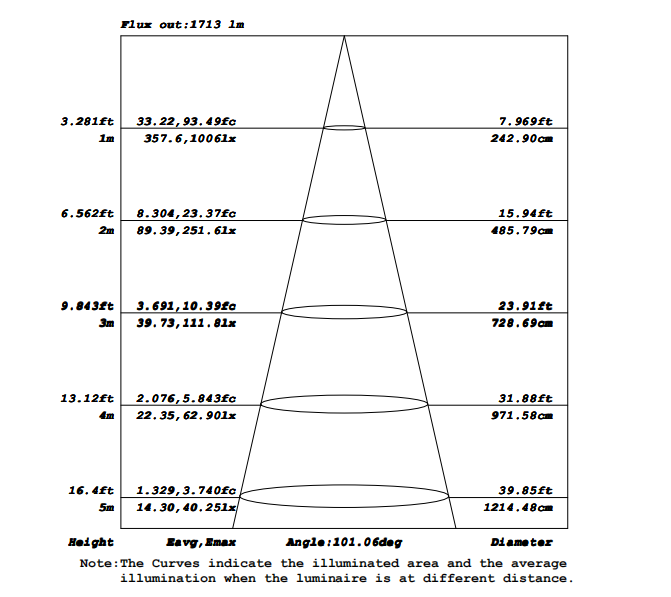

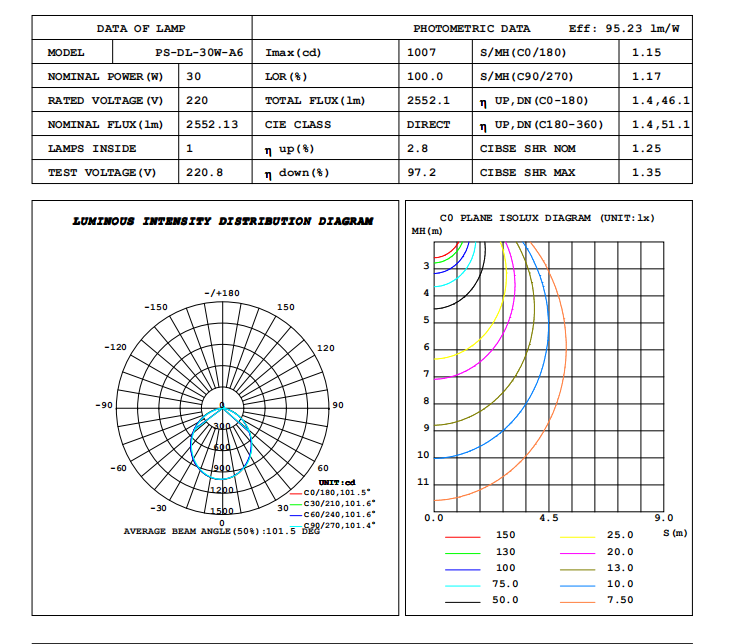

| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 7-30w | 3000K | Ra>80 | <3 | 103lm/w |
| Ra>90 | <3 | 98lm/w | ||
| 4000K | Ra>80 | <3 | 103lm/w | |
| Ra>90 | <3 | 98lm/w |
Power and Size Available
| Item | Power | Size | Cut hole |
| PS-DL7C83 | 7W | D105*H47mm | 90mm |
| PS-DL12C84 | 12W | D145*H60mm | 125mm |
| PS-DL15C85 | 15W | D160*H60mm | 145mm |
| PS-DL20C86 | 20W | D190*H60mm | 160mm |
| PS-DL30C88 | 30W | D230*H60mm | 195mm |
Operating and Electrical
| Power | 30w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS |
| Dimmable | 0-10V/Triac/dali/tuya/casmbi/bluetooth mesh/dmx512 |
| Life Time | 64000hrs |
Decription
We are led downlight supplier in china.We have 8 years professional expenriences in led industry.We has foucsed on the downlight for 8 years.We researched serveral type downlight recently, This type downlight we use epistar /cree chip,This downlight is an high performance product.It has cheaper price and good quality.Our donwlight use famous brand driver like lifud/trodinic/philip/Osram.So we can provide 3 years warranty.And we has passed the TUV/SAA/CE/CB/ENEC/RoHS/GS certification .You can trust my downlight quality.
LED chip we use CITIZEN COB with high brightness and low light decay, passed LM80.
Test data of LM80 and LM70 life time :
Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.
3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling

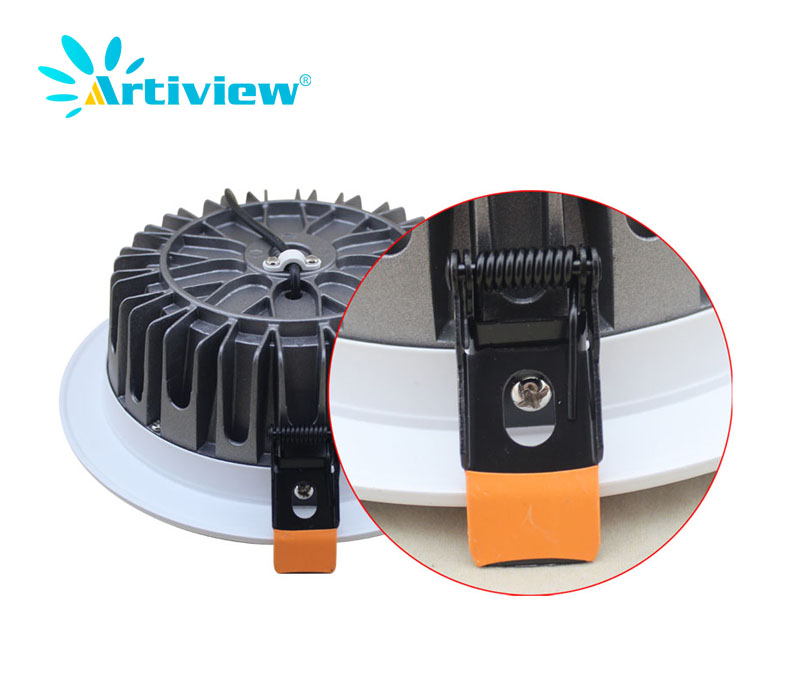

6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.
WARNING
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
