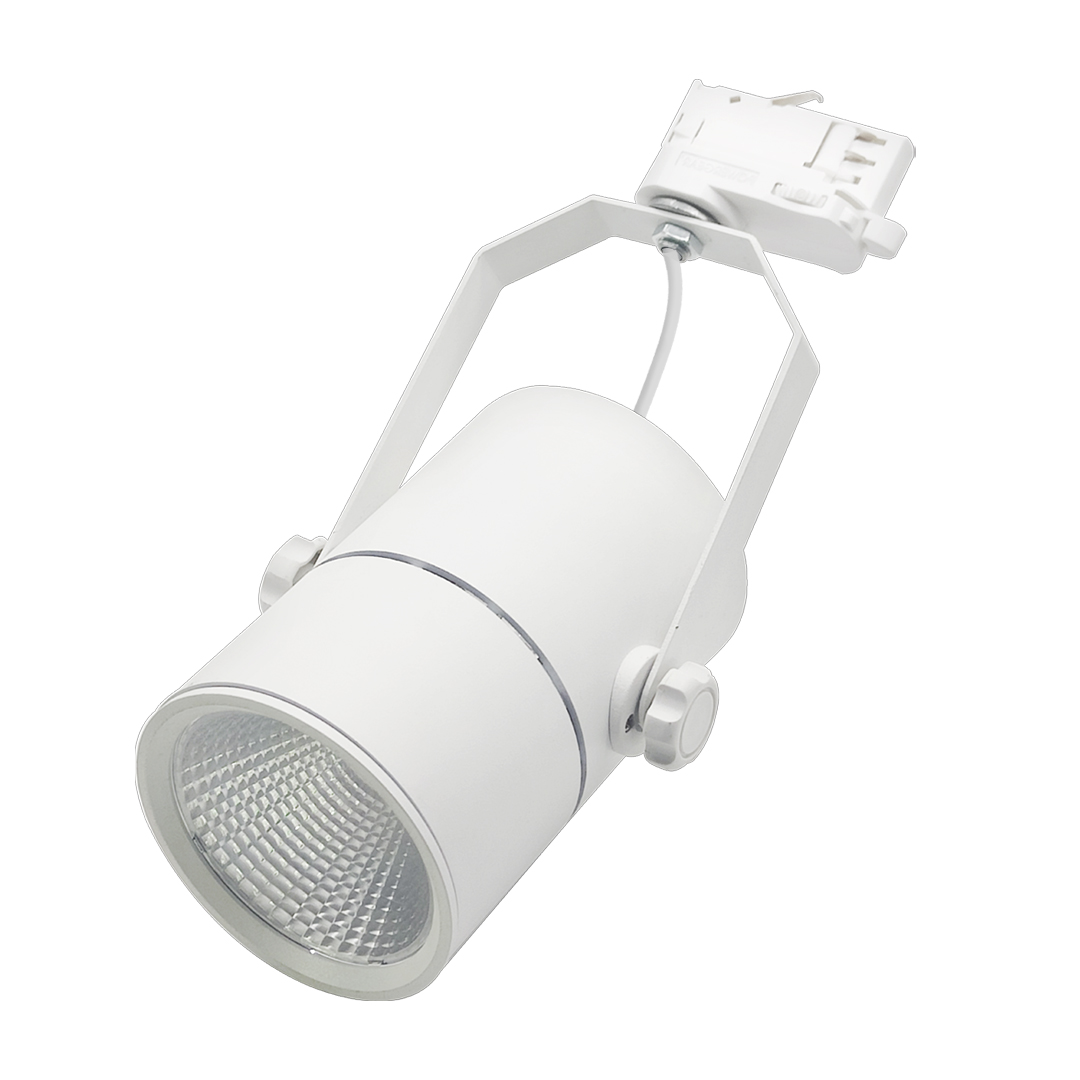

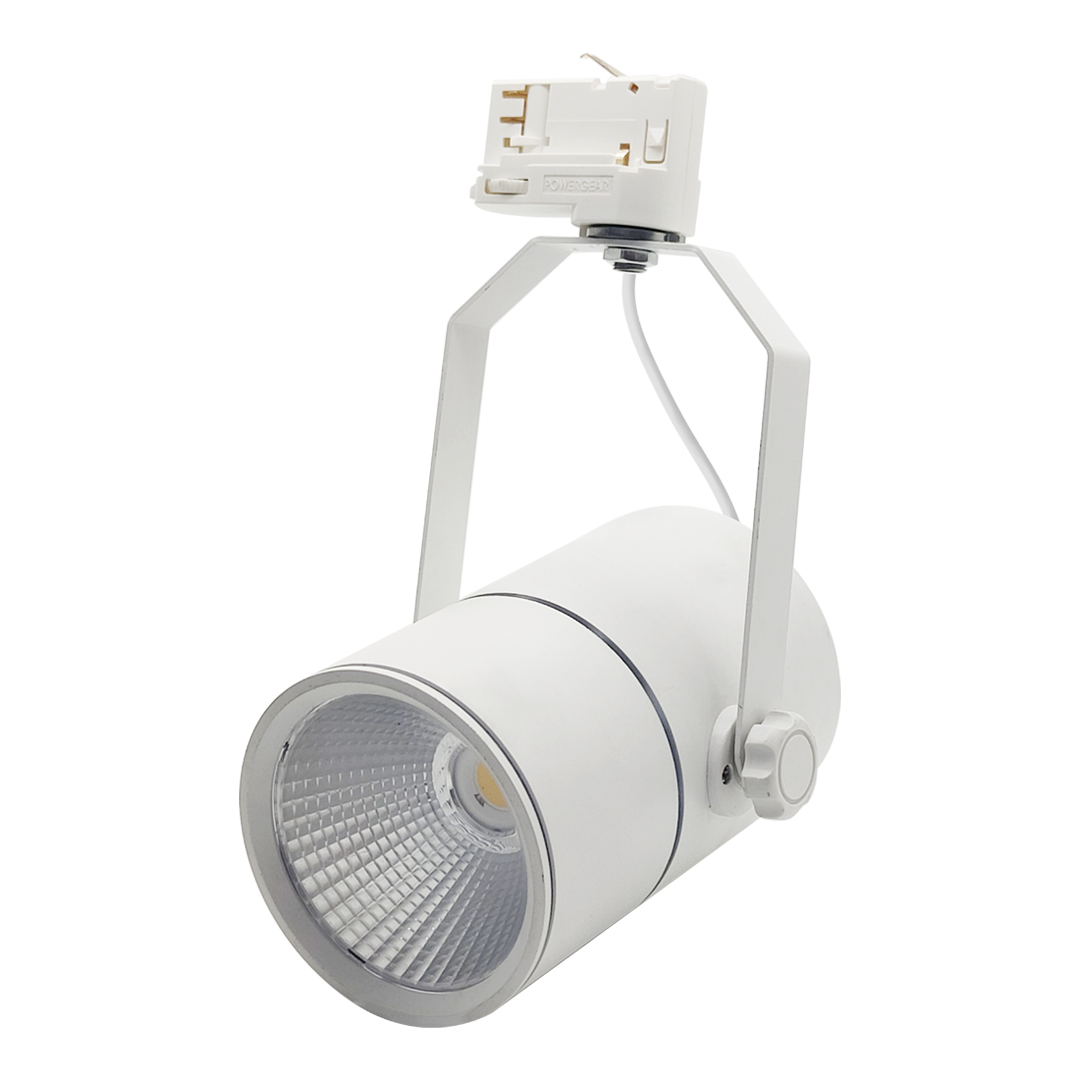

White Double Arms 30W LED Track Spot light
Full Product Code:PS-TL30F100- General Information
- Feature
- Installation
- Download
Description:
The double arms led track spot light is aluminum body housing with good heat dissipation.
A variety of options for you to choose：
LED chip (Citizen, Luminus, Bridgelux etc.)
Driver (TCI, Philip, Osram, Tridonic, Boke etc.)
Control System (0/1-10V, Dali, Silicon, Dimming, Color adjustment etc.)
General Information
| Power | 30W |
| Housing Material | Die-casting Aluminum |
| Housing Color | Black(9011)/White(9016) |

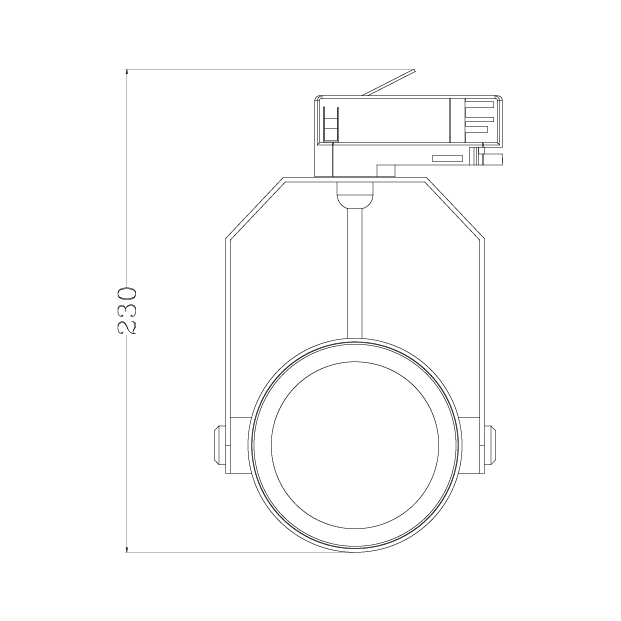

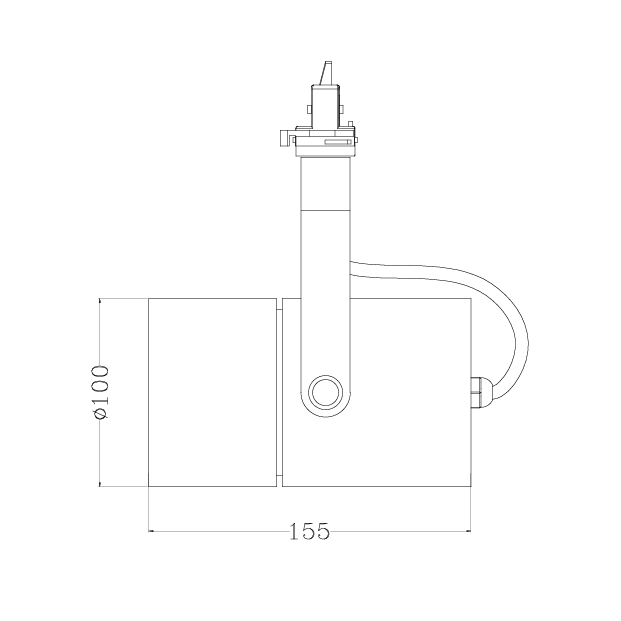

| Housing Size | 100*155*230mm |
| Light Source Brand | Citizen/Luminus/Cree COB |
| CCT | 2700/3000/3500/4000/5000/5700K |
| Driver Brand | Tridonic/lifud/Philips/Osram |
| Standard Beam Angle | 15°/24°/38°/60° (90% reflectivity ) |
| High Efficency Angle | 20°/30°/45°/60° (98% reflectivity) |
| UGR | 19 |
| Warranty | 5 years |
| Track adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| PF | >0.9 |
Lighting fixture
| Power | CCT | CRI | SDCM | Luminous flux |
| 30W | 3000K | Ra>80 | <3 | 3000lm(100lm/w) |
| Ra>90 | 2700lm(90lm/w) | |||
| 4000K | Ra>80 | 3100lm(103lm/w) | ||
| Ra>90 | 2800lm(95lm/w) |
Operating and Electrical
| Power | 30W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.9 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
l Double arm design ,fashion art idea ,adjustable lighting fixture
l 30w spotlight use high lumen cob led citizen,luminus chip.SDCM <3,uniform light output
l Lighting lamp using reflector optics, 15/24/38/60 degree available
l 2/3/4/6 wires use famous brand Powergear/Global track adapter ,meet different lighting client require .
l Lighting applied in shopping mall ,surpermarket,clothes shop, fashion shop ,retail shop etc commercial lighting area .

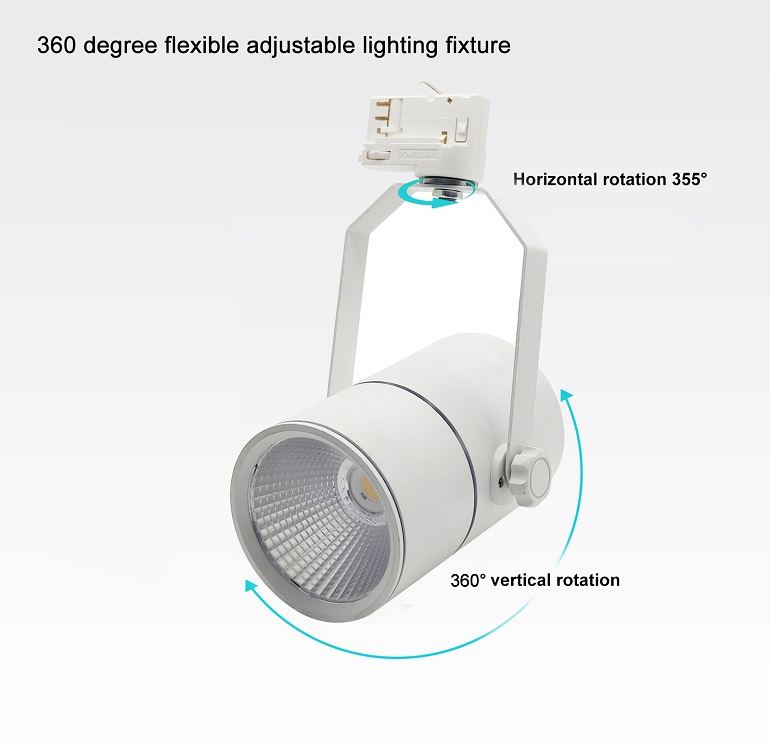

30w adjustable track lighting do horizontal rotation 355 degree , 360 degree vertical rotation, This foucs lighting easily to change direction by hand .and powerstar manufacturer lighting all passed CE CB ENEC,TUV ,C-TICK,SAA ,ISO9001 quality system etc certification .so we can provide lighting soltuions service for more than 10 years .
30W tracklight spot we use flicker free dirver . flickering light can damage your health if you stay long time in that flicking light area .if you dont know tracklight you purchasing is flicker free or not ,you can use your phone to test it .you can open your camera can see that .flickering light you will see some light ripples .flicker free light you wouldnt see any differeance with your eyes .

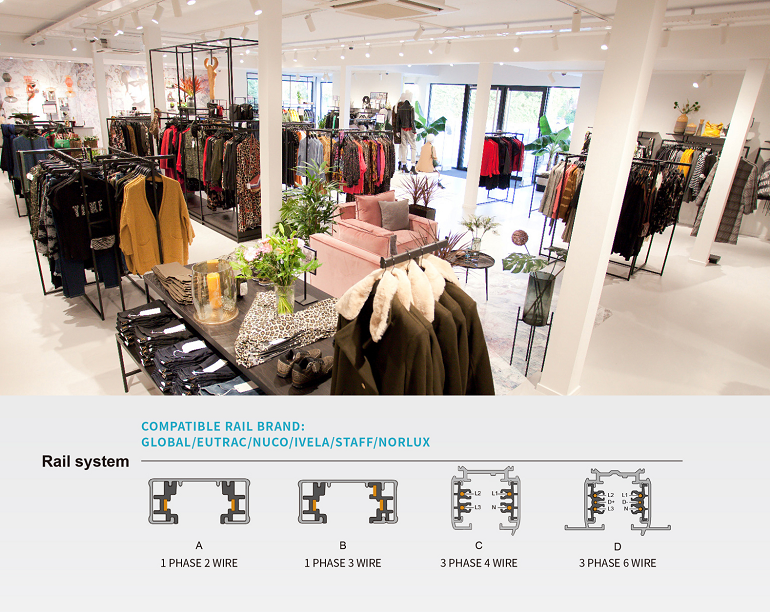

Our spot light have 1 phase and 3 phase two options .1 phase is normal on/off tracklight .4 wires 3 phase can achieve 3 couple simple control .6 wires 3 phase always for dimmable options which need signal wires like 0-10v ,DALI ,DMX etc dimmable samrt lighting .
