Home  >>  Popular Products  >>  LED Track Light  >>  LED Track Light X16C  >>  LED Track light X 16 C 93
  • 30W 35W 40W 3300lm casabi zigbee led track lighting for shop
  • 30W 35W 40W 3300lm casabi zigbee led track lighting for shop
  • 30W 35W 40W 3300lm casabi zigbee led track lighting for shop
  • 30W 35W 40W 3300lm casabi zigbee led track lighting for shop

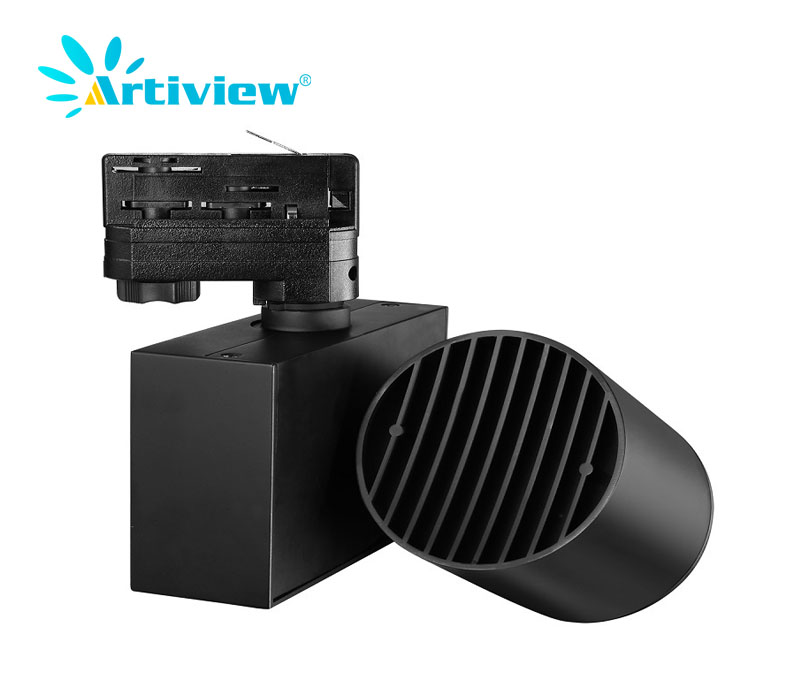

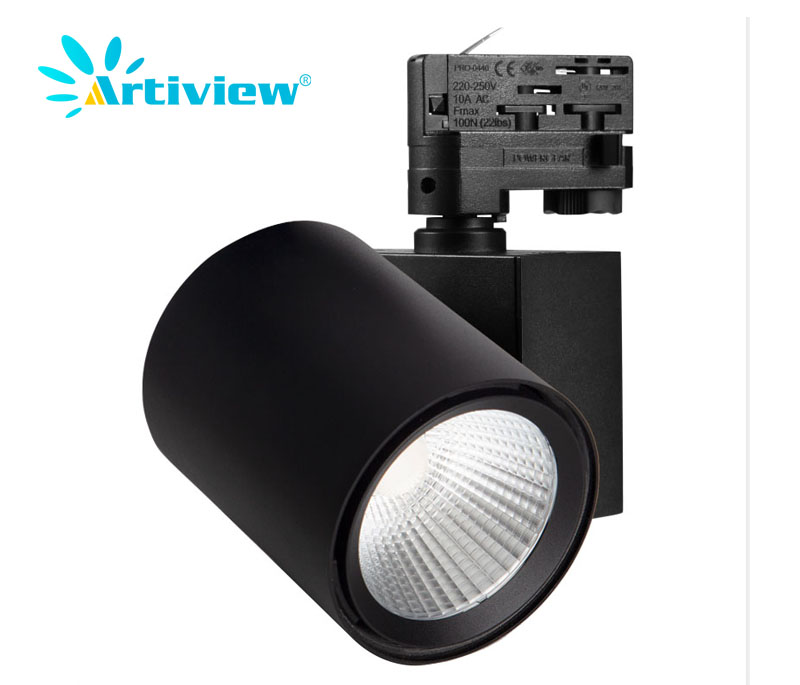

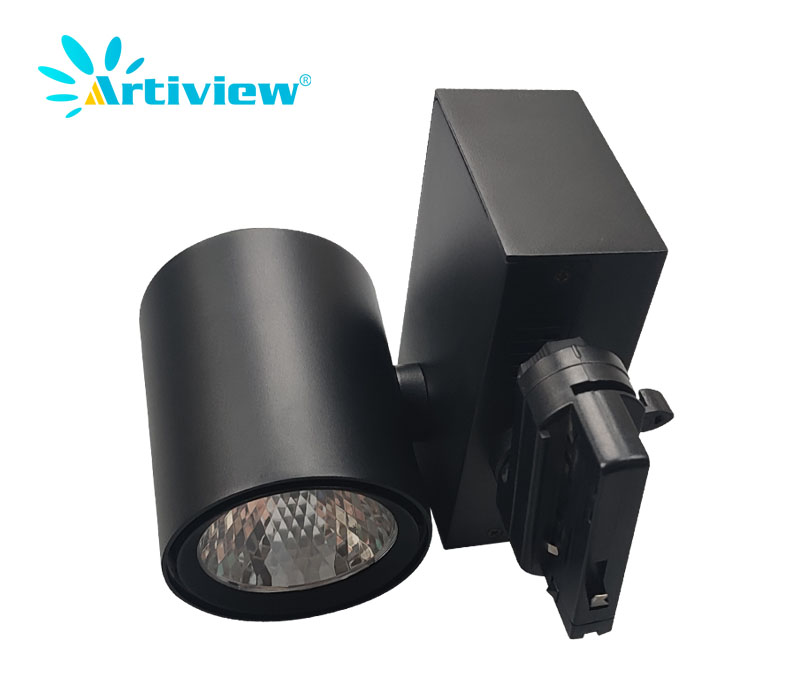

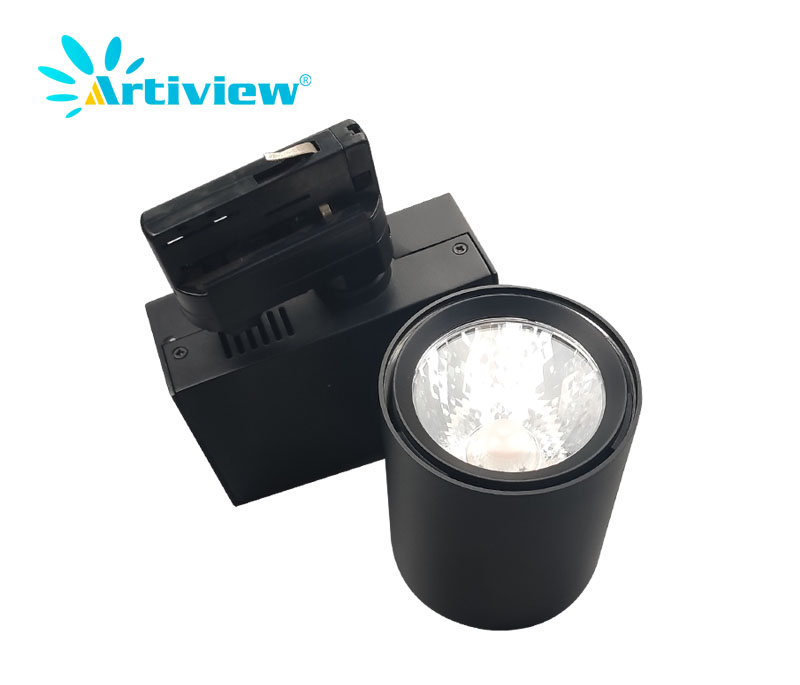

30W 35W 40W 3300lm casabi zigbee led track lighting for shop

Full Product Code:PS-TL-30W/35W/40W-X16C93
  • General Information
  • Feature
  • Installation
  • Download

Description

As you know,Shenzhen powerstar technology limited company can produce the good quality tracklight.We are a good tracklgiht factory .Our company set sales and produce and research in one .We pay attention to research the high end tracklight for our customers .Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty.And we passed the CE/RHOS certification .You can trust my tracklight quality.


General Information


Power 30W/35W/40W
Housing MaterialDie-casting Aluminum
housing ColorBlack(9011)/White(9016)
Housing Size93*115*135mm
Light Source BrandCitizen/Luminus/Cree COB
CCT2700/3000/3500/4000/5000/5700K
Driver BrandTridonic/Philips /Osram/Boke
Standard Beam Angle15/24/38/60° Reflector
UGR19
Warranty5years
Track adapter2/3/4/6wires
IP ClasssIP20
Qty/cartons10PCS/CTN GW16Kg
Carton size55*53.5*29.5cm


Lighting Feature


PowerCCTCRISDCM Luminous Flux
30W/35W/40W3000KRa>80<3110lm/w
Ra>90<3105lm/w
Ra>97<3100lm/w
4000KRa>80<3108lm/w
Ra>90<3103lm/w
Ra>97<3100lm/w


Operating and Electrical


Power 30W/35W/40W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
Smart controllerZigbee/tuya/Philips hue /Amazon Alexa plus /Osram Lightify /IKEA
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Dimmable0-10V/Triac/Dali/Bluetooth/Wireless Remote



30W 35W 40W 3300lm Casabi Zigbee lLED Track Lighting Feature

1. External driver design, fast heat dissipation.

2. 30W/35W, 20°/30°/45°/60°beam angel options.

3. High CRI, Ra80/97, better show commodities real color.

4. Support constant current RGBW lighting colors function.


30W 35W 40W 3300lm casabi zigbee led track lighting for shop

Branded Power Supply, Energy Saving, Long Life.

Use international brands such as TRIDONIC/PHILIPS/OSRAM/BOKE and other international power supply brands to drive the LEDs and ensure that the LEDs work at constant voltage and current. The efficiency of the power supply can reach 0.9, energy saving. Power factor can reach 0.99, the higher the power factor, the smaller the reactive power loss, the more energy efficient the power supply. Harmonics are less than 7%, the pollution to the grid is small. Quality power supply can improve the efficiency and service life of the whole lamp.


30W 35W 40W 3300lm casabi zigbee led track lighting for shop

The Power Supply is Separated from the Lamp Body.

As the power supply itself generates a certain amount of heat, it makes the heat on the LED bead lamp increase. If the heat dissipation problem is not solved, it will make the temperature of the LED bead lamp rise, resulting in its luminous efficiency being reduced and its service life being shortened. At the same time, the integrated design of the power supply and the lamp will make the overall heat of the LED bead lamp uneven, all these factors will lead to fatigue and early failure of the lamp and affect its life. By taking the way of separating the power supply from the lamp body, the temperature of the whole lamp is evenly distributed, which can well solve the heat dissipation problem of the lamp and prolong the service life of the lamp.


30W 35W 40W 3300lm casabi zigbee led track lighting for shop

Supporting Wired or Wireless Control of RGBW Lighting.

Track Light C93 supports custom RGBW lighting, RGB-COB products are based on intelligent adjustable colour temperature lighting, incorporating RGB colourful elements, combined with wired or wireless multi-intelligent control system, through the program code, control the light colour change of the light, intelligent and personalised combination, to achieve normal white lighting, ambient lighting and light and shadow sound combination effect, to achieve full colour, multi scenes of high-end lighting.







Application:

Englumia C106 led spotlight track lighting can be omni-directional dimming, channel installation, without ceiling, low cost, can be moved freely, can change the direction of light irradiation, light with the object, for the lighting environment for shopping mall illumination, color temperature, light source color index has a scientific definition and according to the requirements of more accurate measurement,  It can not only solve the basic lighting but also highlight the lighting requirements of key projection, better heat dissipation, less light decay, longer life, is the best choice for lighting effect, can be used in shopping malls, clothing stores, 4S shops and other commercial places.

30W 35W 40W 3300lm casabi zigbee led track lighting for shop
