5700k 95Ra specialled track light for car shop lighting

  • General Information
  • test

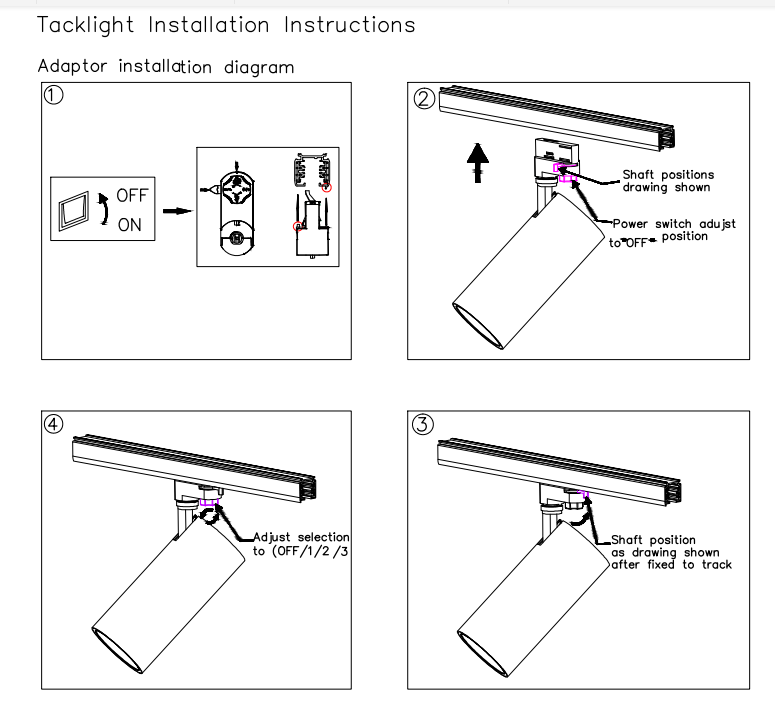

  • Installation
  • Download

General Information

Power 30W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack(9011)/White(9016)
Housing Size90x200mm
Light Source BrandCitizen/Luminus COB
CCT5700K
CRI 95Ra
Driver BrandTridonic/Osram/Philips/Boke
Beam Angle15/24/38/60° Reflector
UGR19
Warranty5years
Track Adapter 2/3/4/6wires
IP ClasssIP20
Qty/Cartons12Pcs/CTN GW16Kg
Carton Size42*32*31cm


Operating and Electrical

Power 30W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Dimmable0-10V/Triac/Dali/Push/Bluetooth/Wireless Remote


Decription

We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.


 Temperature Test

philip tridonic lifud 30w led track light

Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led juncton temperature is 150℃


 LM21&LM80

philip tridonic lifud 30w led track lightphilip tridonic lifud 30w led track light

5700k 95Ra specialled track light for  car shop lighting
