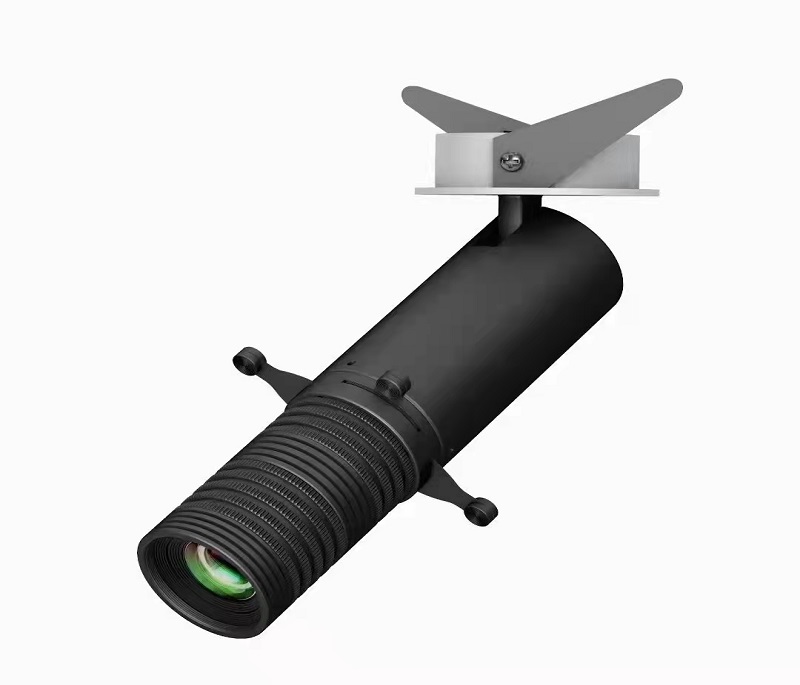

shapeable zoomable30w led tracklight lighting application

  • General Information
  • test
  • Installation
  • Download

General Information

Power 30W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011) / White (9016)
Housing Size60x255 mm
LIGHT Source BrandCitizen/luminus/  COB
CCT3000k/4000k /5000k
Driver Brandtridonic /Osram/philips/Boke
Beam AngleZoomable 30-40D &shapeable
UGR15
Warranty5years
Track Adapter 2/3/4/6 Wires
IP ClasssIP20

Lighting Feature

PowerCCT (Nom)Color Rendering IndexSDCMNOM Luminous Flux (Efficient )Light Decay (10000hs)
30W3000KCRI>80<3750LM(25lm/w)<3%
CRI>90<3510lm(17m/w)<3%
4000KCRI>80<3840LM(28lm/w)<3%
CRI>90<3600lm(20lm/w)<3%


Operating and Electrical

Power 30W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Dimmable 0-10v/Triac/Dali


Decription

We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90 tracklight.this model can change beam angles and light shape. Our tracklight also can do 0-10v/triac /DALI dimmable . Normally  we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.

Temperature Test

philip tridonic lifud 30w led track light

Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led juncton temperature is 150℃


LIGHT LM21&LM80

philip tridonic lifud 30w led track lightphilip tridonic lifud 30w led track light

philip tridonic lifud 30w led track light
