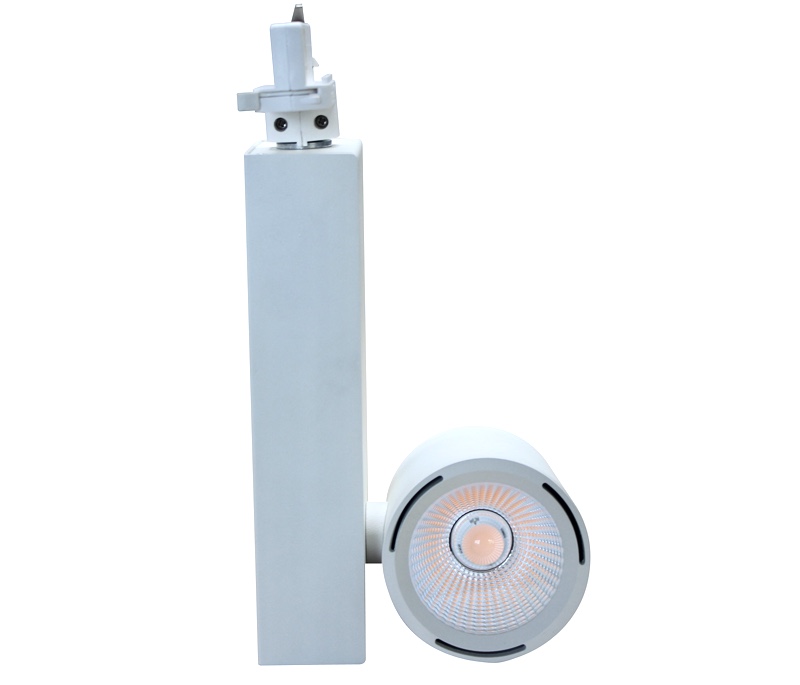

DMX512 RGBW/RGB 30w 35w LED Track Light

Full Product Code:PS-TL-30W35WRGBW-X16
  • General Information
  • Feature

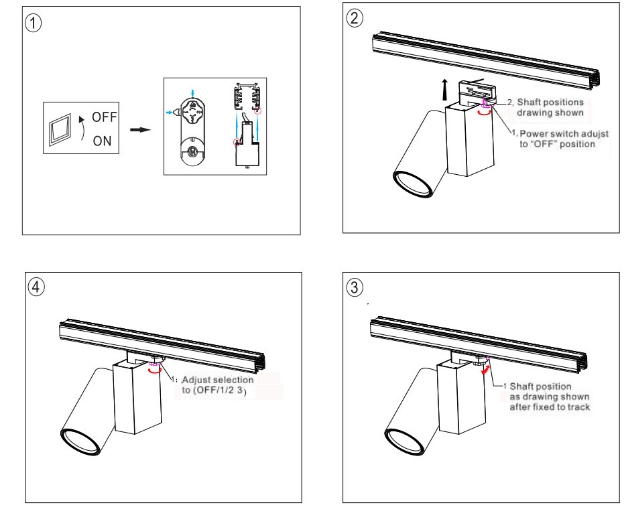

  • Installation
  • Download

General Information

Power 30W/35W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011) / White (9016)

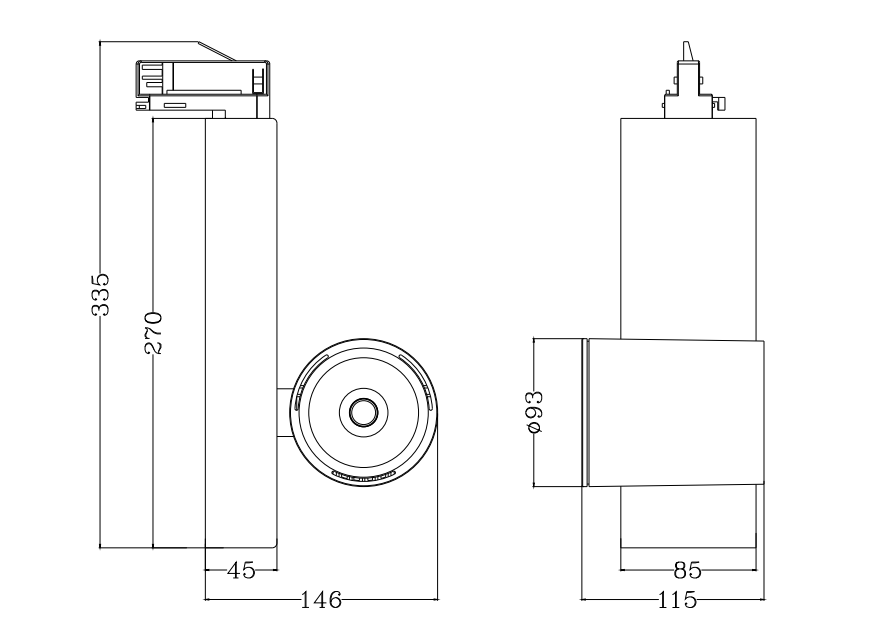

Housing SizeD93*W115*H270mm
CCTRGBW/RGB
Driver BrandLETCH
Beam Angle15/24/38/60° Reflector
UGR19
Warranty5years
Installation Method4/6wires
IP ClasssIP20


Operating and Electrical

Power 30W/35W
Voltage220-240v/50-60hz
PF>0.95
THD<15
FlickerFlicker free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Smart Controller DMX512/zigbee/tuya/philips hue/amazon Alexa plus/ Osram Lightify /IKEA/tuya

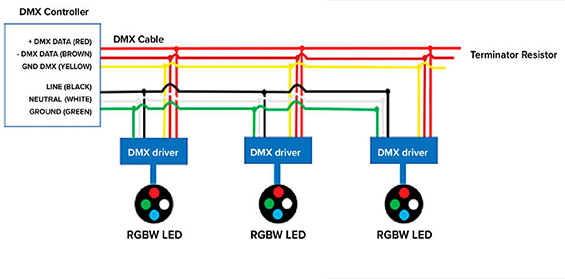

DMX512 6wire 3 phase track light.

Why choose 6 wire 3 phase track adaptor for DMX512 dimming ways? there will need extra 2 signal wires for DMX512 dimming ways, and the market for 6 wire 3 phase track systerm is relatively mature, and the compatibility is very good than 4wire 1phase track adaptor, and more safety, you can control track lights in each circuit individually.



What control ways for RGBW led track light we can provide?

RGBW LED COB Down light, used CRI>90 and flicker free driver, the color of light is very uniform, comfortable and healthy, the control ways have RF/DMX512/APP....., customer can adjust the beam angle and the color by arbitrary switching.




Temperature Test

philip tridonic lifud 30w led track light

Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led juncton temperature is 150℃


LIGHT LM21&LM80

philip tridonic lifud 30w led track lightphilip tridonic lifud 30w led track light
