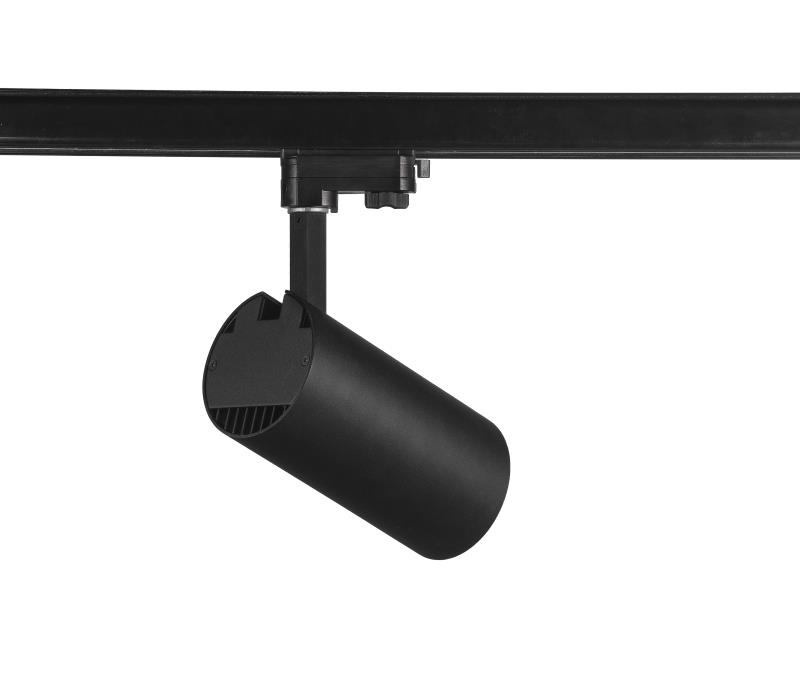

90ra Citizen COB 30W led tracklight bulb
Full Product Code:PS-TL-30W-X16A90- General Information
- Feature

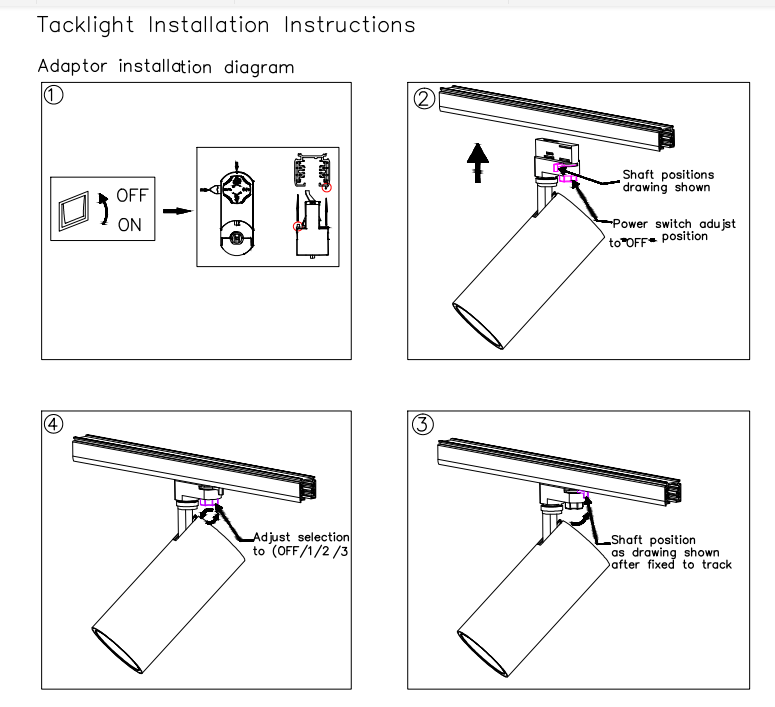

- Installation
- Download
Led track light 30w, with its adjustable system, it allows you to direct the light in any direction, allowing you to change the lighting according to your needs. Therefore, this focus is perfect for improving concrete elements. High with primary angle of 15º and secondary angle greater than 60º.
Led Track Light 30w General Information
| Power | 30W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |
| Housing Size | 90x200mm |
| Light Source Brand | Citizen/Luminus COB |
| CCT | 2700/3000/4000/5000/5700k |
| Beam Angle | 15/24/38/60° Reflector |
| UGR | 19 |
| Warranty | 5years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 12PCS/CTN GW14Kg |
| Carton Size | 42*32*31cm |
Lighting Feature
| Power | CCT(nom) | Color Rendering Index | SDCM | NOM Luminous Flux(Efficient ) | Light Decay(10000hs) |
| 30W | 3000K | CRI>80 | <3 | 3240LM(108lm/w) | <3% |
| CRI>90 | <3 | 2820lm(94lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 3420LM(114lm/w) | <3% | |
| CRI>90 | <3 | 3150lm(105lm/w) | <3% |
Operating and Electrical
| Power | 30W |
| Voltage | DC12-24V |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
Decription
As you know, Shenzhen powerstar technology limited company can produce the good quality tracklight. We are a good tracklgiht factory. Our company set sales and produce and research in one. We pay attention to research the high end tracklight for our customers. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.
Led Track Light 30w Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operatd at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS couldbe 120℃
The highest withstand temperature of led juncton temperature is 150℃
LM21&LM80

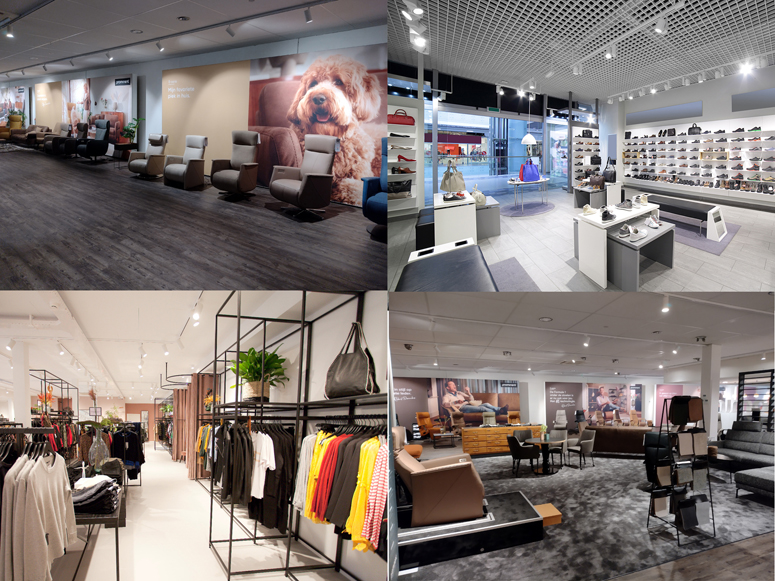

Application
