IP44 50w Downlight

Full Product Code:PS-DL-8'50W-A16
  • General Information
  • Feature
  • Installation
  • Download

Decription

We are a good downlight supplier in china.Our company set sales and produce and research in one.We pay attention to research the high end downlight for our customers.Our downlight export the downlight product  all over the world.Our main market is Europe.Our downlight factory have CE/RHOS/GS/TUV etc related certification.Our downlight  often be used in the commercial area like clothes shop /shopping mall /museum/supermarket/4s shop etc.Our company also can provide good solutations for your project.


General Information



Model PSDL12A163
Power 12w
Light SourceSMD3030
LIGHT Source BrandOriginal Philip or Osram
CCT2700/3000/3500/4000/5000/5700k
Driver BrandTridonic/Osram/Philips/Boke
Optics TypeDiffuser
Beam Angle90
Warranty5years
Test InformationTest ball, IES/Ldt
Storage TemperatureMinus40     65
Working TemperatureMinus20     45
IP ClasssIP44
Housing MaterialAL
Housing ColorWhite
ApplicationIndoor



Power and Size Available


Item Power Size Cut Hole
PSDL12A16312w110*53mm
95mm
PSDL15/20A16415/20w145*69mm
130mm
PSDL20/30A16620/30w190*86mm
170mm

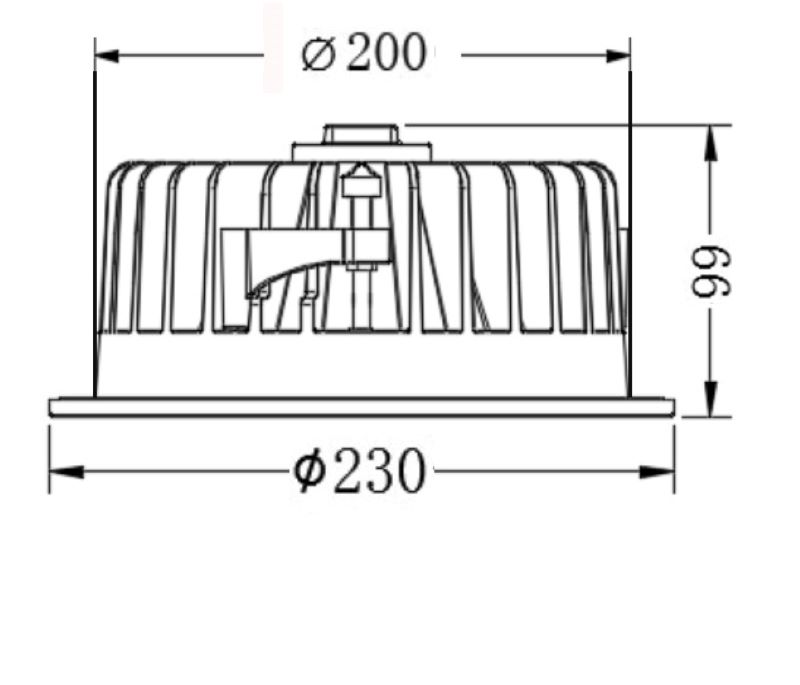

PSDL30/40/50A16830/40/50w230*99mm200mm

lighting Feature


PowerCCTCRISDCM Luminous Flux
12-50w3000KRa>80<3100lm/w
Ra>90<385lm/w
4000KRa>80<3102lm/w
Ra>90<387lm/w


Operating and Electrical


Power 12-50w
Voltage220-240v/50-60hz
PF>0.95
Power efficient0.88-0.91
THD<10/<15
FlickerYES/NO
CertificationTUV/SAA/CE/CB/ENEC/RoHS
Dimmable0-10V/Triac/dali/casmbi/tuya/zigbee/bluetoothmesh/dmx512/wifi/RF/2.4G
Life Time64000hrs

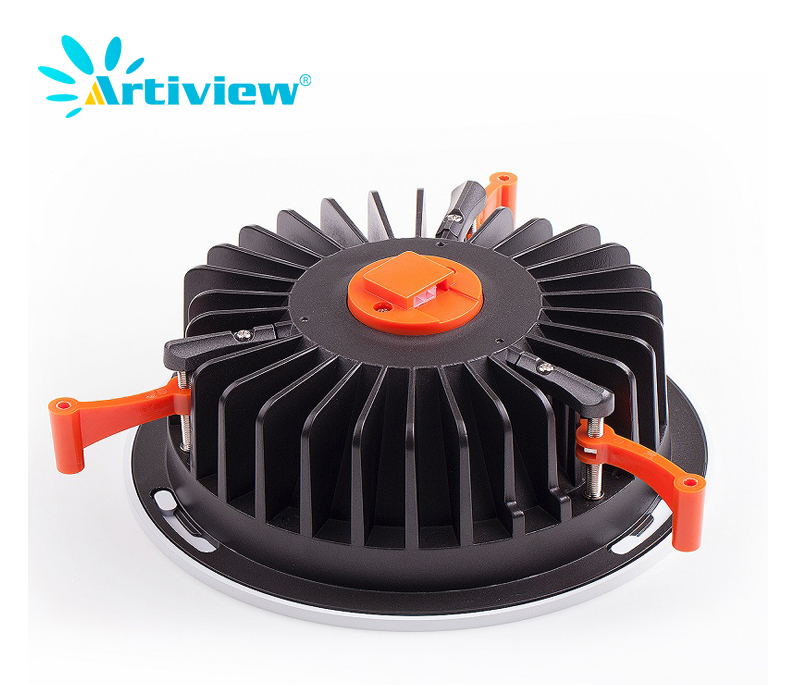

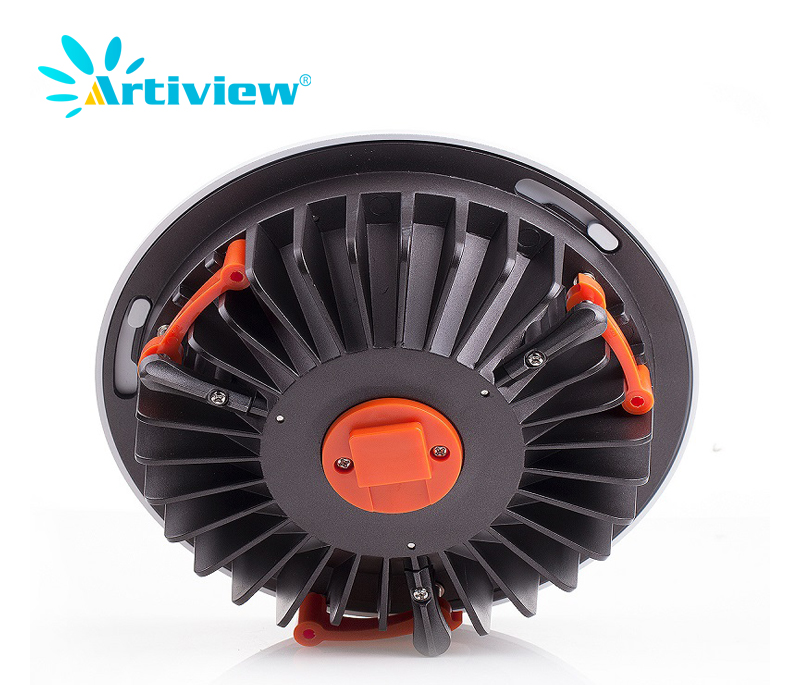

Ø Die-cast aluminum housing, good heat sink

Ø UGR test<19, no glare, friendly to your eyes

Ø CRI 80 and CRI 90 are available

Ø Light source can be 150lm/w, complete luminaire is 110-130lm/w

Ø TUV CE, CB, SAA and RoHs certified;

Ø 3″ , 4″, 6″ , 8″ inch are available;

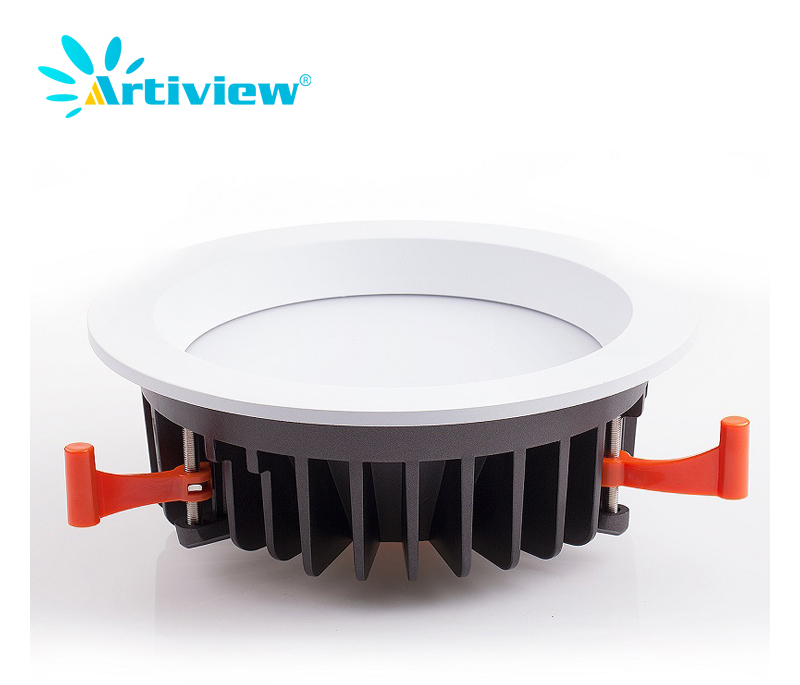

Ø PMMA diffuser with prism conical, soft and comfortable light output

IP44  50w DownlightIP44  50w Downlight


Recessed downlight have 3 inch 4 inch use recessed install .and bigger size like 160mm cut hole and 200mm cut hole we use three screw to fixed in the ceiling .lighting spot use frosted diffuser cover .So downlight can with soft light output


IP44  50w Downlight

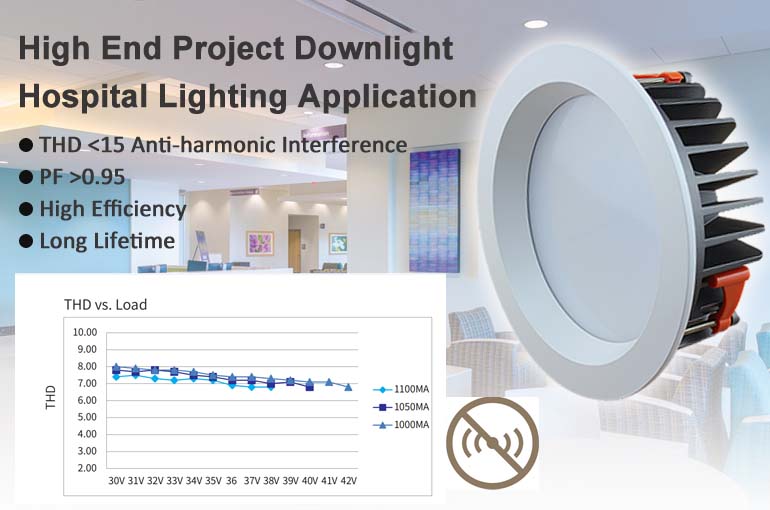

High end projet lighting downlight use famous chip philips osram smd 3030 chip .high light performance and uniform light output .lumen efficiency up to 120lm/w .Sdcm <3 Thd <15 flicker free driver along with lighting lamp .

IP44  50w Downlight

IP44  50w Downlight

This light can do 12-50w available . for some special lighting project require UGR less than 19 for government theater lighting solutions .we provide this lamp for it .we got good feedback from client .our light also can do multi-function dimmable options .like birghtness and cct tunable lighting effect by wireless smart dimmable control .





Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.

3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec  (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.

Diameter 190mm Five Years Warranty CE/RHOS Certification Flicker Free 30w

WARNING
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of  electric shock or light falling.



Power and Size Available:

Power/Watt

Size

Cutout Size

G.W(Kg)/pc

G.W/Carton (Kg)

Pcs/Carton

15w/20w

145*69mm

125mm

0.9Kgs

27Kg

30pcs

20w/30w

190*86mm

170mm

1.4Kgs

21Kg

15pcs

30w/40w/50w

230*99mm

210mm

1.9Kgs

19Kg

10pcs

Packaging

Including the details as below:

Driver: 1pc

Downlight: 1pc

Catologue: 1pc

Manual: 1pc

Diameter 190mm Five Years Warranty CE/RHOS Certification Flicker Free 30w
