30w led track spotlight smart cob track lamp

Full Product Code:PS-TL-30W/35W-X16B90
  • General Information
  • Feature
  • Installation
  • Download

Description

Powerstar is an professional led tracklight manufacturer, we have 12 years professional expenriences in led industry, and we pass the CE/RHOS/CB/SAA/TUV certification for our led track spotlights.


For this 30W/35W led track lighting fixture with external driver design, good heat dissipation, and we also can provid different smart control solutions for track led light, Triac/0-10/Dali/DMX512/Tuya/Zigbee/Casambi........


General Information


Power 30W/35W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack(9011)/White(9016)
Housing Size90x200mm
Light Source BrandCitizen/Cree/Luminus COB
CCT2700/3000/3500/4000/5000/5700K
Driver BrandTridonic/Osram/Philips/Boke
Beam Angle15/24/38/60° Reflector
UGR19
Warranty5years
Track Adapter 2/3/4 wires
IP ClasssIP20
Qty/Cartons12Pcs/CTN GW18Kg
Carton Size51*42*27cm


Lighting Feature

Power  CCTCRISDCMLuminous Flux
30W/35W3000KCRI>80<3103lm/w
CRI>90<398lm/w
CRI>97<397lm/w
4000KCRI>80<3103lm/w
CRI>90<398lm/w
CRI>97<397lm/w


Operating and Electrical

Power 30W/35W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS
DimmableTriac



35/35W LED Track Light Features

1.Wattage available to 50W and 5500Lm output light efficiency.

2. 15°/24°/38°/60° lighting beam angle for options.

3.External driver design, fast heat dissipation.

4.Citizen/Luminus/Cree/Bridgelux brand chip.

5.5 years warranty.

30w led track spotlight smart cob track lamp

Good heat dissipation performance to extend the life of the lamp.

Although the LED does not generate much heat, but the built-in chip is very afraid of heat. Only when the heat is dispersed, the chip can work steadily, otherwise the heat is concentrated inside the light source to affect the work of the lamp. The chip emits heat, which is transferred through the substrate to the heat sink underneath, and the heat sink then dissipates the heat through the heat sink surface where the fins are located. So the size of the heat sink and the area of the fins determine its ability to dissipate heat in the end. In order to increase the area, it is generally made into a variety of shapes such as column, mesh, etc. This lamp is made of international standard die-casting aluminum, which is good for heat dissipation and prolong the service life of the lamp.

30w led track spotlight smart cob track lamp


Different color temperatures can be customized according to the characteristics of the goods to better highlight the value of the goods.

Color temperature is the emotional expression of the light environment, is the catalyst of the atmosphere, more reflective of the value and use of space. Color temperature is also the basis of lighting, which can highlight the texture of goods more and increase customers' desire to buy. Different color temperatures will create different atmospheres, for example, warm colors can create a warm, romantic and comfortable atmosphere, while cold colors will give the picture a cold feeling. The color temperature of this lamp covers from 2700K-5700K, and can also be customized according to the different qualities of the goods special color temperature.

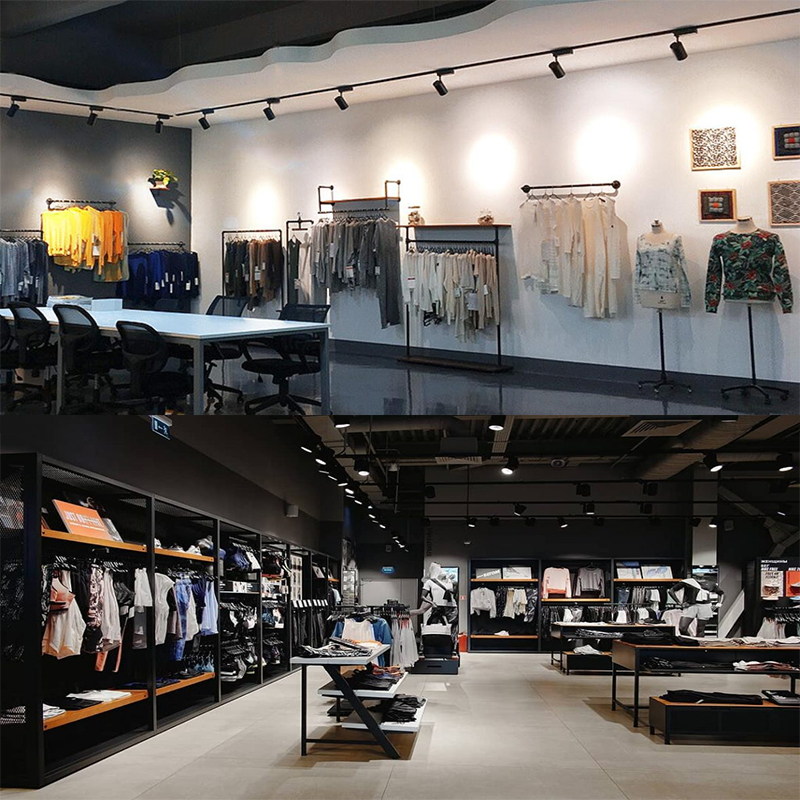

Application:

The 30/35W LED track light system breaks through most of the standard alternative light source forms on the market, the power is limited, the total luminous flux is not enough, the color rendering is not good, the lighting quality can not be guaranteed and other problems, 45W power luminous efficiency can reach 110lm/ W, luminous flux is nearly 5000lm, brightness fully meet the needs of most commercial lighting, light color consistency is good,  Color tolerance is less than 3, the same batch of goods do not have to worry about color difference, the production process is completely in accordance with the ISO9001 standard test, do not have to worry about quality problems, high light efficiency, good color rendering, low brightness, long life, used in shopping malls, supermarkets, 4S shops, fashion shops and other commercial lighting places.

30w led track spotlight smart cob track lamp
