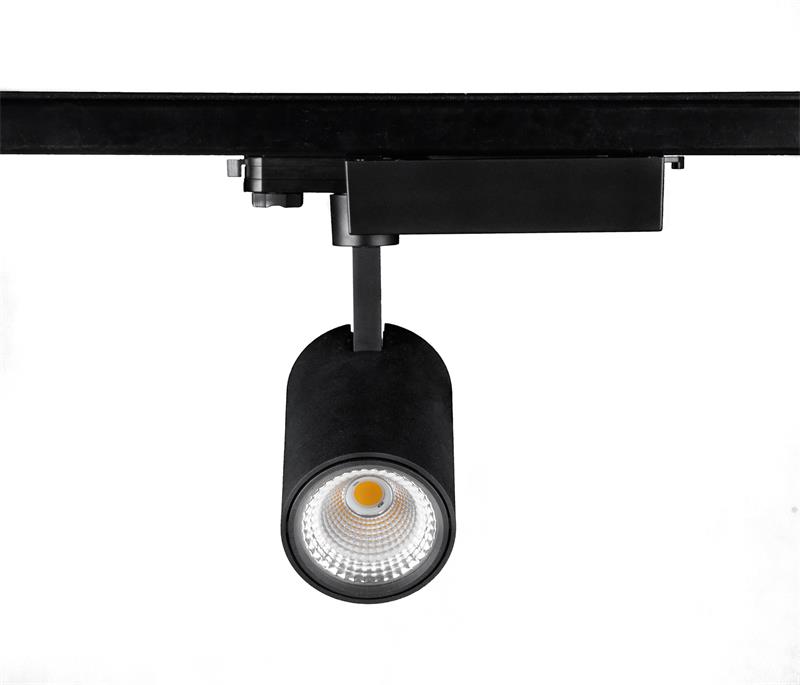

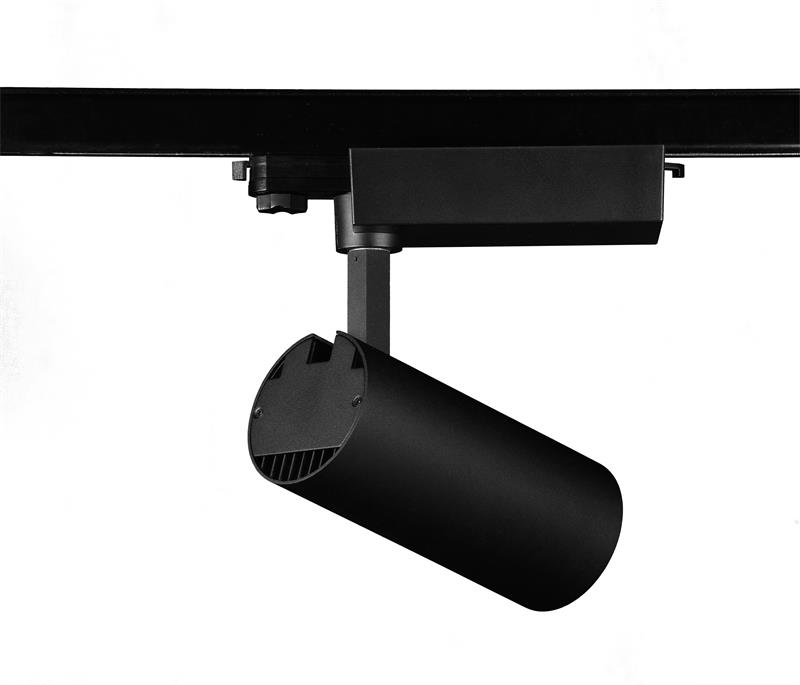

50w Die-casting aluminum led track lamp
Full Product Code:PS-TL-50W-X16-B90- General Information
- Feature

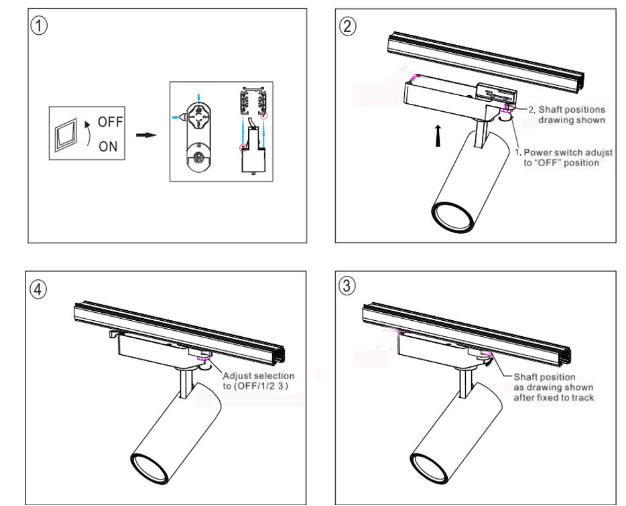

- Installation
- Download
Description
We are a profession led track lgiht factory with ISO9001 quality certificate we have CE/RHOS/SAA/TUV/CB etc related certification for our all track spotlights.
all led track lighting fixtures we use dia-casting aluminum, the heat dissipation is very good, the surface is treated with dusting powder, simple and generous, high temperature resistance, corrosion resistance, for this type track led light with external driver, the biggest watt we can do is 50W.
General Information
| Power | 50W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |

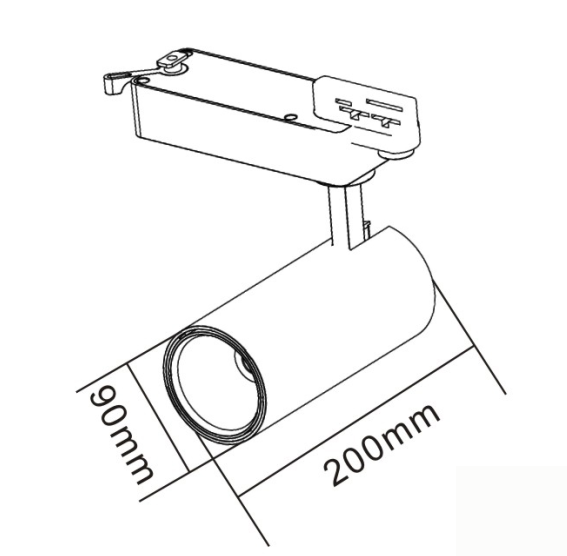

| Housing Size | 90x200mm |
| Light Source Brand | Citizen/Cree/Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700K |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Beam Angle | 15/24/38/60° Reflector |
| UGR | 19 |
| Warranty | 5 years |
| Track Adapter | 2/3/4 wires |
| IP Classs | IP20 |
| Qty/Cartons | 12Pcs/CTN GW18Kg |
| Carton Size | 51*42*27cm |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 50W | 3000K | CRI>80 | <3 | 5921LM(118lm/w) |
| CRI>90 | <3 | 5072lm(101lm/w) | ||
| CRI>97 | <3 | 4351lm(87lm/w) | ||
| 4000K | CRI>80 | <3 | 6072LM(121lm/w) | |
| CRI>90 | <3 | 5150lm(103lm/w) | ||
| CRI>97 | <3 | 4460lm(89lm/w) |
Operating and Electrical
| Power | 50W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | Triac |

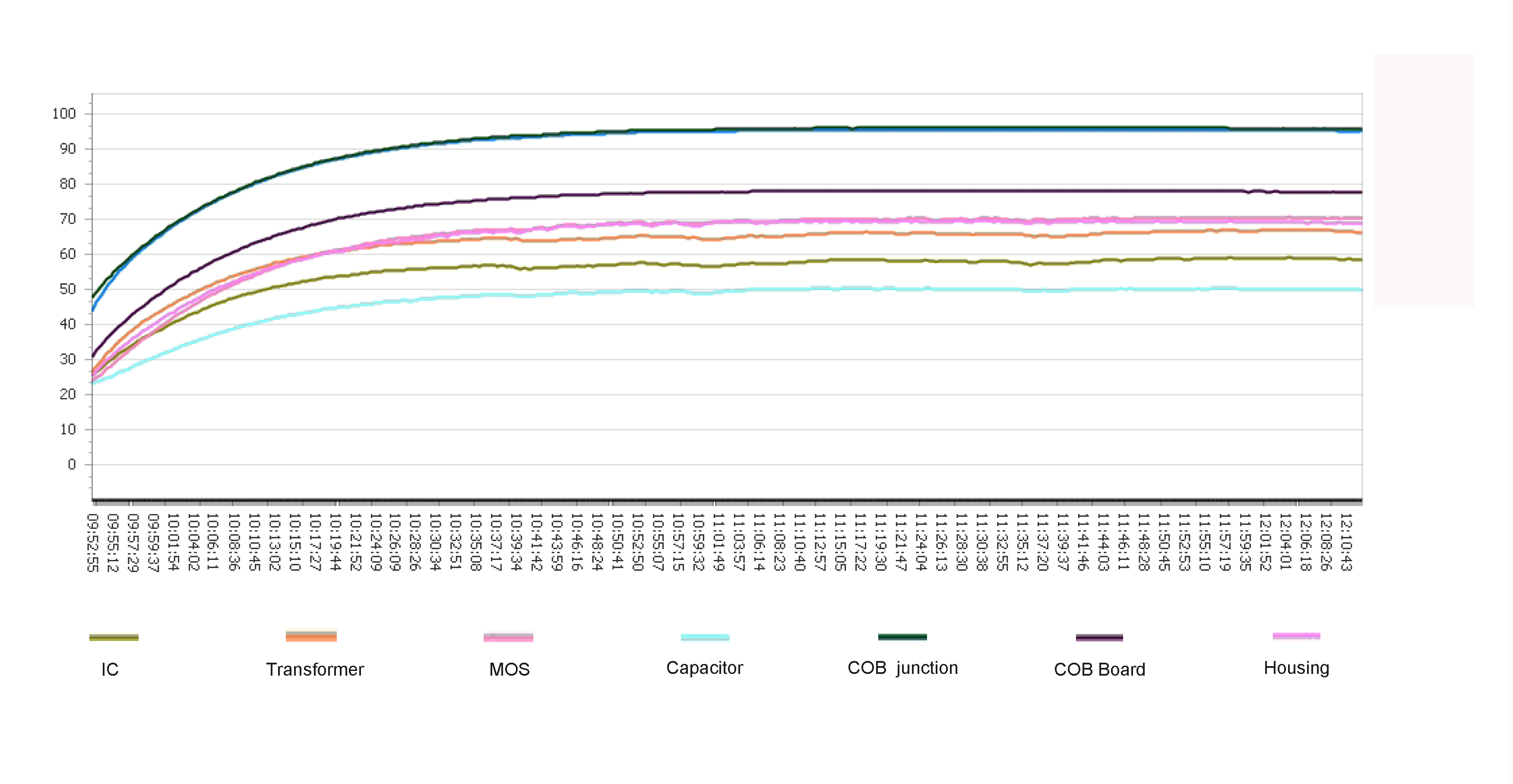

Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will bedoubled whenever the temperature drops 10℃
The highest withstand temperature of IC ,MOS could be 120℃
The highest withstand temperature of led junctions temperature is 150℃

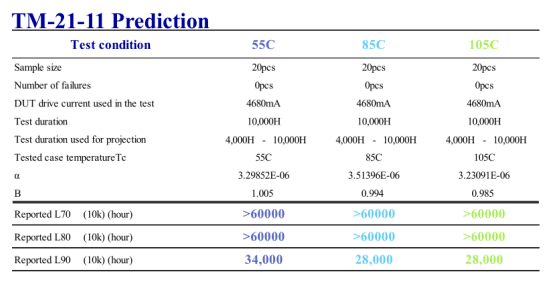

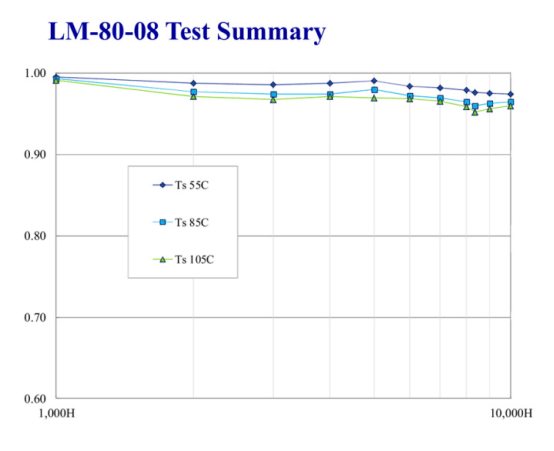

LM21&LM80
