  • 7W Spot LED SMD Downlight
  • 7W Spot LED SMD Downlight

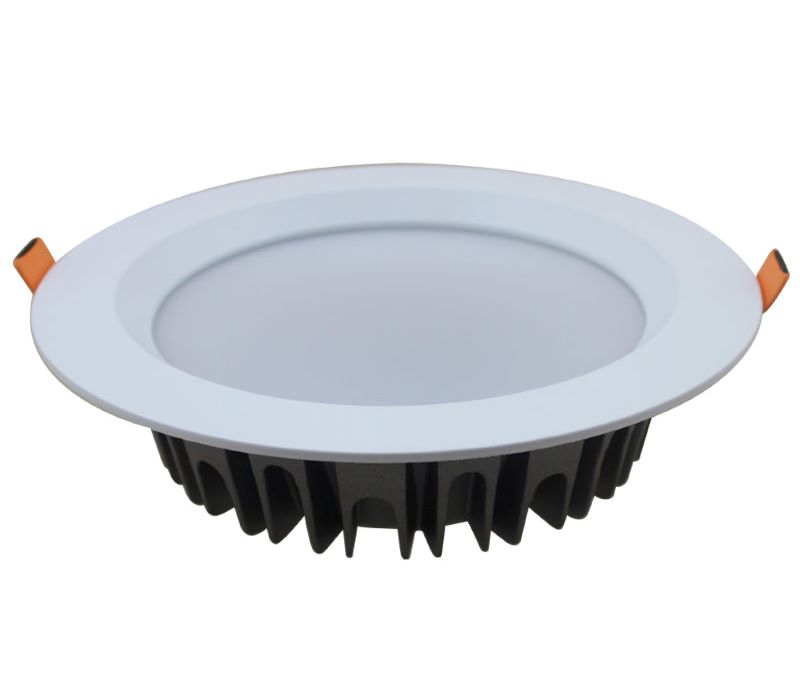

7W Spot LED SMD Downlight

Full Product Code:PS-DL-3'7W-A6
  • General Information
  • Feature
  • Installation
  • Download

Decription

Shenzhen powerstar technology limited company is an good downlight supplier in china .This type downlight we designed for project .we set sales and produce and research in one .Our downlgiht often use citizen chip.Our downlight  use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty .And our donwlight has passed TUV/SAA/CE/CB/ENEC/RoHS/GS certification.You can trust my downlight quality.


General Information

Power 7w
Housing materialAL
housing Colorwhite
Cut hole90-95mm
Housing size105*54mm
Housing Max temperature (nom)65
LIGHT source SMD2835
CCT2700/3000/3500/4000/5000/5700k
Driver BrandTridonic/Osram/Philips/Boke
Optics typeDiffuser
Beam angle90
Warranty5 years
Test informationtest ball, IES/Ldt
Storage temperatureminus40     65
Working Temperateminus20     45
IP ClasssIP44
Applicationindoor


Lighting Feature

powerCCTCRISDCMLuminous Flux
7w3000KCRI>80<3672LM(96lm/w)
CRI>90<3581lm(83m/w)
4000KCRI>80<3693LM(99lm/w)
CRI>90<3588lm(84lm/w)


Operating and Electrical

Power 7w
Voltage220-240v/50-60hz
PF>0.95
Power efficient0.88-0.91
THD<10/<15
FlickerYES/NO
CertificationTUV/SAA/CE/CB/ENEC/RoHS/GS
Dimmable0-10V/Triac/dali/casmbi/tuya/zigbee/bluetoothmesh/wifi/2.4G/RF/DMX512
Life Time64000hrs
