12w led downlight lighting applicaiton

Full Product Code:PS-DL-4'12W-A21
  • General Information
  • Feature

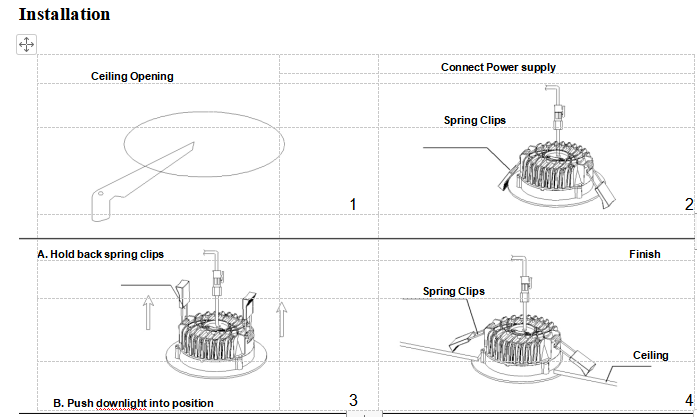

  • Installation
  • Download

Decription

Shenzhen powerstar technology limited company is an good slim downlight supplier in china .This type downlight we designed for project.We set sales and produce and research in one.Our downlgiht often use citizen chip.Our downlight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide 3 years warranty.And our donwlight has passed the CE/RHOS certification.You can trust my downlight quality.


General Information



Power 9-30w
LIGHT Source SMD2835
CCT2700/3000/3500/4000/5000/5700k
Driver BrandTridonic/Osram/Philips/Boke
Optics TypeDiffuser
Beam Angle90
Warranty5 years
Test InformationTest ball, IES/LdtD230H*38mm
Storage TemperatureMinus40     65
Working TemperatureMinus20     45
IP ClasssIP44
Housing MaterialAL
Housing ColorWhite
ApplicationIndoor



Power and Size Available


Item Power Size Cut Hole
PSDL9A2139wD106*H34mm95mm

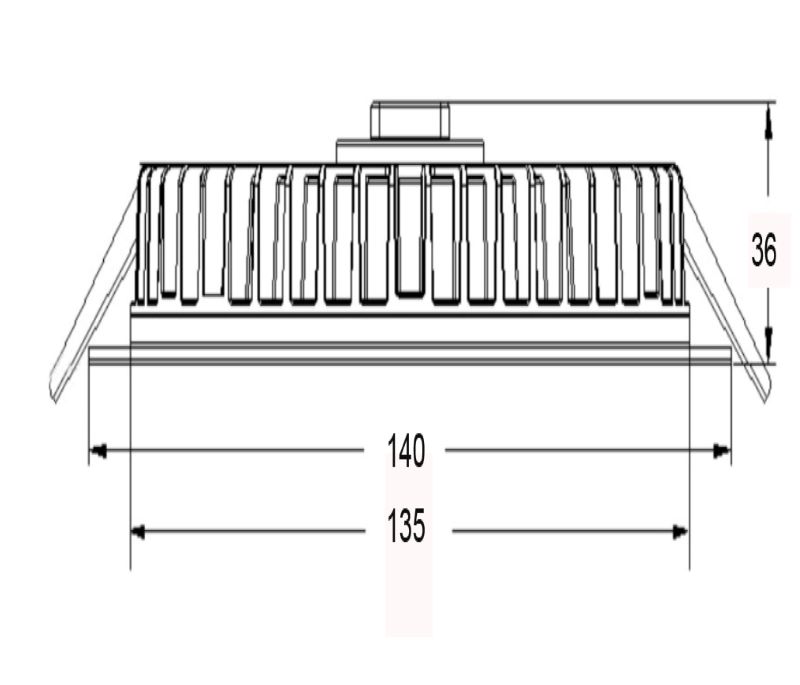

PSDL12A21412wD140*H36mm135mm
PSDL20A21620wD180*H38mm160mm
PSDL30A21830wD230H*38mm200mm


Lighting Feature


PowerCCTCRISDCMLuminous Flux
9-30w3000KRa>80<3105lm/w
Ra>90<390m/w
4000KRa>80<3107lm/w
Ra>90<391lm/w


Operating and Electrical


Power 9-30w
Voltage220-240v/50-60hz
PF>0.95
Power Efficient0.88-0.91
THD<10/<15
FlickerYES/NO
CertificationTUV/SAA/CE/CB/ENEC/RoHS/GS
Dimmable0-10V/Triac/dali/zigbee/casmbi/tuya/bluetoothmesh /dmx512/2.4G/WIFI/RF
Life Time64000hrs



Slim panel downlight height less 40mm ,looks great in the ceiling

High end chip smd philips chip .SDCM less than 3 ,lumen up to 110lm/w

Flicker free driver , no flicker ,protect your eyes

Mulit function Dimmable like 2.4G ,wifi,bluetooth ,zigbbee etc

PMMA diffuser cover ,soft light and comfortable atmosphere

12w led downlight lighting applicaiton

Slim downlight in kicture and living room .all guestes would like to dimmable downlight .you can dimmable brightness changeable at daytime and night .

12w led downlight lighting applicaiton


How to choose recessed downlight cct for different lighting application .for kitchen powerstar lighting supplier advise use 4000k ,when you cooking you will feel more active and clear view .for Bedrooom .we all choose warm cct 2700-3000k ,in that lighting space you can have a good rest .for living room .we stay there for working and have a dinner .So we need to use cool white 5000k to light it .

12w led downlight lighting applicaiton

 Silm ultra think downlight ,recessed downlight lamp height just 34mm , light has no flikcer ,no glare ,soft lighting , also can do birghtness dimmer .do triac dimmable /0-10v dimmable /dali dimmable .



sdcm <3 thd <15 thd <10 12w led downlight lighting applicaiton
