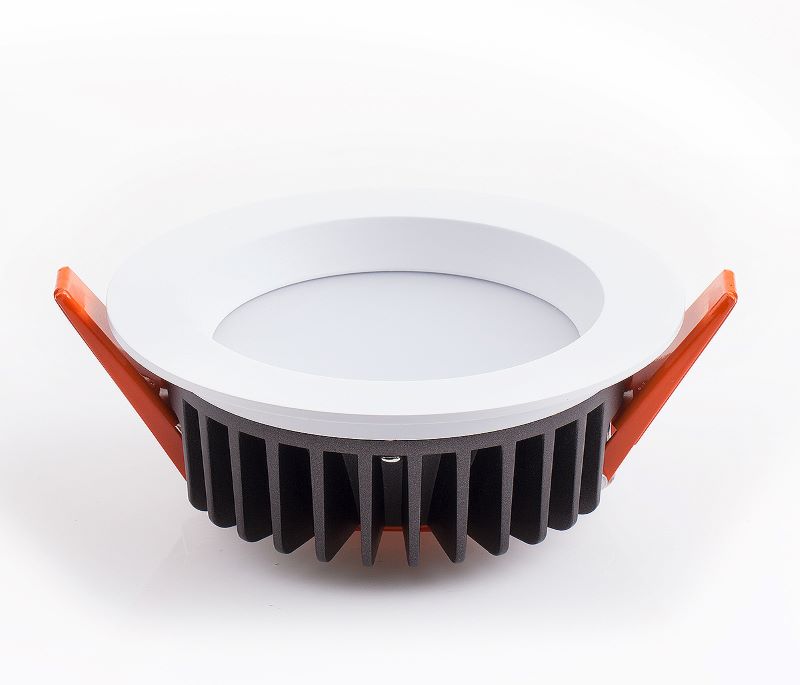

Hotel Project 15w LED Downlight

Full Product Code:PS-DL-4'15W-A16
  • General Information
  • Feature
  • Installation
  • Download

General Information

Power 15w
Housing MaterialAL
Housing Colorwhite
Cut Hole125-130mm

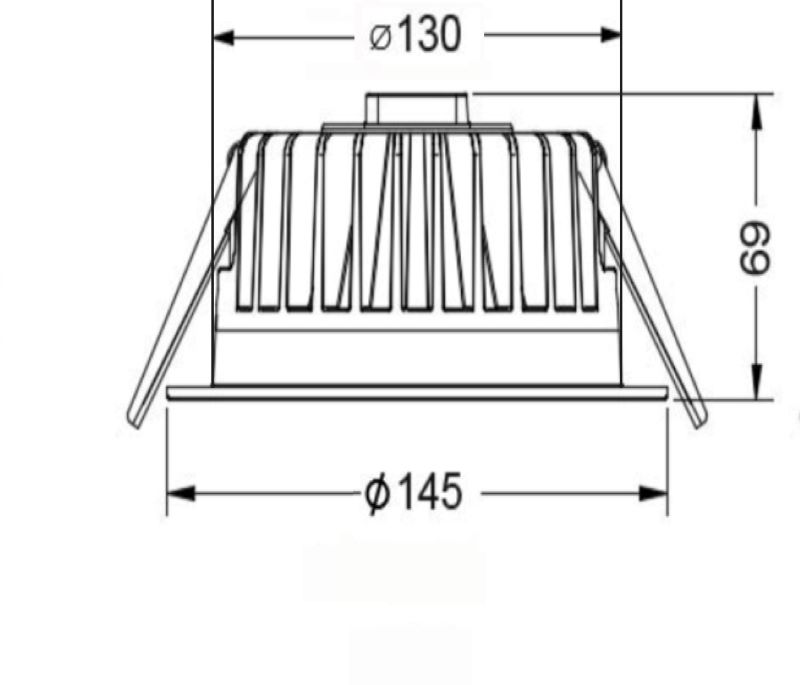

Housing Size145*69mm
Housing Max Temperature (nom)65
lighting Source Brand Original philip /osram smd
LIGHT Source SMD3030
CCT2700/3000/3500/4000/5000/5700k
Driver BrandTridonic/Osram/Philips/Boke
Optics TypeDiffuser
Beam Angle90
Warranty5 years
Test Informationtest ball, IES/Ldt
Storage Temperatureminus40     65
Working Temperateminus20     45
IP ClasssIP44
Applicationindoor
Qty/Cartons20PCS
Carton Size46*34*36
GW/NW18.5kg/14.5kg


Lighting Feature

PowerCCTCRI SDCMLuminous Flux
15w3000KRa>80<31500LM(100lm/w)
Ra>90<31200lm(80lm/w)
4000KRa>80<31530LM(102lm/w)
Ra>90<31305lm(87lm/w)


Operating and Electrical

Power 15w
Voltage220-240v/50-60hz
PF>0.95
Power efficient0.88-0.91
THD<10/<15
FlickerYES/NO
CertificationTUV/SAA/CE/CB/ENEC/RoHS/GS
Dimmable0-10V/Triac/dali/casmbi/tuya/zigbee/bluetoothmesh/dmx512/wifi/2.4G
Life Time64000hrs


Decription

We are led downlight factory in china. We have 8 years professional expenriences in led industry. We can provide good services and downlight product for our guests. And we can make CRI80/90 downlight. Use High CRI special downlight can make the objects looks more real and beautiful.Our downlight has passed TUV/SAA/CE/CB/ENEC/RoHS/GS certification. You can trust my downlight quality.

LED we use Philip/Osram SMD LED with high brightness and low light decay, passed LM80.

THD<15 SDCM<3 IP44 TUV/SAA/CE/CB/ENEC/RoHS/GS Certification High Quality LED Project Type DownlightTHD<15 SDCM<3 IP44 TUV/SAA/CE/CB/ENEC/RoHS/GS Certification High Quality LED Project Type Downlight



Test with 220mA in different continuous working time :

THD<15 SDCM<3 IP44 TUV/SAA/CE/CB/ENEC/RoHS/GS Certification High Quality LED Project Type Downlight





Driver lifetime & LED light decay rate

LED Downlight A16LED Downlight A16

Temperature

● The testing is operated at 25°C

● The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C

● The highest withstand temperature of IC, MOS could be 120°C

● The highest withstand temperature of LED junction temperature is 150°C

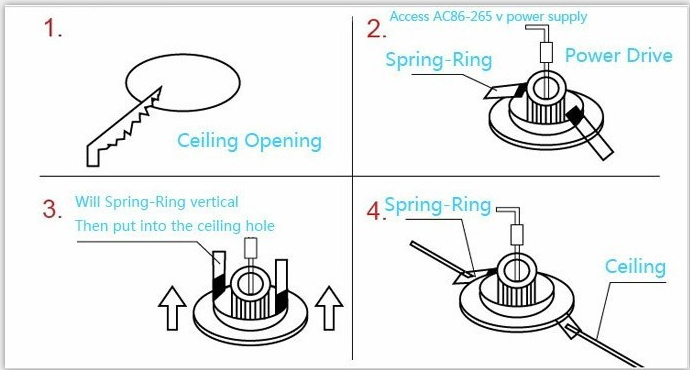

Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.

3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec  (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.

CRI80/90Ra Cut Hole 125/130mm Did Csting Aluminum Hotel Project Special Use 15w LED Downlight





WARNING


*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of  electric shock or light falling.



Power and Size Available:

Power/Watt

Size

Cutout Size

G.W(Kg)/pc

G.W/Carton (Kg)

Pcs/Carton

15w/20w

145*69mm

125mm

0.9Kgs

27Kg

30pcs

20w/30w

190*86mm

170mm

1.4Kgs

21Kg

15pcs

30w/40w/50w

230*99mm

210mm

1.9Kgs

19Kg

10pcs

Packaging

Including the details as below:

Driver: 1pc

Downlight: 1pc

Catologue: 1pc

Manual: 1pc

Diameter 190mm Five Years Warranty CE/RHOS Certification Flicker Free 30w
